Hilti TE 2-A22 Operating Instructions

*2023934*
2023934 English 5
3 Description

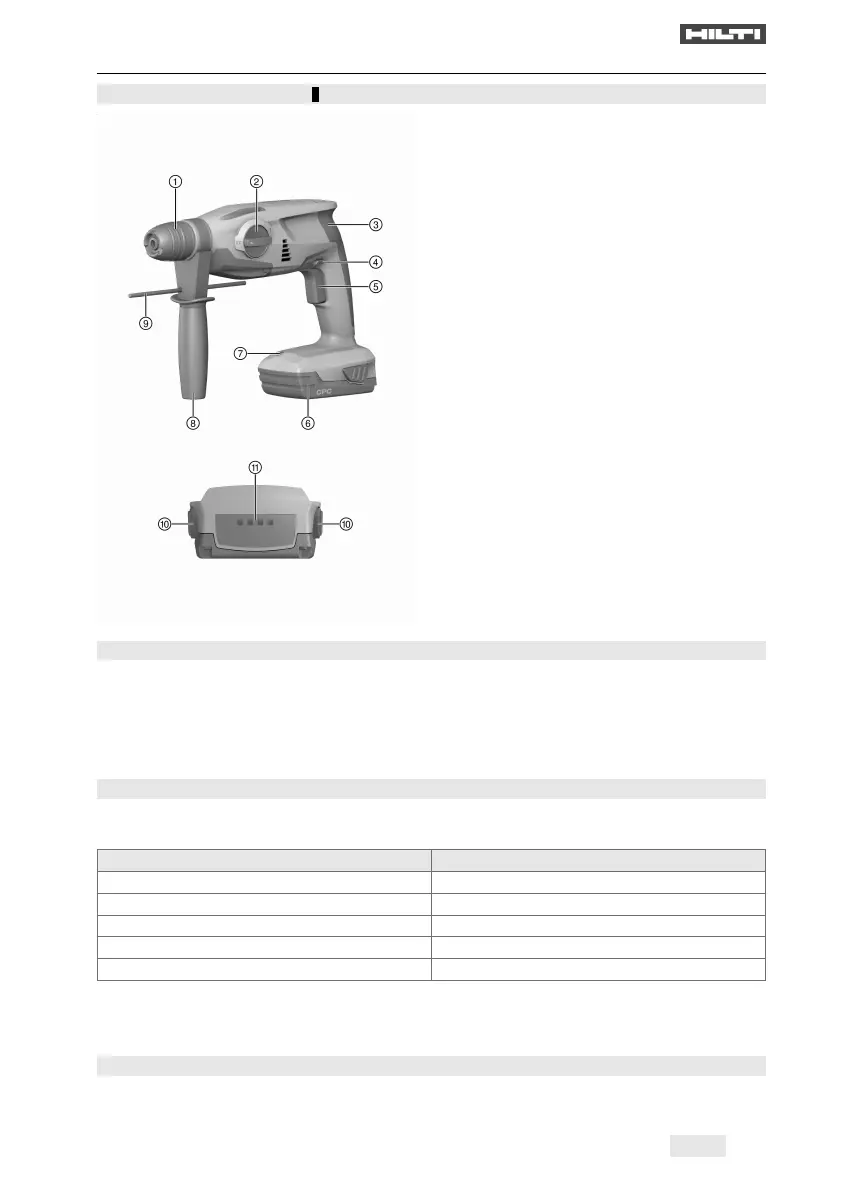

3.1 Overview of the product 1
@
TE-C Click chuck
;
Function selector switch
=
Grip
%
Forward / reverse selector switch with safety
lock
&
Control switch
(
Battery
)
Light to illuminate the work area
+
Side handle
§
Depth gauge
/
Release buttons with additional function
(charge status display activation)
:
Battery charge status display
3.2 Intended use
The product described is a battery-powered rotary hammer. It is designed for hammer drilling in concrete
and masonry, for drilling in steel, wood and masonry and for driving and removing screws.
• Use only Hilti lithiumion batteries of the B 22 series with this product.
• Use only Hilti-approved battery chargers to charge these batteries. More information is available from
your Hilti Store or from www.hilti.group
3.3 Lithiumion battery status display
When the lithium-ion battery is used the charge status can be displayed by tapping one of the battery release
buttons.
Status Meaning
4 LEDs light. Charge status: 75 % to 100 %
3 LEDs light. Charge status: 50 % to 75 %
2 LEDs light. Charge status: 25 % to 50 %
1 LED lights. Charge status: 10 % to 25 %
1 LED blinks. Charge status: < 10 %
Indication of the charge status is not possible while the power tool is in operation or immediately after
operation. If the battery charge status LEDs flash, please refer to the information given in the Troubleshooting
section.
3.4 Items supplied
Rotary hammer, side handle, depth gauge, operating instructions.
The TE DRS-S dust removal module greatly reduces dust emissions and is available as an accessory.

Hilti TE 2-A22 Specifications

General

Power source	Battery
Battery voltage	21.6 V
Impact rate	5040 bpm
Rated speed (max)	1090 RPM
Impact energy (max)	1.5 J
Vibration level (hammer drilling)	15 m/s²
Product color	Black, Red
Built-in light	Yes
Noise level	92 dB

Weight and Dimensions

Weight	2700 g
