TE 50AVR
Ambient temperature for operation
1 ℉ …140 ℉
(−17 ℃ …60 ℃)
Ø hammer drill bits
1/2 in …1 1/4 in
Ø hammer drill bits
12 mm …32 mm
Ø drill bits for wood
1/4 in …1 3/8 in
Ø drill bits for wood
6 mm …35 mm
Ø drill bits for metal
1/4 in …1/2 in
Ø drill bits for metal
6 mm …13 mm
5 Operation
5.1 Preparations at the workplace
CAUTION
Risk of injury! Inadvertent starting of the product.
▶ Unplug the supply cord before making adjustments to the power tool or
before changing accessories.
Observe the safety instructions and warnings in this documentation and on
the product.

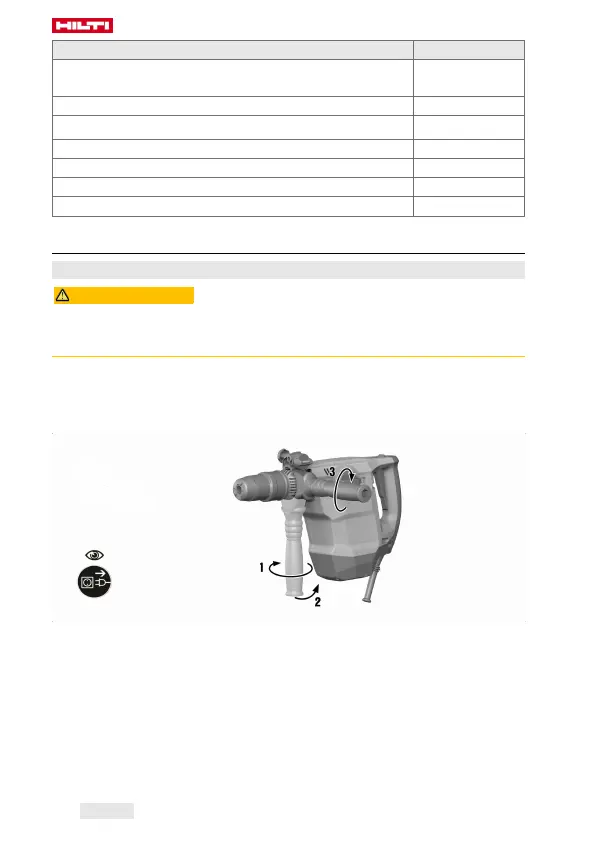

5.1.1 Fitting the side handle
1. Release the side handle clamping band by turning the handle grip.
2. Slide the side handle clamping band over the chuck from the front and
into the recess provided.
3. Bring the side handle into the desired position.
4. Tighten the side handle clamping band by turning the handle grip.
Printed: 14.12.2018 | Doc-Nr: PUB / 5283568 / 000 / 03

Hilti TE 50-AVR Specifications

General

Drilling	Yes
Chuck type	SDS Max
Product color	Black, Red
Country of origin	Germany
Impact rate	3180 bpm
Rated speed (max)	360 RPM
Impact energy (max)	6 J
Vibration level (hammer drilling)	9 m/s²
Drilling diameter in concrete (max)	40 mm
Optimum drilling diameter (concrete)	16 - 32 mm
Input power	1100 W
Power source	AC
Power plug type	Type C
Noise level	108 dB
Quantity per shipping (inner) case	1 pc(s)

Weight and Dimensions

Weight	6100 g
Package depth	3456 mm
Package width	2000 mm
Package height	4500 mm
Package weight	4500 g
