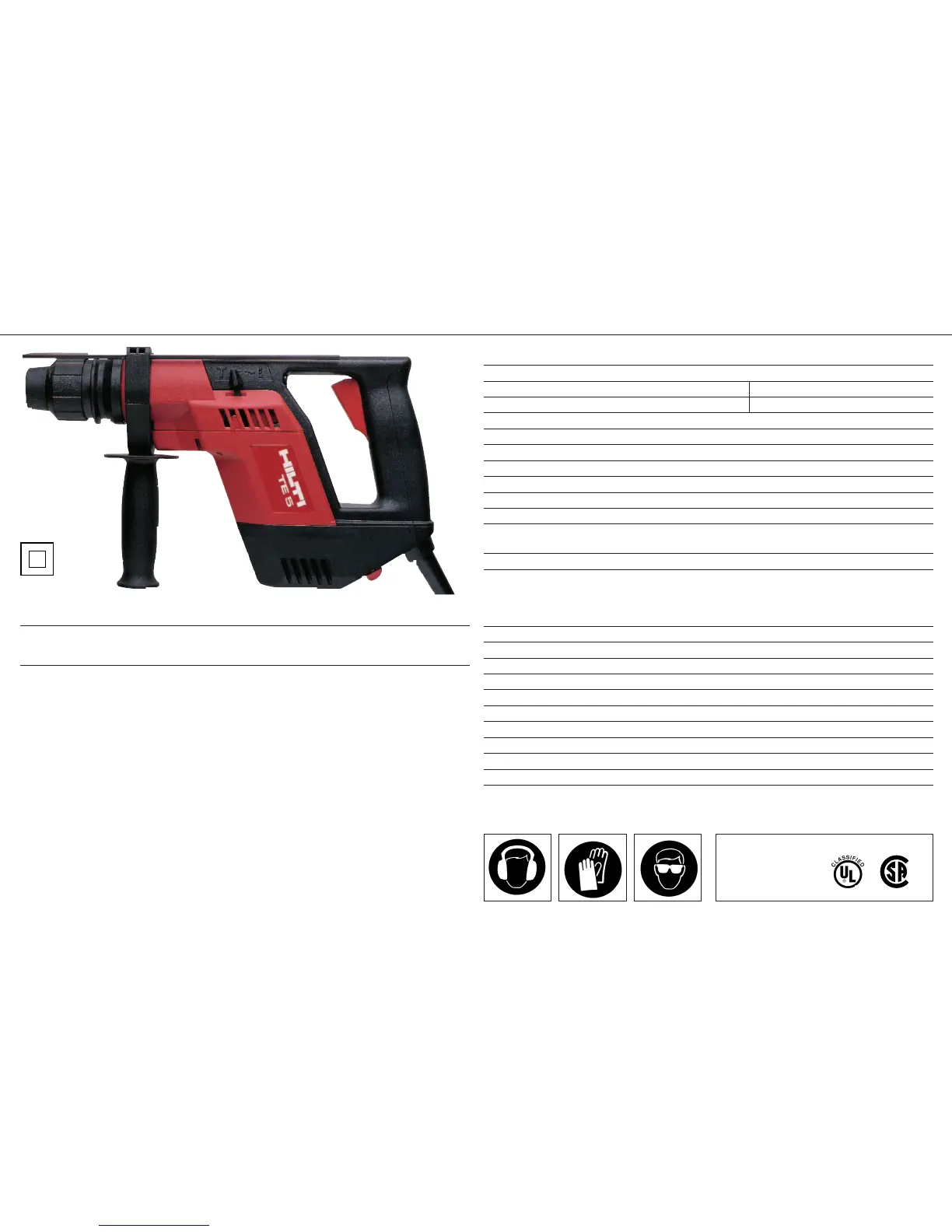

Hilti TE 5 Rotary Hammer
Technical data
Power input: 500 W
Voltage (versions): 230 V 115 V
Current input: 2.3 A 4.6 A
Frequency: 50–60 Hz
Weight: 2.8 kg / 6.2 Ibs
Speed under load: 0–800 r.p.m.
Hammering speed under load: 0–4000 blows per minute
Single impact energy: 2.0 joules / 1.5 ft-lb
Drill bit diameter range: 5–20 mm (
3
/
16
″–
3
/
4
″) dia. in concrete
Recommended range: 5–10 mm (
3
/
16
″–
3
/
8
″) dia.
Drilling performance in B35 concrete: 8/150 mm (
5
/
16
″/6″) dia.= 24 cm
3
/min.
(1.46 in.
3
) = 480 mm/min.
Drill bits in standard programme:
TE-C drill bits 4–16 mm (
5
/
32
″–
5
/
8
″) dia.
TE-C-S drill bits 18 mm / 20 mm (
5
/
8
″/
3
/
4
″) dia.
TE-C-HB forming bit 10–24 mm (
3
/
8
″–1″) dia.
Chuck TE-C
Carbon brushes with automatic cut-out
Double insulation, class II
Slip-type clutch as protection against motor overloading
Sealed against dust, permanent lubrication (maintenance free)
Variable speed control switch with infinite regulation
Reversing switch
Adjustable side handle with depth gauge
Automatic hammering cut-out when idling
Setting lever for hammer drilling/rotary drilling only
Right of technical modifications reserved.
Accessories and kit for Hilti TE5 rotary hammer:
Hilti lubricant spray, key-type chuck, quick-release chuck, case or cardboard box
dust shield
During operation, the sound pressure level may exceed 85 dB (A). In such case,
it may be necessary to take suitable protection against the noise.
Before beginning work:
When working with the machine, it must be held with two hands. Always make
sure that you have a safe stance/foothold.
1. Check that the electric supply corresponds to the information on the rating
plate.
2. The TE5 is double insulated and need not be earthed (grounded).
3. Do not apply excessive pressure to the TE5 – hammering/impact power will
not be increased. Simply position and guide the TE5.
4. Check that the direction of rotation is set correctly.
Before starting to work, please read the enclosed safety precautions.
Always wear ear
protectors.
Always wear pro-
tective gloves.
Always wear safety
glasses.
This Product is Listed
by Underwriters
Laboratories Inc.
and bears the Mark:
Double insulation
To Next Page
