*In case of common arrhythmia, the instrument cannot meet the claimed performance
requirements.
*Any blood pressure measurement can be affected by the posture of the patient and
his/her physical condition.
*Blood pressure measurement may be affected by motion or speaking, incorrect
position of the arm, rough surface on which the instrument is placed or instrument
vibration, etc., during measurement.
*For accurate measurement, please keep your back straight and sit in the correct
posture. Please relax and keep quiet.
*In case of instrument failure, an error code will be displayed in the format "EC XX".
See the "Common Failures" Section for details.
*Note: The measured blood pressure should be interpreted by professionals.
The product is not suitable for newborns.
The blood pressure values obtained by this instrument are equivalent to that from the
auscultatory method, with their error consistent with the requirement specified in
YY0667-2008.
3. Structure and operating principle
3.1 Product's components
No.
Name
Quantity
Remarks
1
Host of medical full-automatic upper
arm electronic sphygmomanometer
1pcs
With wrist pad
2
Power cable
1pcs
3
Printing paper
1pcs
Options: device with
printing function
4
Manual
1pcs
5
Certificate
1pcs

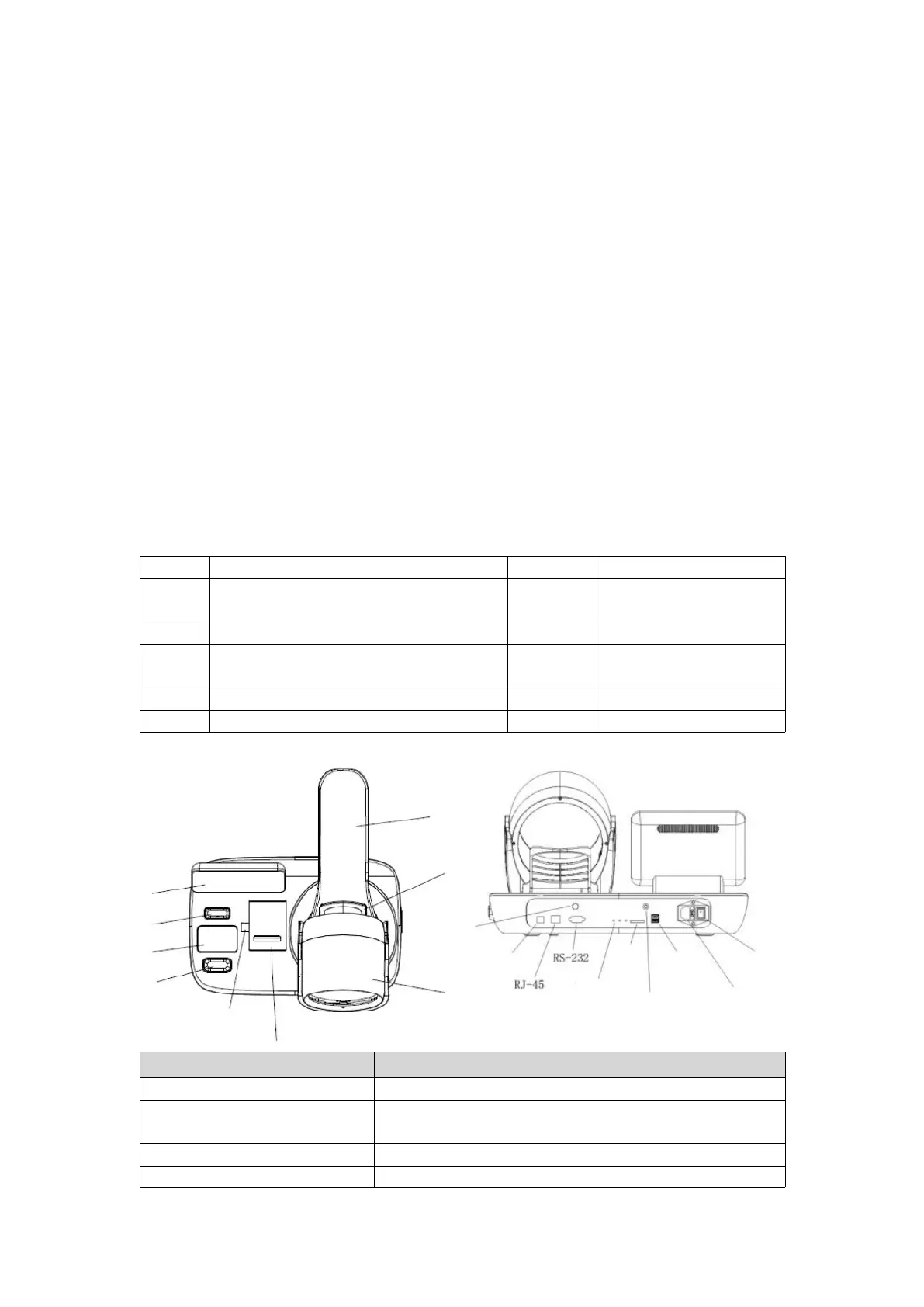

3.2 Name and description of components
Name
Description
Wrist pad
Used to place the arm during measurement
Elbow pad button
Press your elbows against it during measurement to
prevent measurement failure
Display Screen
Display measurements
RS-232
Used to connect to a computer port when the
Display Screen
Emergency Stop
button
Authentication
Module
Start/Stop button
Printer cover plate button
Wrist pad
Elbow pad button
Sleeve
Printer cover plate
Upstream air hole
USB A port
Setting button
SD
card
Ground points
USB B port
Power socket
Power switch
