Hioki LR8450 Quick Start Manual

86
Setting Example(Measuring Temperature Using Thermocouples)

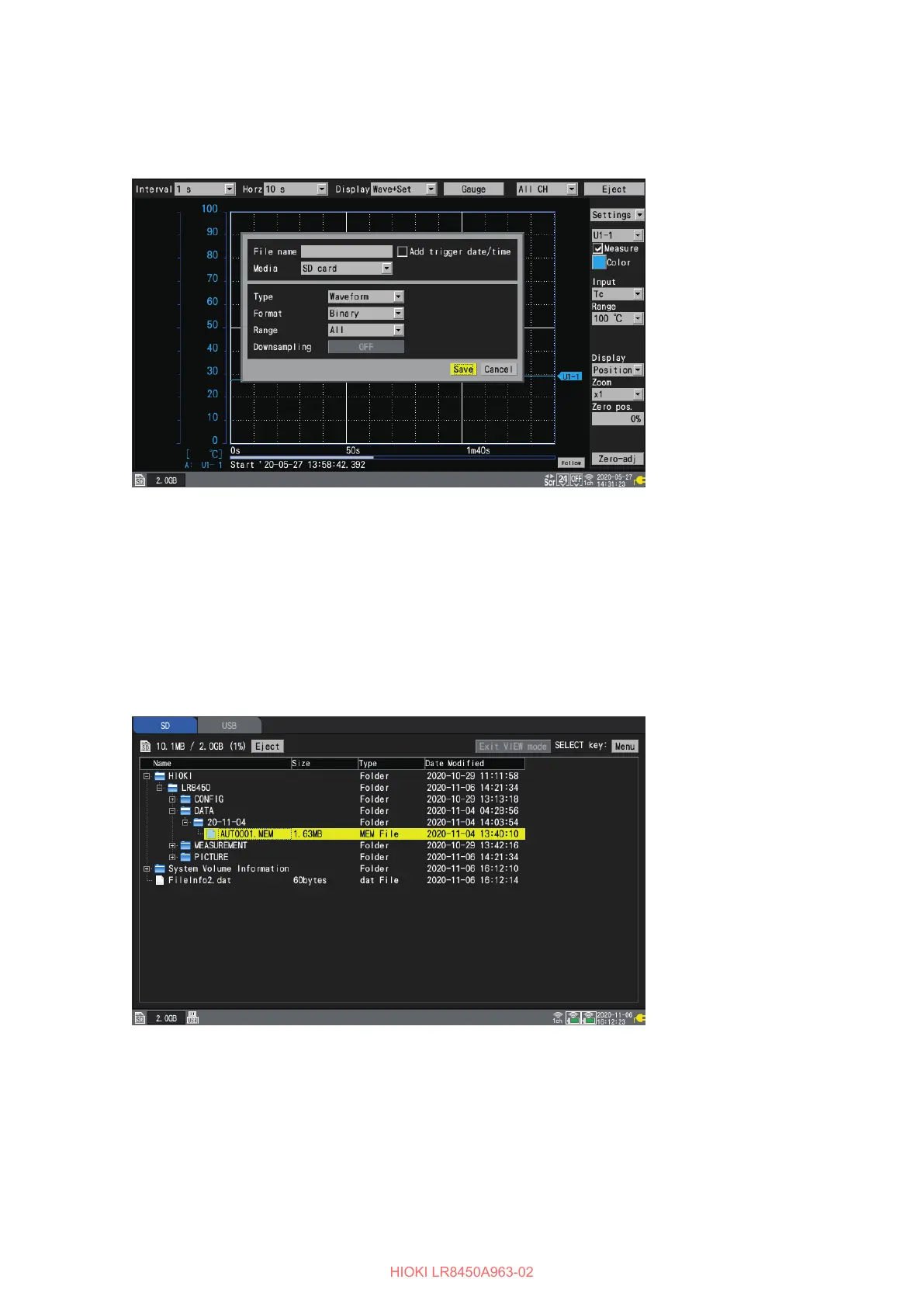

When you press the SAVE key, the le saving window will appear.
Under [Type], select [Waveform]. Under [Format], select [Binary].
Press the ENTER key while [Save] is selected.
The instrument can load binary-form (LR8450-specic-form) waveform data only.
When you do not name les, the instrument will automatically name them.
6
Load the saved waveform data.
When you press the FILE key, the le list will appear.
Waveform data is saved in the [HIOKI] > [LR8450] > [DATA] > [yy-MM-dd] folder.
(yy-MM-dd represent the year, month, and date, respectively)
When you select a le and then press the ENTER key, the le loading window will appear.
When you select [OK] and then the press the ENTER key, the instrument load the le.
Each data is saved in the following folders:
• CONFIG: setting data
• DATA: waveform data
• MEASUREMENT: numerical calculation results
• PICTURE: image data
HIOKI LR8450A963-02

Hioki LR8450 Specifications

General

Model	LR8450
Category	Data Loggers
Dimensions	330 mm (12.99 in) W × 221 mm (8.70 in) H × 120 mm (4.72 in) D
Weight	Approx. 2.8 kg (excluding battery)
Operating Temperature	0 to 40 °C (32 to 104 °F), 80% RH or less (no condensation)
Sampling Rate	1 ms to 1 hr
Memory	Internal memory
Interface	USB, Ethernet
Power Supply	AC adapter or battery
Measurement Range	Varies with module
Accuracy	Varies with module
Storage Media	SD card
Memory Capacity	Internal memory
Input Type	Voltage, temperature
Temperature Measurement	Varies with module
Communication Interface	USB, Ethernet
Measurement Channels	Up to 120 channels (with optional input modules)
