Programming
© 2008 HIRSCHMANN Automation and Control GmbH · Branch Office Ettlingen · eMail: info.ecs@hirschmann.de · www.hirschmann-usa.com 25
50 650 19 0201e_Rev C (LinkBelt278).doc / 2008-08-18 / Rev. C / rk

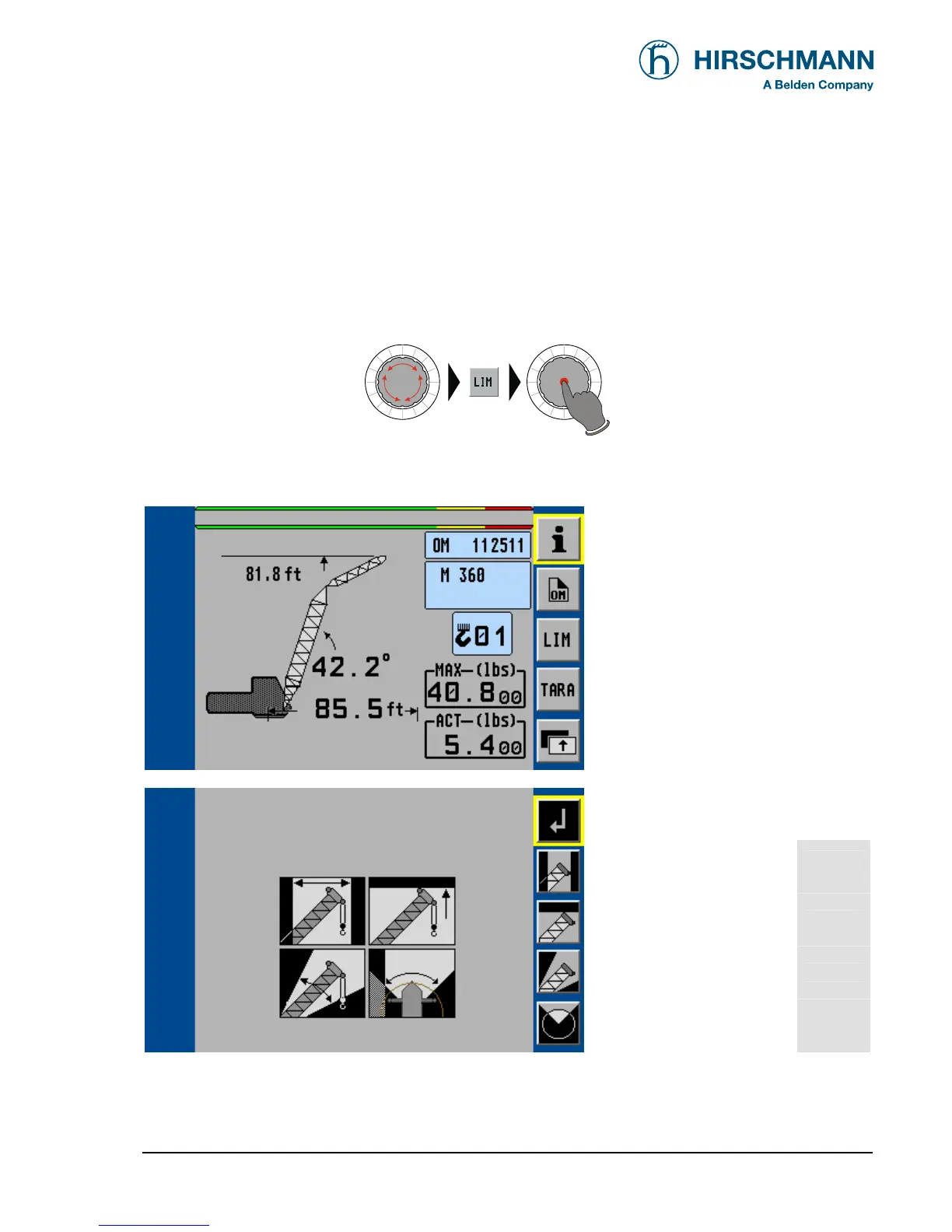

4.3 Programming geometrical limits
The LMI system comprises programmed limit entries for the operating range of the crane. Program-
ming is facilitated by interactive step-by-step guidance.
• The functions can be used individually or combined. Symbols will mark active limitations.
• If a programmed limit is exceeded, the system shuts off the crane function and triggers a visual
indication (blinking symbol) and an acoustical signal.
Calling up the function:
Start of limits setup menu:
< Start limits menu
back to normal LMI working screen
edit radius limit
chapter:
> 4.3.1
edit height limit
> 4.3.2
edit main boom angle limit
> 4.3.3
edit slewing angle limit /
virtual wall
> 4.3.4
