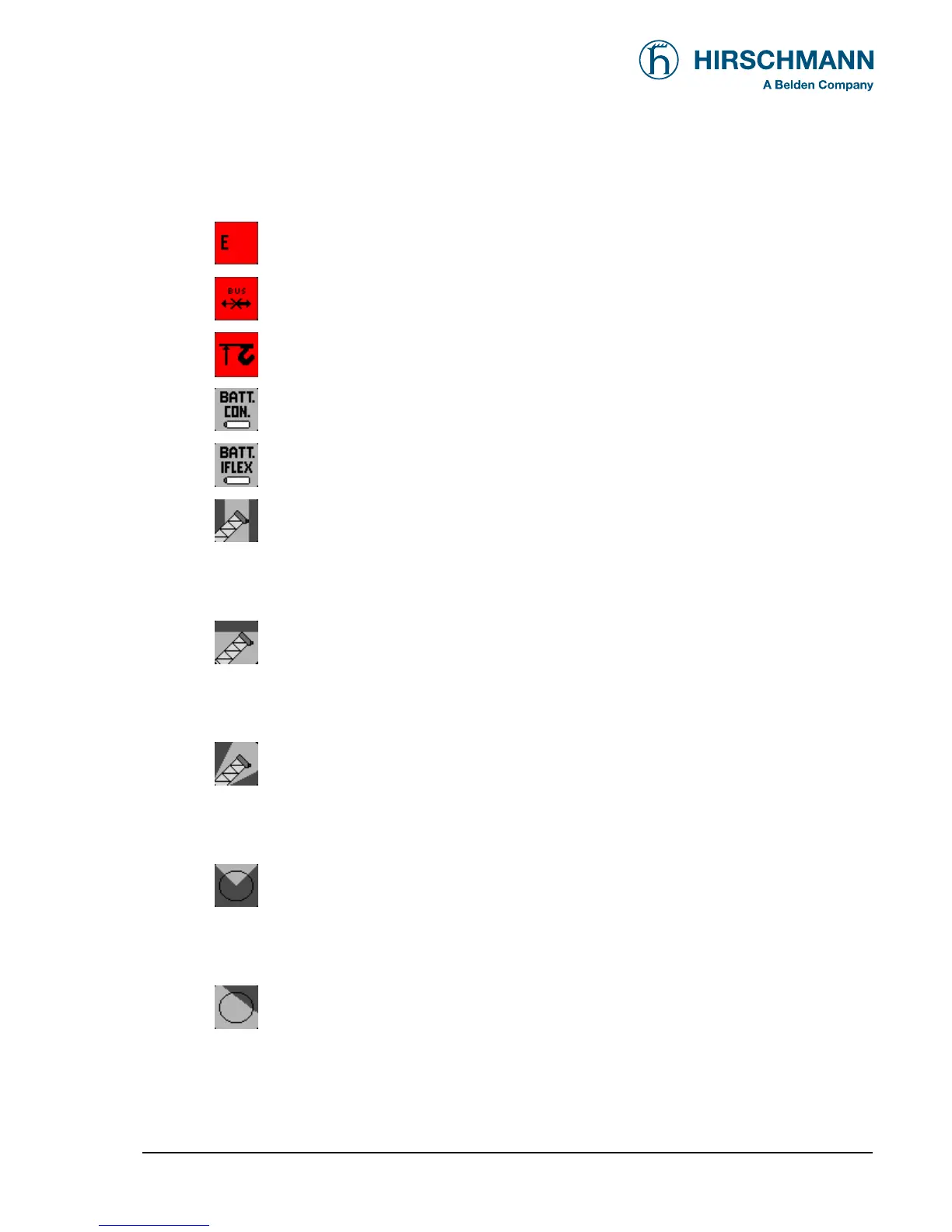

3.4. Description of the status symbols
Symbol for LMI error (in connection with fault code)
Symbol for bus error
Hoist limit switch has come into action (A2B)
Back-up battery for console RAM memory is low.
Ask field service to replace lithium battery 3V on printed circuit board.
Back-up battery for iFLEX5 RAM memory is low.
Ask field service to replace lithium battery 3V on printed circuit board.
Symbol radius limitation
• continuously visible:
radius limitation active
• blinking:
range limits exceeded
(⇒ see chapter 4.3.1)
Symbol height limitation:
• continuously visible:
height limitation active
• blinking:
height limit exceeded
(⇒ see chapter 4.3.2)
Symbol boom angle limitation:
• continuously visible:
boom angle limitation active
• blinking:
angle limits exceeded
(⇒ see chapter 4.3.3)
Symbol slewing angle limitation:
• continuously visible:
slewing angle limitation active
• blinking:
slewing angle limits exceeded
(⇒ see chapter 4.3.4.1)
Symbol work area definition:
• continuously visible:
work area definition active
• blinking:
work area limits exceeded
(⇒ see chapter 4.3.4.2)
