System Description
© 2008 HIRSCHMANN Automation and Control GmbH · Branch Office Ettlingen · eMail: info.ecs@hirschmann.de · www.hirschmann-usa.com 6
50 650 19 0201e_Rev C (LinkBelt278).doc / 2008-08-18 / Rev. C / rk

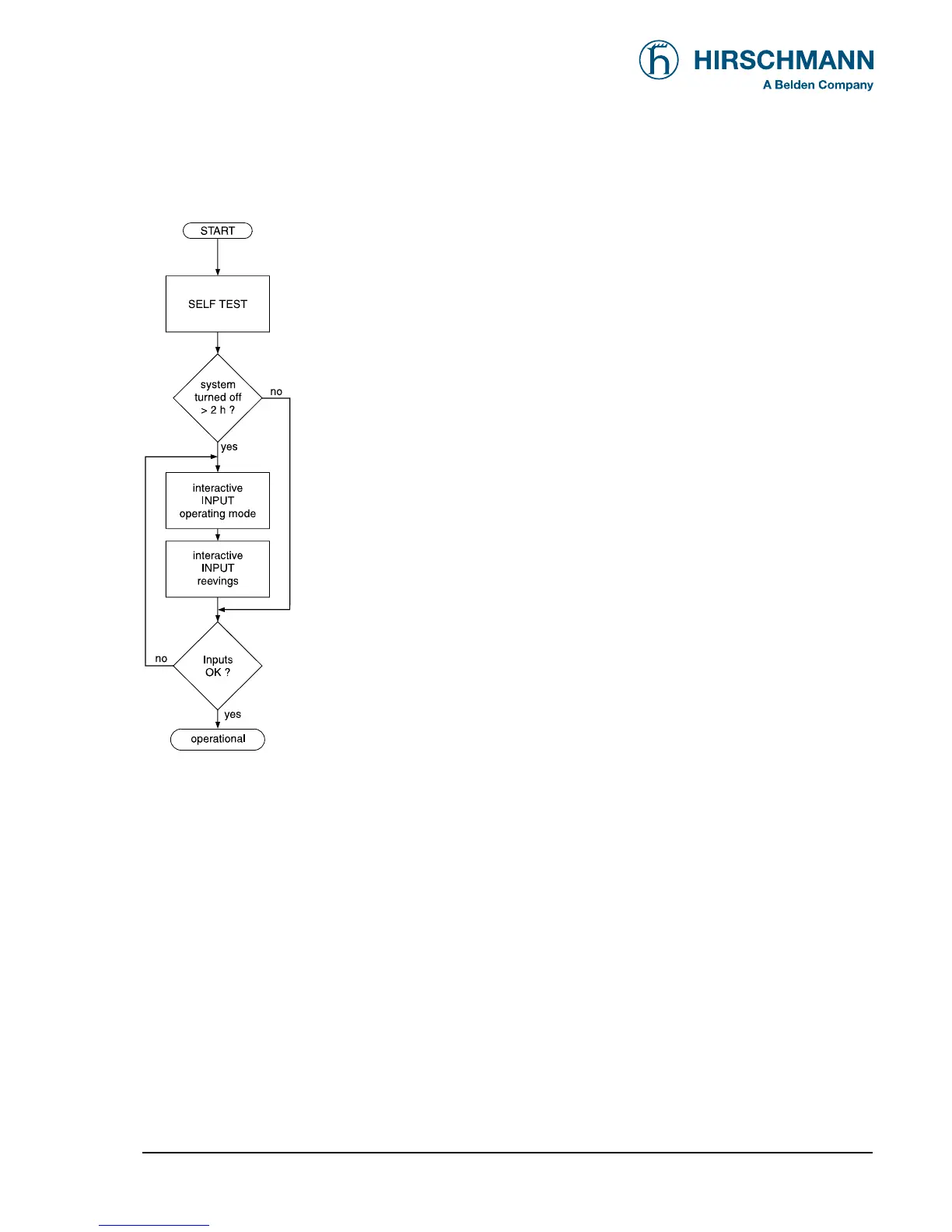

3.1 SYSTEM FUNCTION
Upon switching on, the system starts with an automatic test of the LMI system, of lamps
and audible alarm. During the test, the LC (liquid crystal) display shows the start screen.
If the system was turned off for more than the maximum time, the setup configuration
must be entered after the system test. (⇒ chapter 4)
First, the operating mode is determined by a step-by-step review of the rigging states.
Next, input of the reeving.
Now the LC display shows all inputs and awaits acknowledgment or cancelling.
Upon acknowledgment of the inputs the system is ready for operation.
In the event of a disruption, a corresponding error code "E##" will appear on the Data dis-
play (1). (> refer to error code table)
