(1) Data display

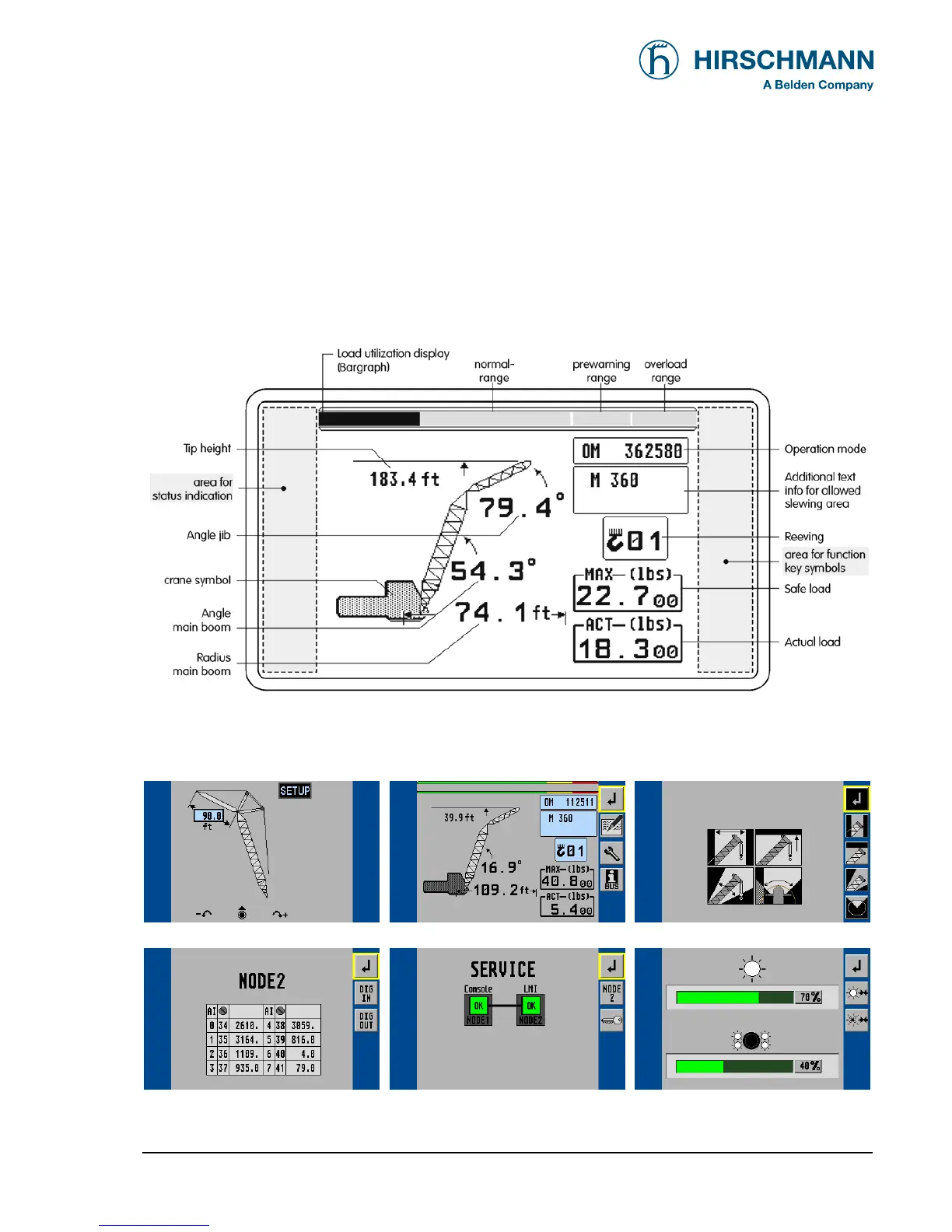

The Data display (1) is a 6.5" LC color graphics display with background illumination which shows
required data such as load values, geometry and crane data, symbols, etc., depending on the respec-
tive operating status.
Normal LMI display:
(Illustration in black/white)
Other display examples:
Set-up Menu (mode of operation) Standard LMI screen Limits Menu
iNFO Menu (CAN Node 2) Service Menu (Bus Information) Brightness Setting Menu
A detailed description of the symbols and displays can be found both in the individual chapters and in the Appendix to this
manual.
