Sub-Ring (RSR20, RSR30, MACH1000)
42
Redundanz L2P
Release
5.0
04/09
Setting up Sub-Rings has the following advantages:
X Through the coupling process, you include the new network segment in
the redundancy concept.
X You can easily integrate new company areas into existing networks.
X You easily map the organizational structure of a company in the network
topology.
X As an MRP-Ring, the switching times of the Sub-Ring in redundancy cas-
es are typically <100 ms.
The following graphics show examples of possible Sub-Ring topologies:

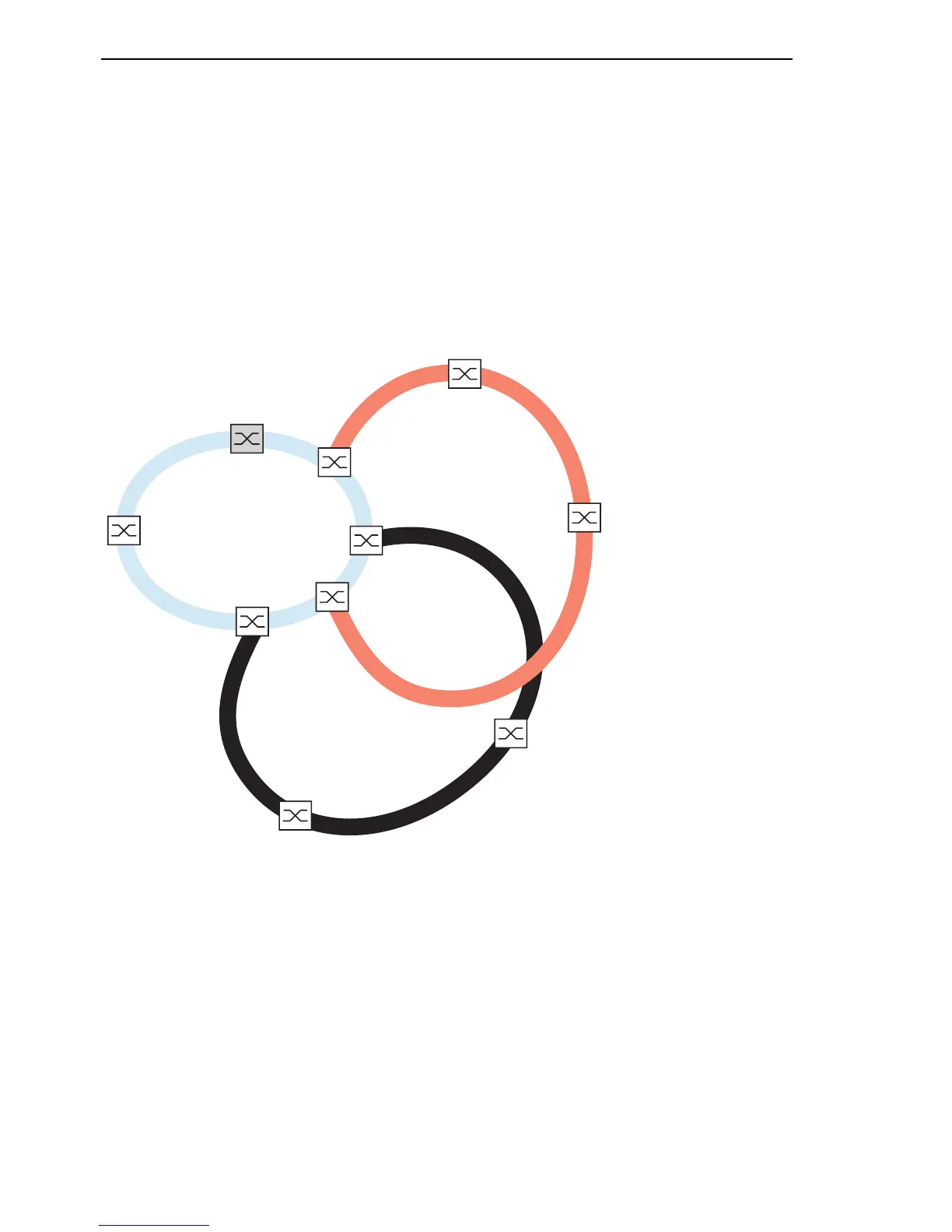

Figure 16: Example of an overlapping Sub-Ring structure
RM
SRM 1
SRM 2
SRM 4
SRM 3
