Ring/Network coupling
72
5.2
Preparing a Ring/Network coupling
Redundanz L2P
Release
5.0
04/09
The coupling mode indicates the type of the connected network.
In the “Coupling Mode” frame, select (see fig. 35)
– “Ring Coupling” or
– “Network Coupling”

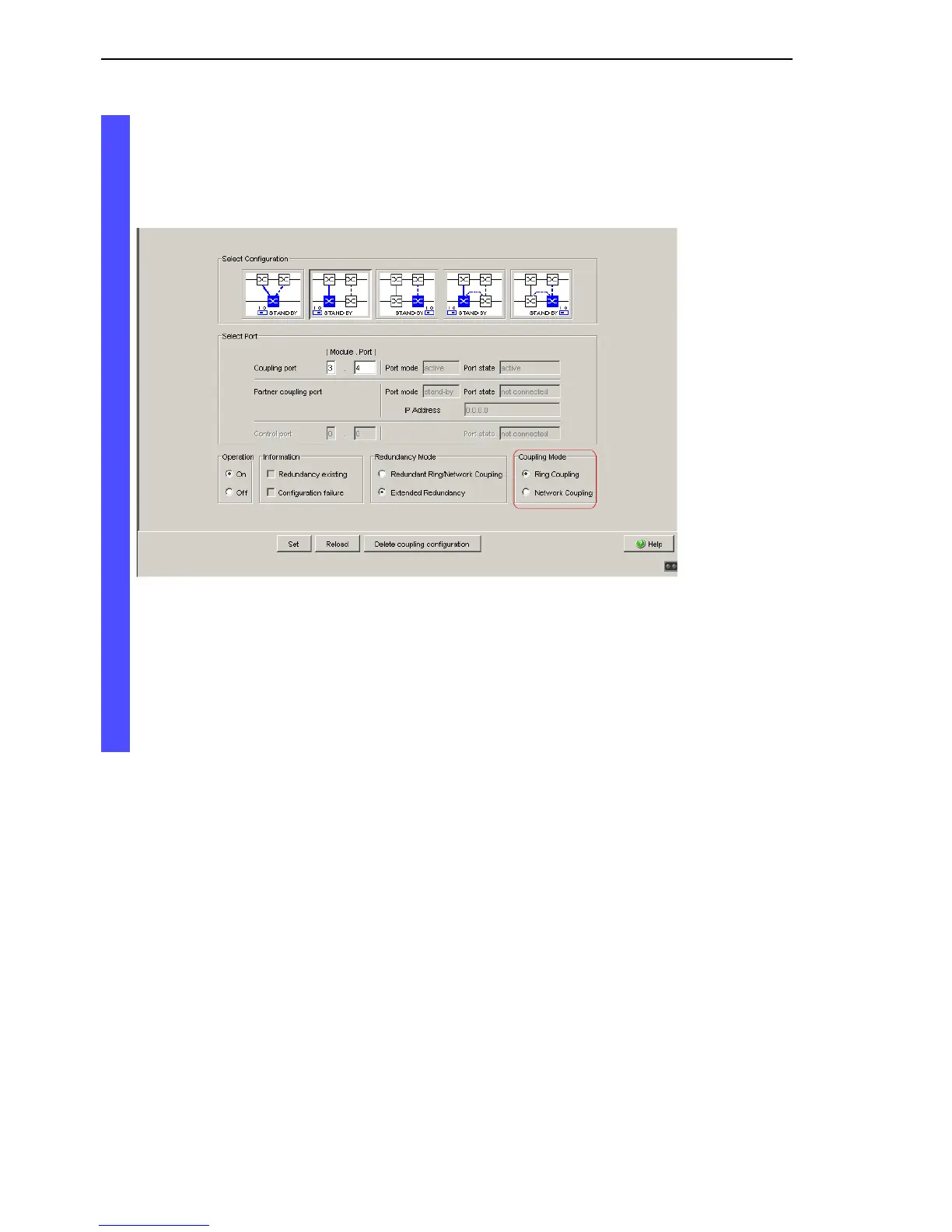

Figure 35: Selecting the coupling mode
Select “Ring coupling” if you are connecting a redundancy ring.
Select “Network Coupling” if you are connecting a line structure.
Delete coupling configuration
The “Delete coupling configuration” button in the dialog allows you
to reset all the coupling settings of the device to the state on delivery.
