Rapid Spanning Tree
Redundanz L2P
Release
5.0
04/09
6.3
Example of specifying the root paths
91

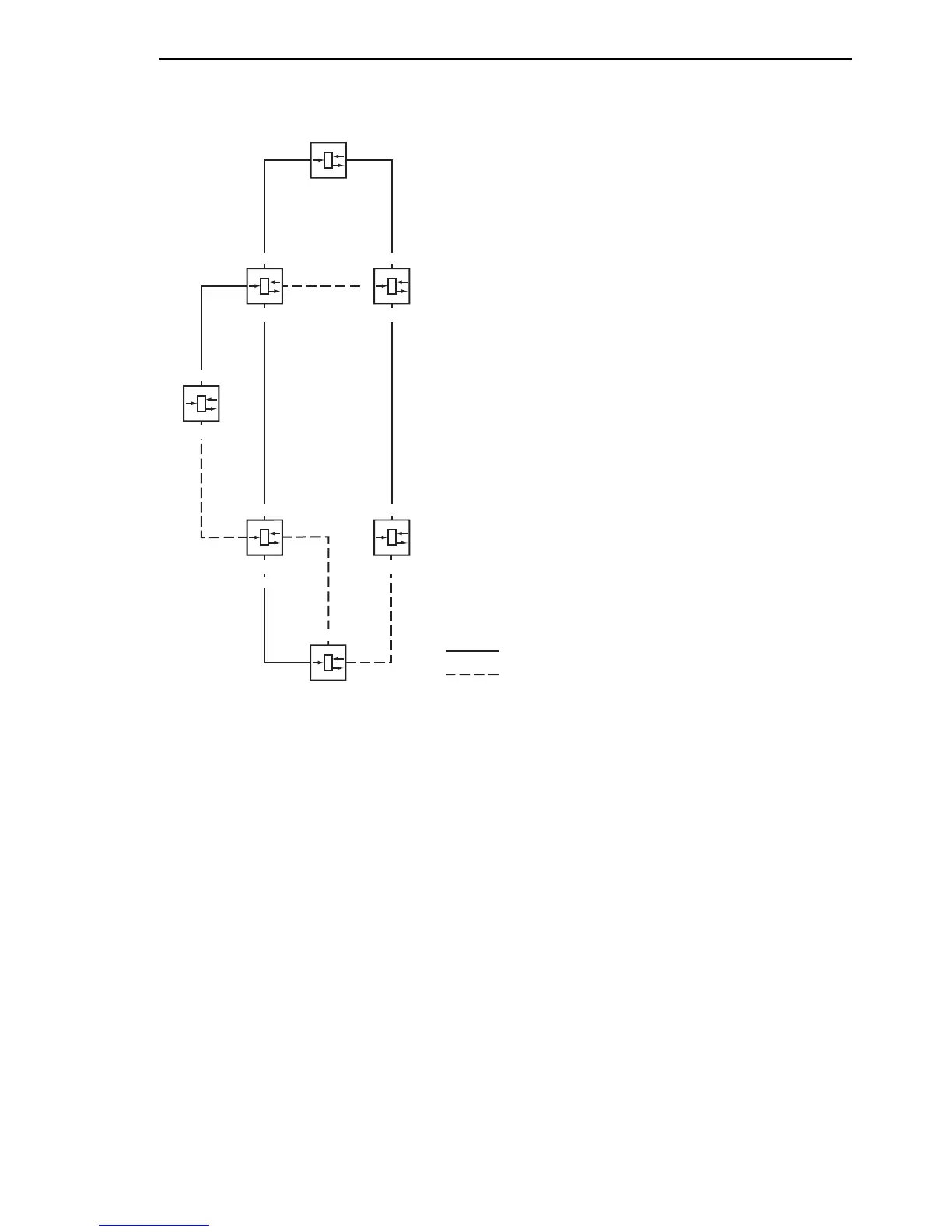

Figure 47: Example of specifying the root path
Root path
Port 2
Interrupted path
P-BID Priority of the bridge identifikation (BID)
= BID without MAC Address
Bridge 1
P-BID = 16
384
Bridge 2
P-BID = 20
480
Bridge 3
P-BID = 24
576
Bridge 5
P-BID = 32
768
Bridge 6
P-BID = 36
864
Bridge 4
Port 1
Port 3
Bridge 7
P-BID = 40
960
P-BID = 28
672
