Installation MACH102
Release
06
09/2014
15
1.1.2 MACH102 media modules

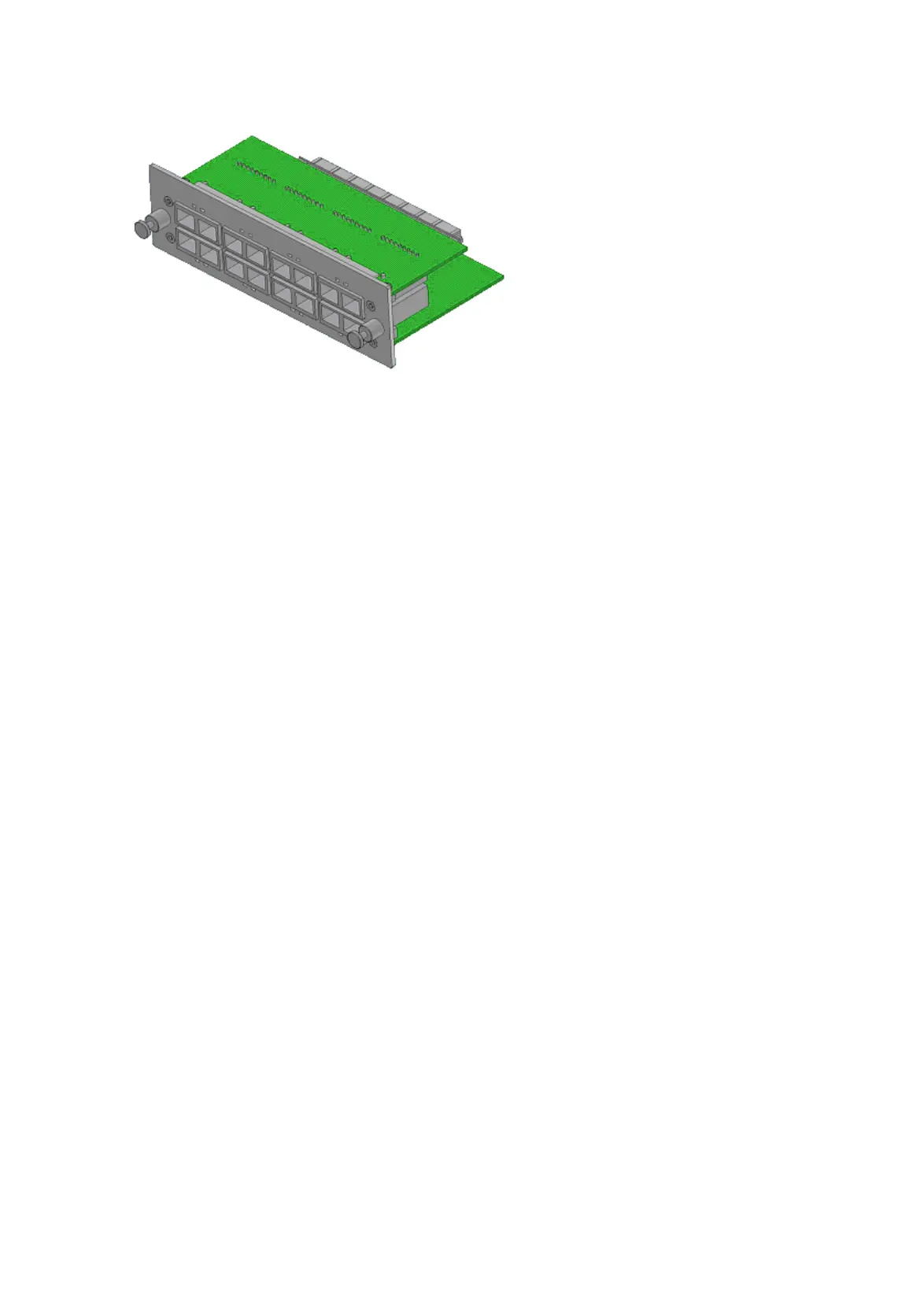

Figure 4: Media module for MACH102, Example: M1-8MM-SC
The MACH102 media modules form the interface from the device to the LAN.
The modules are deployable in the
MACH102-8TP basic device
MACH102-8TP-R basic device
The media modules are hot-plug-compatible, which means that you have the
option of replacing the modules with a module of the same kind during oper-
ation.
Note: If you are replacing media, e.g. removing a TX media module and plug-
ging in an FX media module in its place, the MACH102 performs a warm
start.
The media modules each have 8 Fast ETHERNET interfaces and differ as to
their media type.
The different interfaces of the MACH102 media modules provide you with the
following interface-specific functions:
Specific functions of TP/TX interface
Link Control
Auto Polarity Exchange
