Installation MACH102
Release
06
09/2014
23
Connecting the terminal block
Pull the terminal block off the device and connect the signal lines.

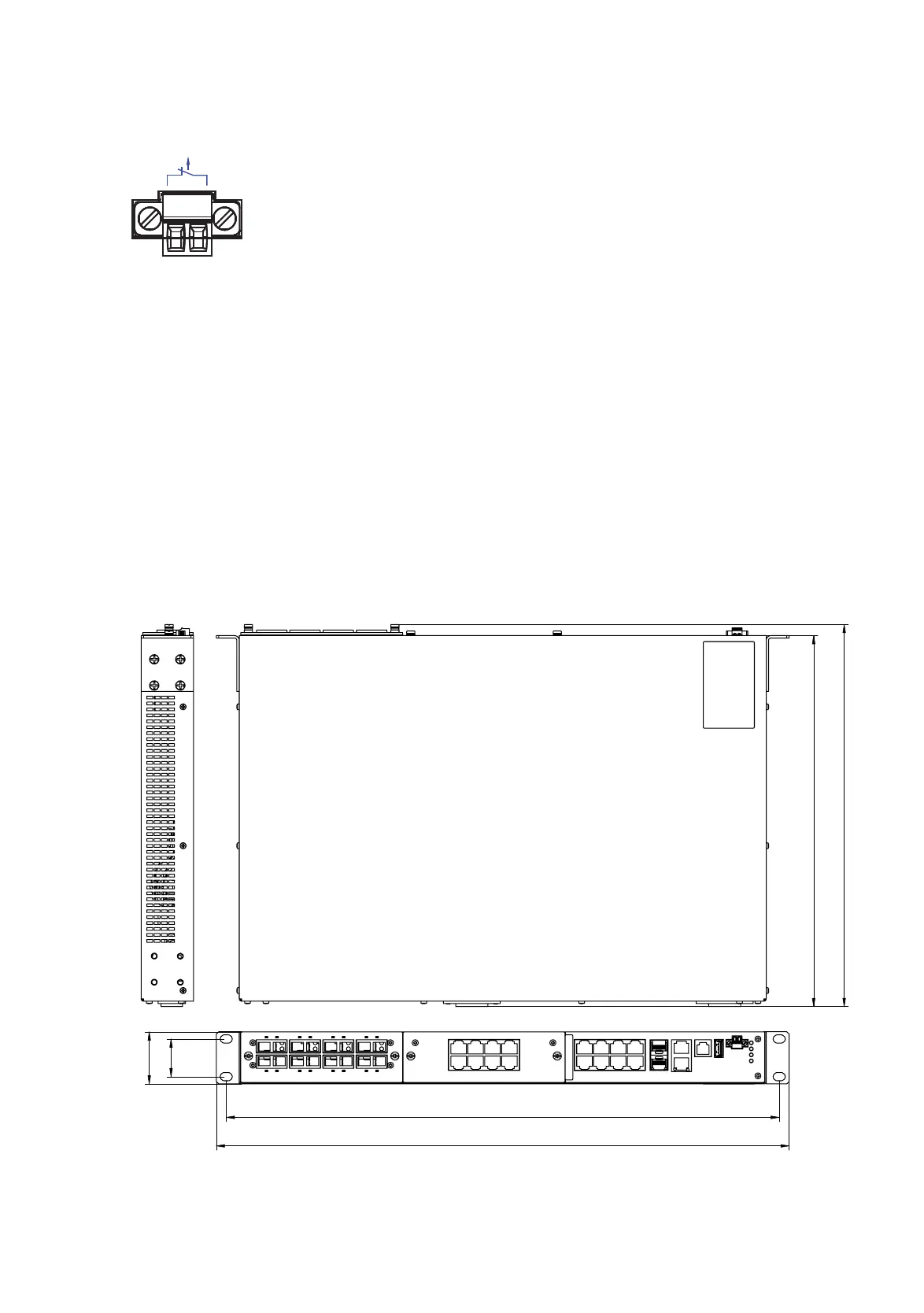

Figure 14: 2-pin terminal block
Note: Please note the electrical ratings for the signal contact (see on
page 39 “General technical data”).
Note: Relevant for North America:
The tightening torque of the terminal block screws is 3 lb in. (0.34 Nm).
Mount the terminal block for the signal contact on the front of the
device using the screw locking. Check whether the terminal block is
mounted correctly and screwed on.
2.1.5 Dimension drawings
FAULT
482,6
231,89
312,5
31,75
43,8
465,9
