Installation MACH102
Release
06
09/2014
Removing media modules
To remove the media module, first remove the two screws at the
corners of the media module.
Pull the media module out of the slot.
Fasten the protective cover to the slot using the two screws.
Removing the SFP transceivers
Pull the module out of the socket by means of the opened lock.
Close the socket with the protective cap.

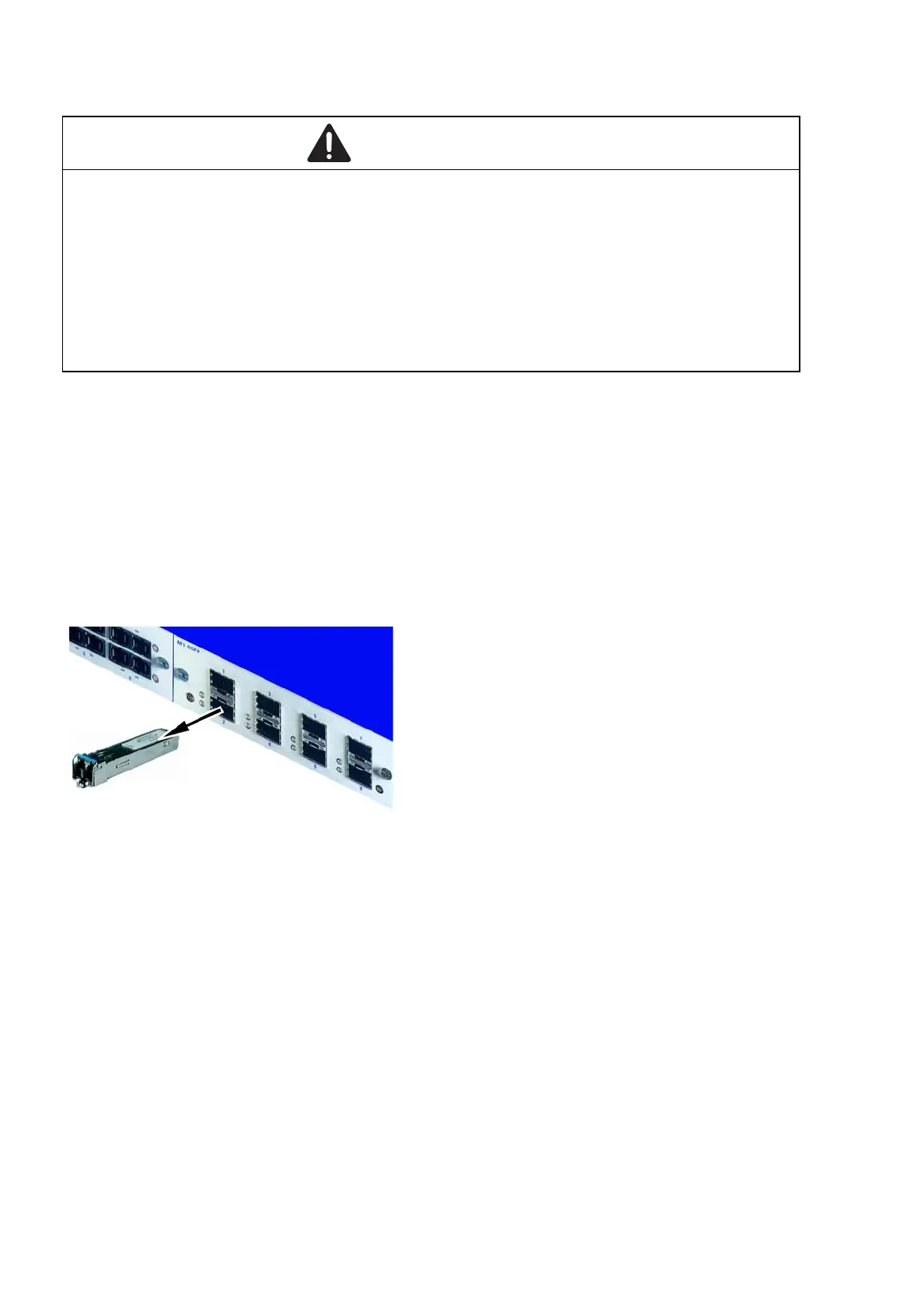

Figure 25: Deinstalling an SFP transceiver
WARNING
FIRE HAZARD
Disconnect the PoE voltage supply before removing the M1-8TP-RJ45 PoE
media module.
Non-adherence to these instructions can lead to death, serious
physical injury or material damage.
