Installation MS20/MS30
Release
11
07/2013
23

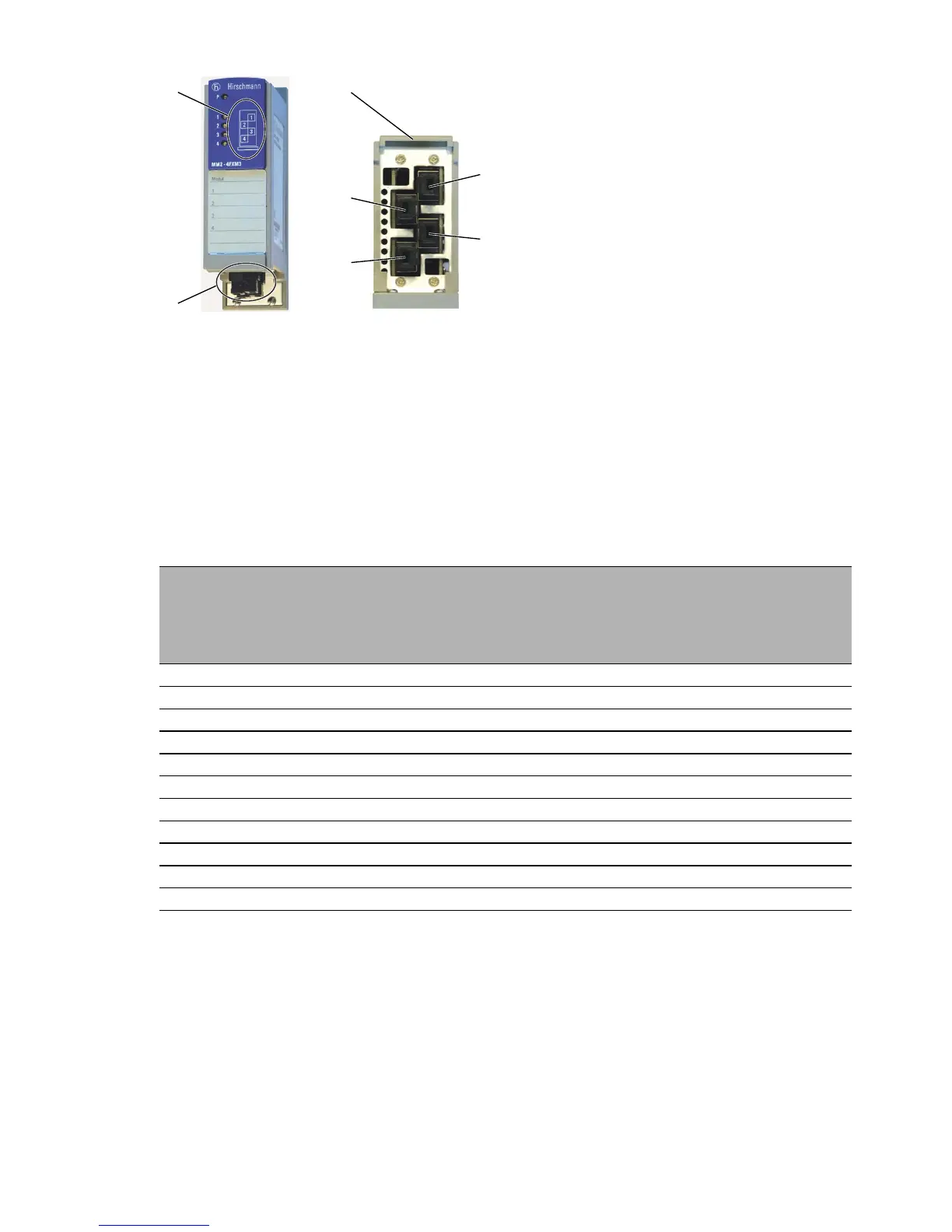

Figure 6: Port assignment
1 - Port 1
2 - Port 2
3 - Port 3
4 - Port 4
5 - Illustration of the port numbers
6 - Bottom side of the device
MM3 media modules
MM3 media modules
Module type
TP ports
10/100
Mbit/s
F/O port
multi-mode
10 Mbit/s
F/O port
multi-mode
100 Mbit/s
F/O port
single-
mode 1300
nm, 100
Mbit/s
F/O port
single-
mode 1550
nm, 100
Mbit/s
MM3-4TX5 4, M12
MM3-4FLM4 4, ST
MM3-1FXM2/3TX1 3, RJ45 1, DSC
MM3-2FXM2/2TX1(-EEC) 2, RJ45 2, DSC
MM3-2FXM4/2TX1 2, RJ45 2, ST
MM3-4FXM2 4, DSC
MM3-4FXM4 4, ST
MM3-1FXS2/3TX1(-EEC) 3, RJ45 1, DSC
MM3-2FXS2/2TX1 2, RJ45 2, DSC
MM3-4FXS2 4, DSC
MM3-1FXL2/3TX1 3, RJ45 1, DSC
Table 4: Media connections per MM3 media modules (number and type)
2
5
6
4
1
3
6
