24
Installation MS20/MS30
Release
11
07/2013

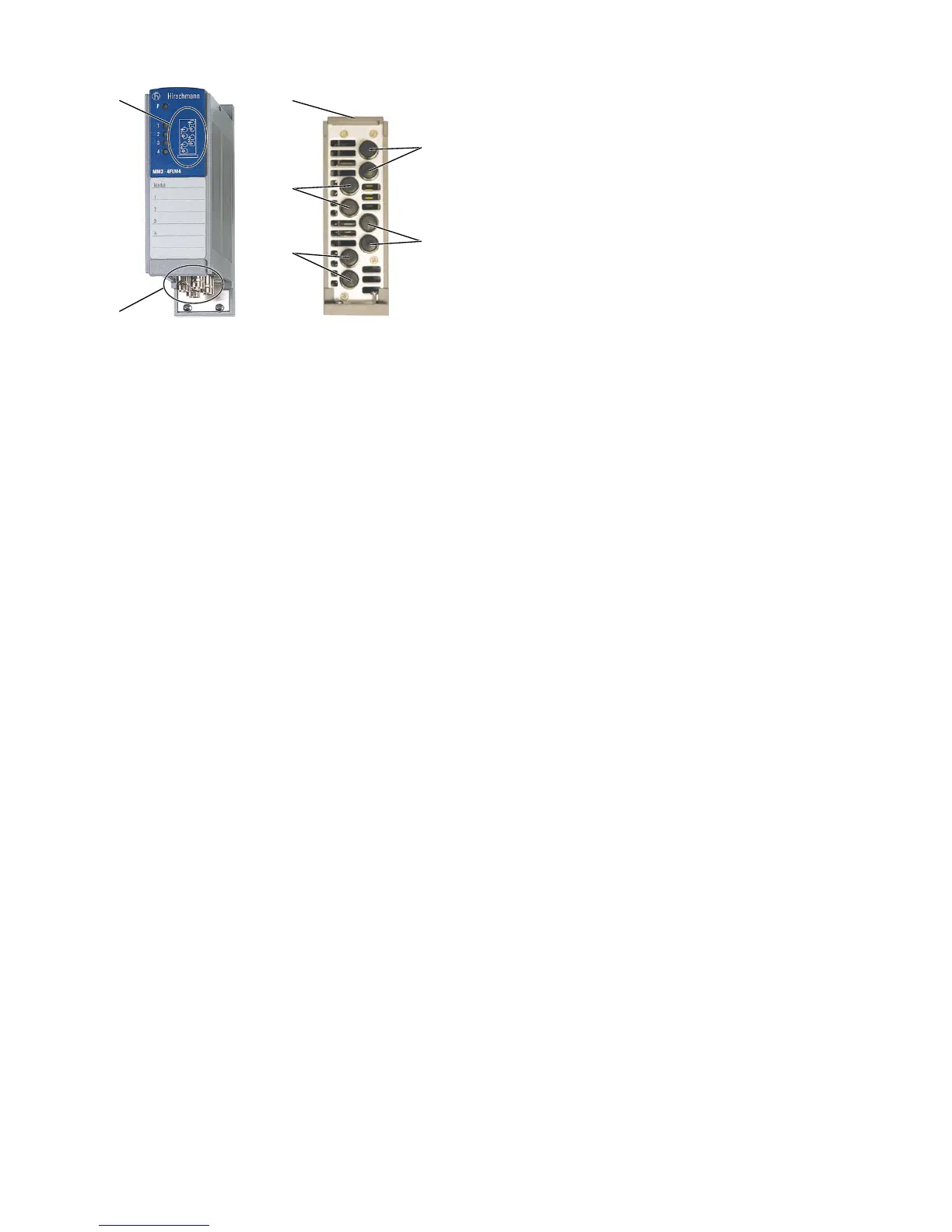

Figure 7: Port assignment
1 - Port 1
2 - Port 2
3 - Port 3
4 - Port 4
5 - Illustration of the port numbers
6 - Bottom side of the device
MM22-T1T1T1T1 PoE media module
The MM22-T1T1T1T1 PoE media module (deeper module design)
supports Power over ETHERNET (PoE) according to IEEE 802.3af. It
allows the connection and remote supply of IP telephones (Voice over IP),
webcams, sensors, printer servers and WLAN access points via 10BASE-
T/100BASE-TX, for example. With PoE, these terminal devices are
powered by the twisted-pair cable.
The MM22-T1T1T1T1 media module has four 10BASE-T/100BASE-TX
ports (RJ45 connections) for connecting network segments or PoE
terminal devices (PD, Powered Device) up to class 0 (or respectively
class 3).
The current is supplied on the free line pair (spare pairs); the individual
ports are not electrically insulated from each other.
The following conditions are met in accordance with IEEE 802.3af:
Endpoint PSE
Alternative B.
MM4 media modules
The 4-port MM4-4TX/SFP media module has 4 TP interfaces and 4
sockets for SFP transceivers from Hirschmann.
The 2-port MM4-2TX/SFP media module has 2 TP interfaces and 2
sockets for SFP transceivers from Hirschmann.
