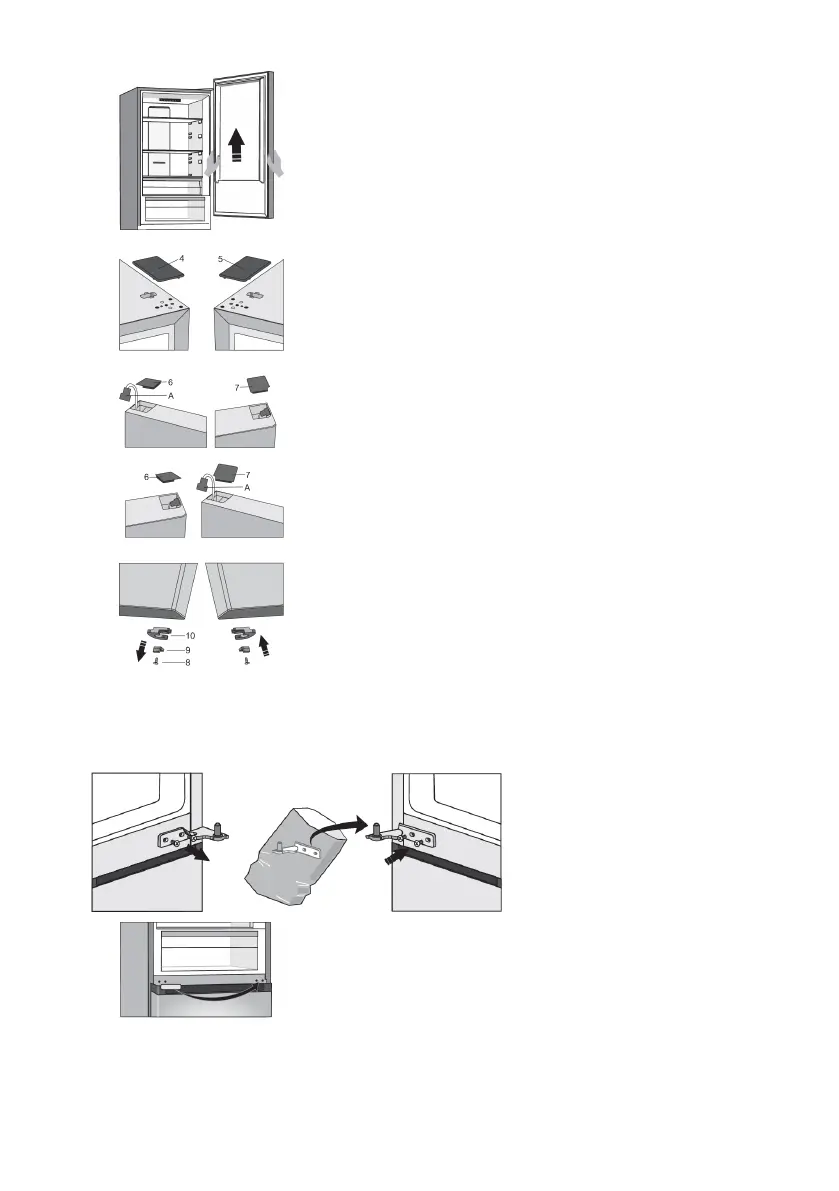

4. Remove the door from the middle hinge by carefully lifting it straight
up. Place the door on a smooth surface.
5. Take the (right) cap/cover (4) from the bag and place it on the spot
from which the top hinge was removed. Remove and save the
cap/cover from the other side (5) to which the hinge will be
relocated.
6. Remove the cap (6) from the left side of the top door and pull out
the connector (A). Then, remove the cap (7) from the right side of
the top door. Place the cap (7) on the left side of the top door and
place the cap (6) on the right side of the top door.
7. Undo the screw (8) and remove the door retainer (10) and the door
stop (9). Then, use a screw (8) to install the door retainer supplied
in the bag, and the door stop (9). Keep the door retainer (10) in
case you need it later.
8. Unscrew the screws from the middle hinge and remove it. Take the additional hinge from the bag
and screw it to the opposite side.
Save the hinge you removed if you ever want to change the direction of the door opening at a
later stage.
9. Remove the middle hinge cap and replace it on the opposite side.
15
