70W TYP. (VCC - VEE = 4.5V)
50W TYP. (VCC - VEE = 9V)
x WIDE ANALOG INPUT VOLTAGE RANGE: ±6V
x FAST SWITCHING:
tpd = 15ns (TYP.) at TA = 25 °C
x LOW CROSSTALK BETWEEN SWITCHES
x HIGH ON/OFF OUTPUT VOLTAGE RATIO
x WIDE OPERATING SUPPLY VOLTAGE RANGE (VCC - VEE) = 2V TO 12V
x LOW SINE WAVE DISTORTION: 0.02% at VCC - VEE = 9V
x HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.)
x PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 4052

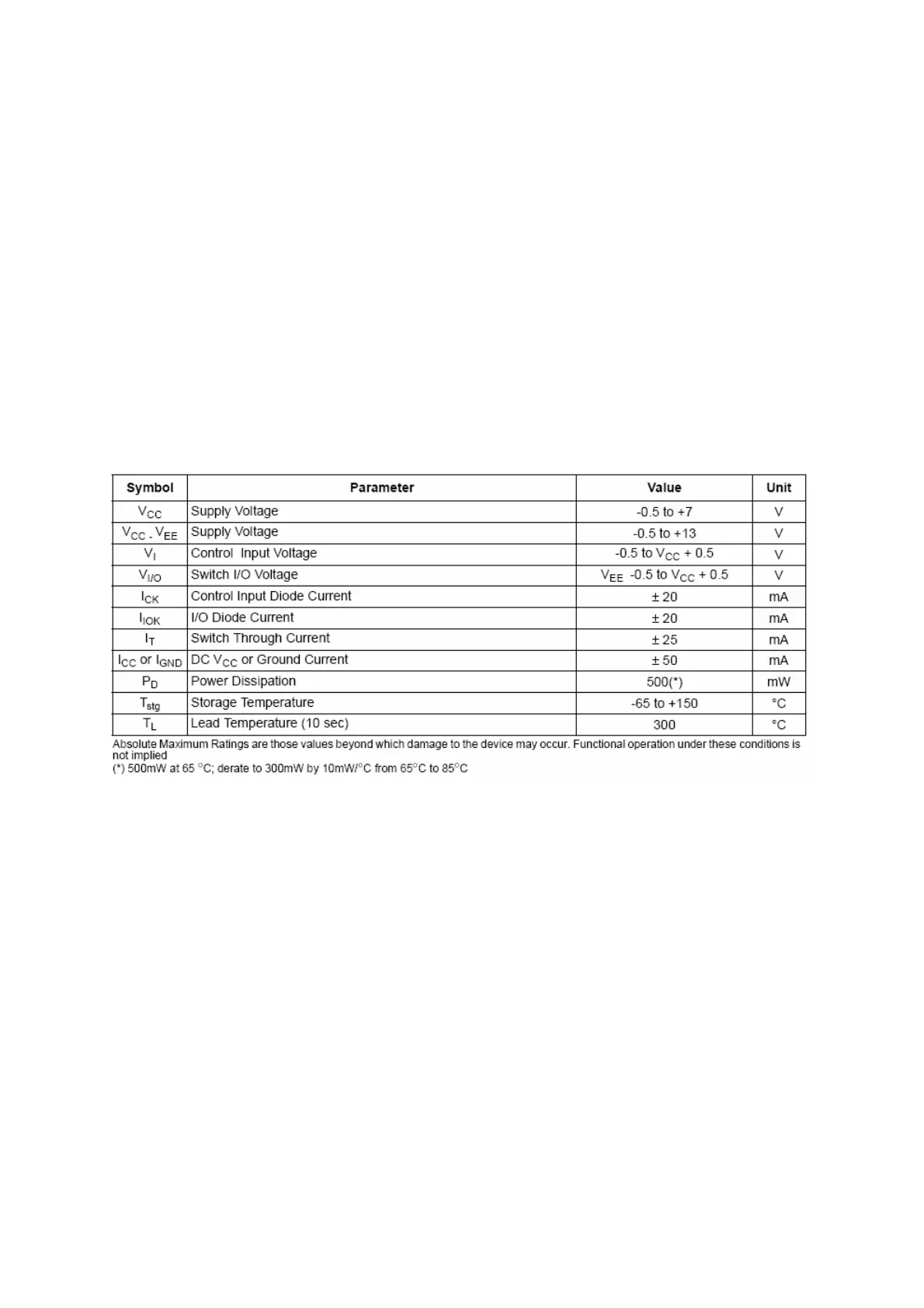

10.8.3 Absolute Maximum Ratings
10.8.4 Pinning
VEE supply pin is provided for analog input signals. It has an inhibit (INH) input terminal
to disable all the switches when high. For operation as a digital
multiplexer/demultiplexer, VEE is connected to GND.
A and B control inputs select one channel out of four in each section. All inputs are
equipped with protection circuits against static discharge and transient excess voltage.
