10.7.2. Features
x Two MOS FET circuits in package the same size as SC-70
x Automatic mounting supported

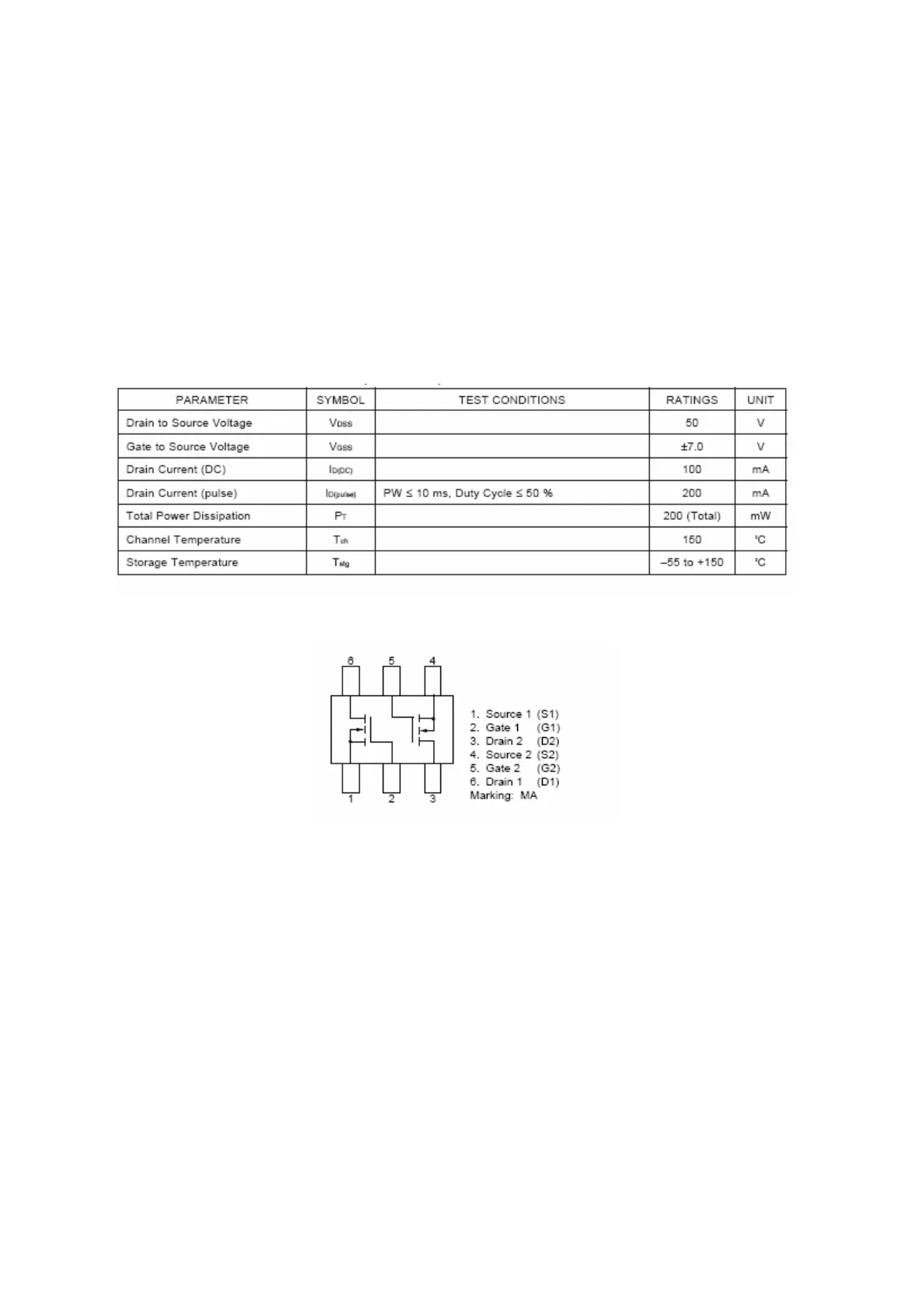

10.7.3 Absolute Maximum Ratings
10.7.4 Pinning
10.8. M74HC4052
10.8.1. General Description
The M74HC4052 is a dual four-channel analog MULTIPLEXER/DEMULTIPLEXER
fabricated with silicon gate C2MOS technology and it is pin to pin compatible with the
equivalent metal gate CMOS4000B series. It contains 8 bidirectional and digitally
controlled analog switches.
10.8.2. Features
x LOW POWER DISSIPATION: ICC = 4mA(MAX.) at TA=25°C
x LOGIC LEVEL TRANSLATION TO ENABLE 5V LOGIC SIGNAL TO
COMMUNICATE
x WITH ±5V ANALOG SIGNAL
x LOW "ON" RESISTANCE:
