To place riving knife in middel or down position, refer to the above
procedure.
• Raise the saw blade to the uppermost positon by turning the
height adjusting knob (A) clockwise.
• Lock the blade by turning bevel-lock lever (B) clockwise.
• Unlock riving knife lock knob (C) by turning it clockwise.
• Grasp the riving knife (D) and pull toward right side of saw to
release it from spring-loaded locking pin.
• Position the riving knife in the uppermost position with spring-
loaded locking pin is re-engaged.
• Lock the riving knife lock knob (C) by turning it counter-clockwise.
• Reinstall the table insert.
WARNING: Be extremely careful when adjust the riving
knife position. Do not allow hands to contact
blade.

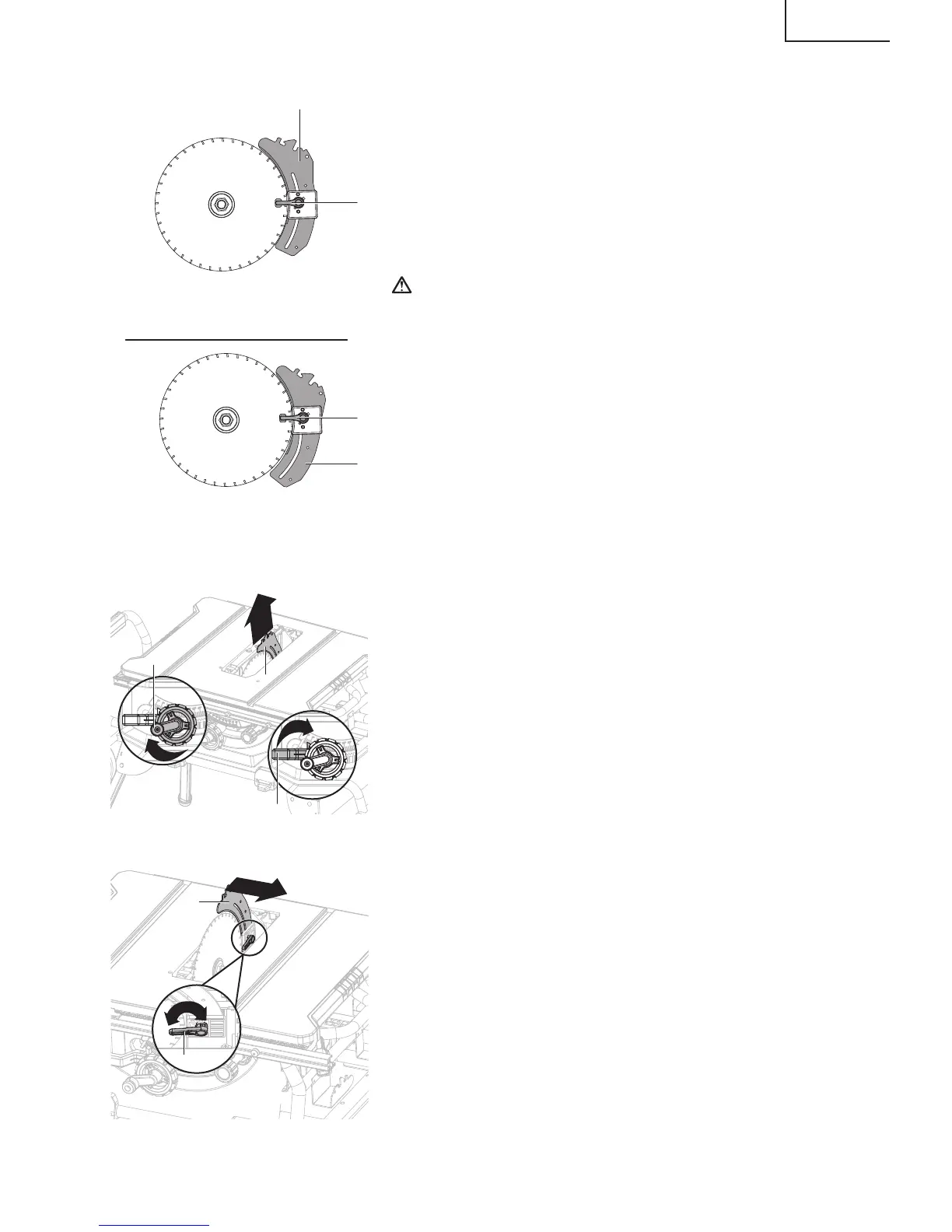

Fig. 6a
Fig. 6b
Fig. 6c
In middle position
for non-through cuts
In down position
for dado cuts
C
D
C
D
A
B
D
C
D
