43
English
E
G
B
• Unlock the fence rails lock lever (A).
• Set the blade at 0° bevel and move the fence (B) in until it touches
the blade.
• Lock the fence rails lock lever (A).
• Loosen the rip fence scale indicator screws (C, D) and set the red
line (E) on the rip fence scale indicator (F) to read zero.
• Retighten the rip fence indicator screws (C, D). The top rip scale
reads correctly only when the fence is mounted on the right side
of the blade and is in position 1 (G) (for 0 to 27 in. ripping) [not
the 35 in. position]. The bottom scale reads correctly only when
the fence is mounted on the right side of the blade and in position
2 (H) (for 8 in. to 35 in. ripping).

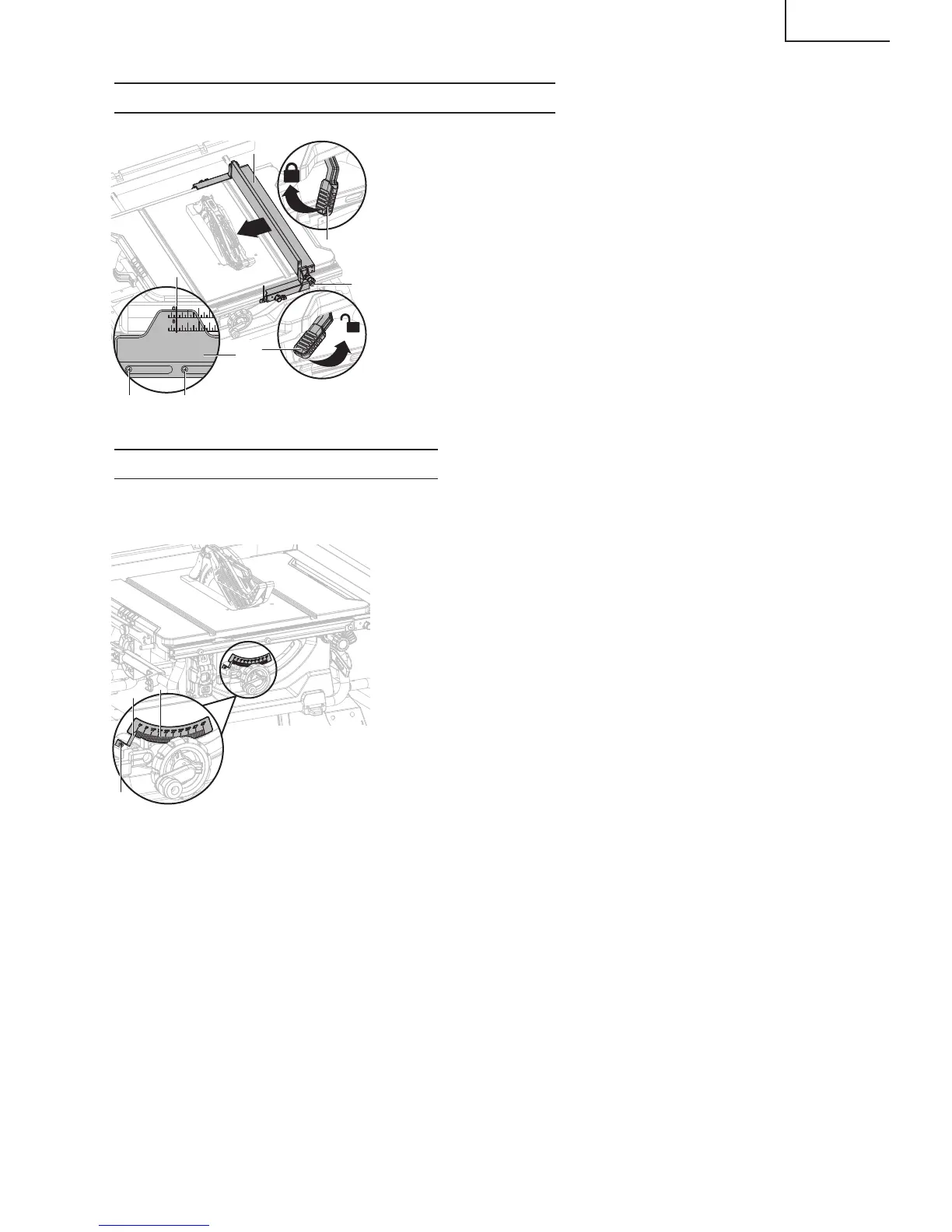

ADJUSTING RIP FENCE SCALE INDICATOR (FIG. 32)
• With blade perpendicular to table, loosen screw (A).
• Set the bevel indicator (B) to align with 0° on bevel scale (C).
• Retighten screw (A).
Adjust the red line on the bevel indicator if it is not aligned with zero when the blade is perpendicular to
the table.
ADJUSTING BEVEL INDICATOR (FIG. 33)
Fig. 32
Fig. 33
1
2
3
F
H
A
DC
A
B
C
A
