CAUTION: Make sure hardware does not protrude from front of
auxiliary wood fence.

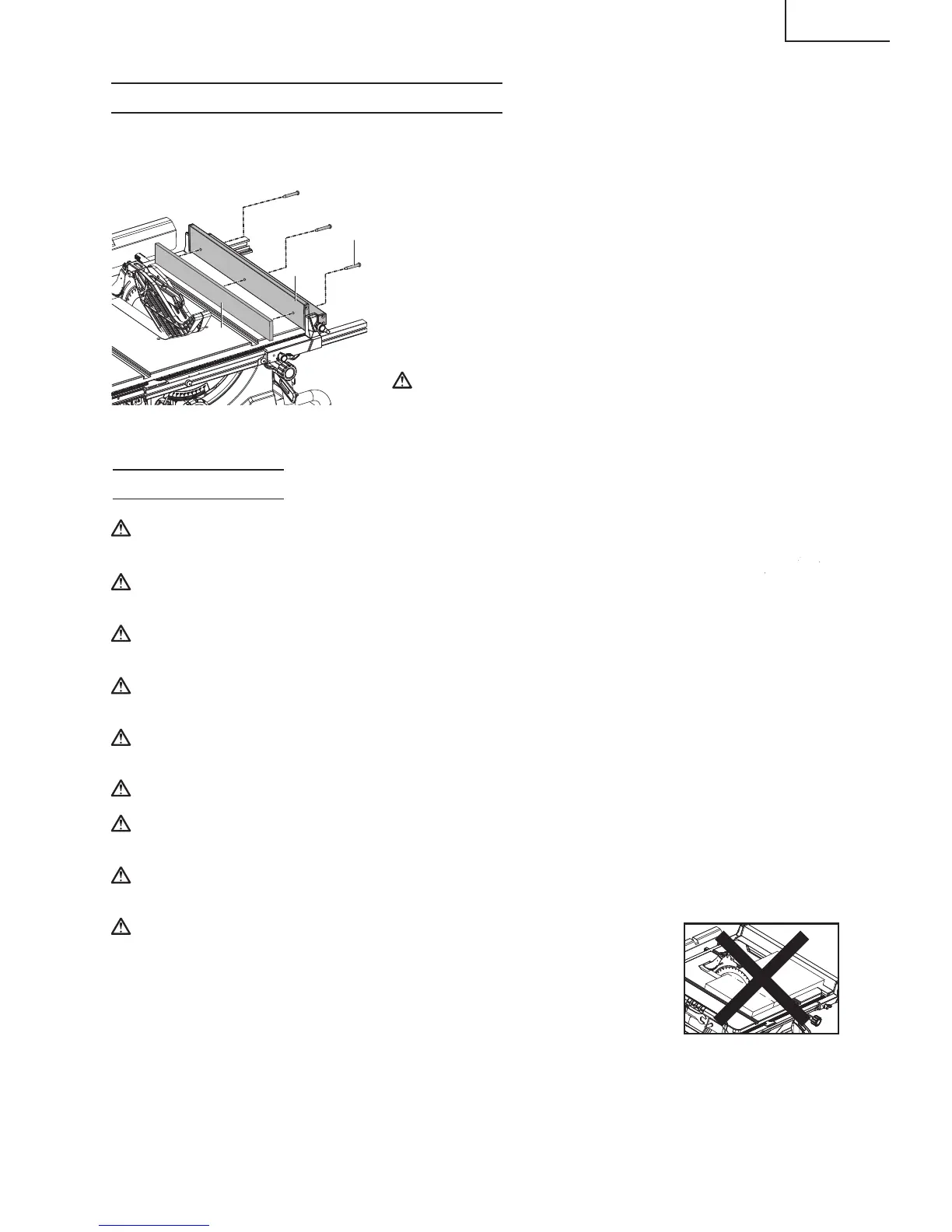

Fig. 26
• Select a piece of wood 3/4 in. (19 mm) thick, 2 3/8 in. (60 mm)
wide and as long as the rip fence.
• Drill a 1/4 in. (6 mm) hole, 1 in. (25 mm) from each end of the
narrow fence.
• Drill a 1/4 in. (6 mm) hole in the middle rip fence 1/2 in. (12.5 mm)
from bottom of auxiliary fence.
• Attach auxiliary fence (A) to the narrow fence (B); place wood
against narrow fence and firmly on the working table.
• From back side of rip fence, secure wood to fence using wood
screws (C) (not included).
An auxiliary fence is a device used to close the gap between rip fence and working table. ALWAYS use an
auxiliary fence when ripping material 1/8 in. (3 mm) or thinner to prevent stock from slipping under fence.
HOW TO MAKE AN AUXILIARY FENCE (FIG. 26)
THROUGH CUTS
35
English
WARNING: Always make sure the blade guard and anti-kickback pawls are in place and working properly when
making these cuts to avoid possible injury.
WARNING: Use extra caution when cutting wood products having slippery surface as the anti-kickback pawls
may not always be effective.
WARNING: DO NOT use blades rated less than the speed of this tool. Failure to heed this warning could result
in personal injury.
WARNING: To avoid kickback, make sure one side of the workpiece is securely against the rip fence during
any rip cut, and hold the workpiece firmly against the miter gauge during any miter cut.
WARNING: DO NOT attempt compound miter cuts, with blade beveled and miter fence angled, until you are
thoroughly familiar with the basic cuts and understand how to avoid kickback.
WARNING: DO NOT attempt to make any cuts not covered here.
WARNING: Using rip fence as a cutoff gauge when cross cutting will result in kickback which can cause serious
personal injury.
WARNING: NEVER make freehand cuts (cuts without miter gauge or rip fence). Unguided workpieces can result
in serious injury.
WARNING: Never make through cuts without the blade guard in place. Failure to
heed this instruction could result in serious personal injury.
