• To fold the stand for moving, return fence rails and outfeed support to inner position. Store the accessories
securely.
• Grasp the stand support assembly (A) and lift it up until two stand legs (B) (located on side of the wheel)
leaving off the ground, then fold in two stand legs (B). To do this, push the lock pins (C) until they unlock
the stand legs (B) from the holes, then swing the stand legs (B) upward until the stand legs are locked with
the locking pins (C) engage the holes.
• Grasp the handle I (D) and tilt saw back onto wheels until the stand is balanced on the wheels (E) and
stand support assembly (A). (Fig. 14b-14c)
• Fold in other two stand legs (F). To do this, push the locking pins (G) until they unlock the stand legs (F)
from holes, then swing the stand legs downward until the stand legs are locked with the locking pins (G)
engage the holes.
• Grasp the handle I (D) firmly and tilt saw to you, push the saw to the desired location (Fig. 14e) then either
open the stand or store the saw (Fig. 14d & 14f) in a dry environment.

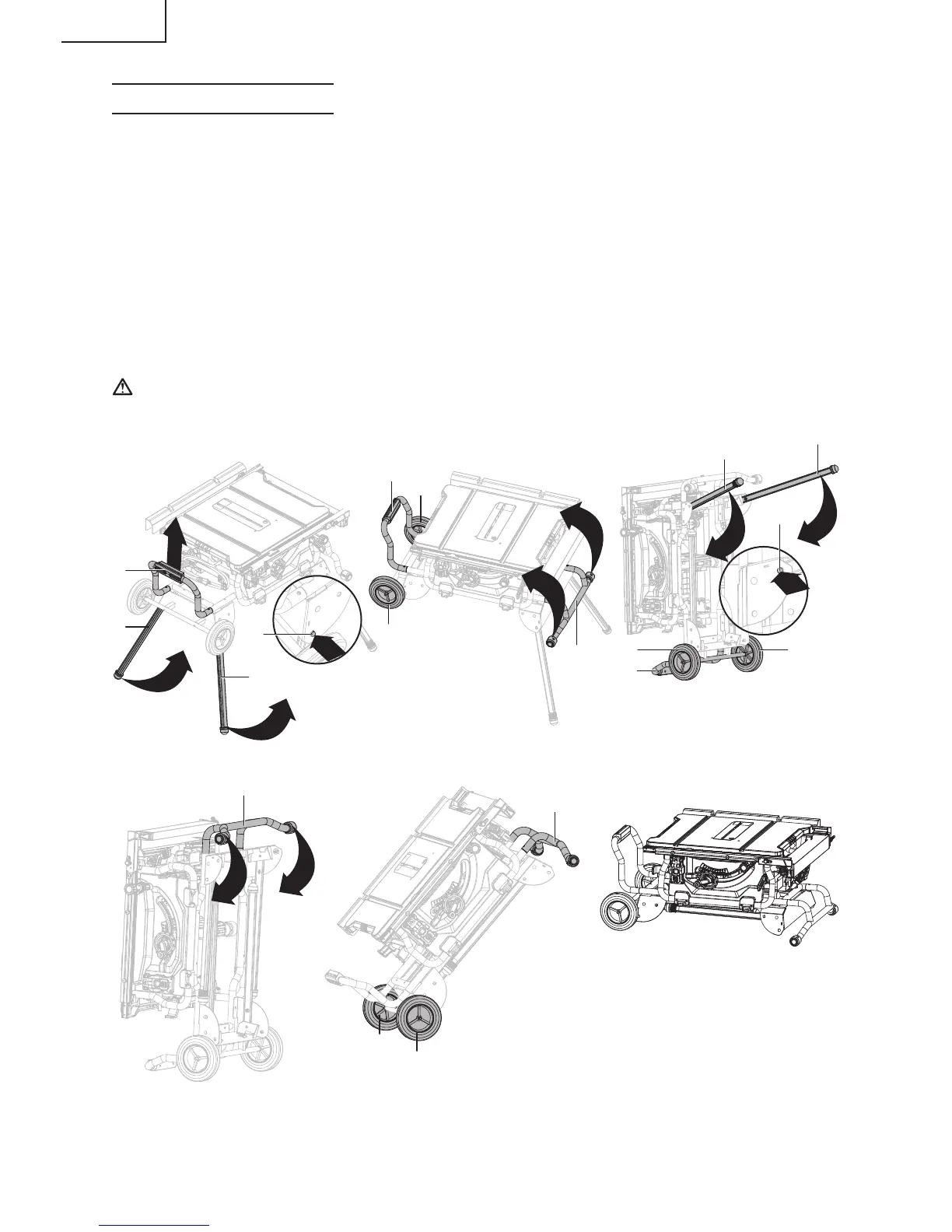

FOLDING THE STAND (Fig. 14a-14f)
Fig. 14e
Fig. 14f
WARNING: Keep your fingers clear of the hinge points while folding the stand. Danger of fingers
being crushed or contused.
C
A
A
D
D
F
F
G
E
E
E
E
D
B
C
E
A
B
E
Fig. 14a
Fig. 14b
Fig. 14c
Fig. 14d
