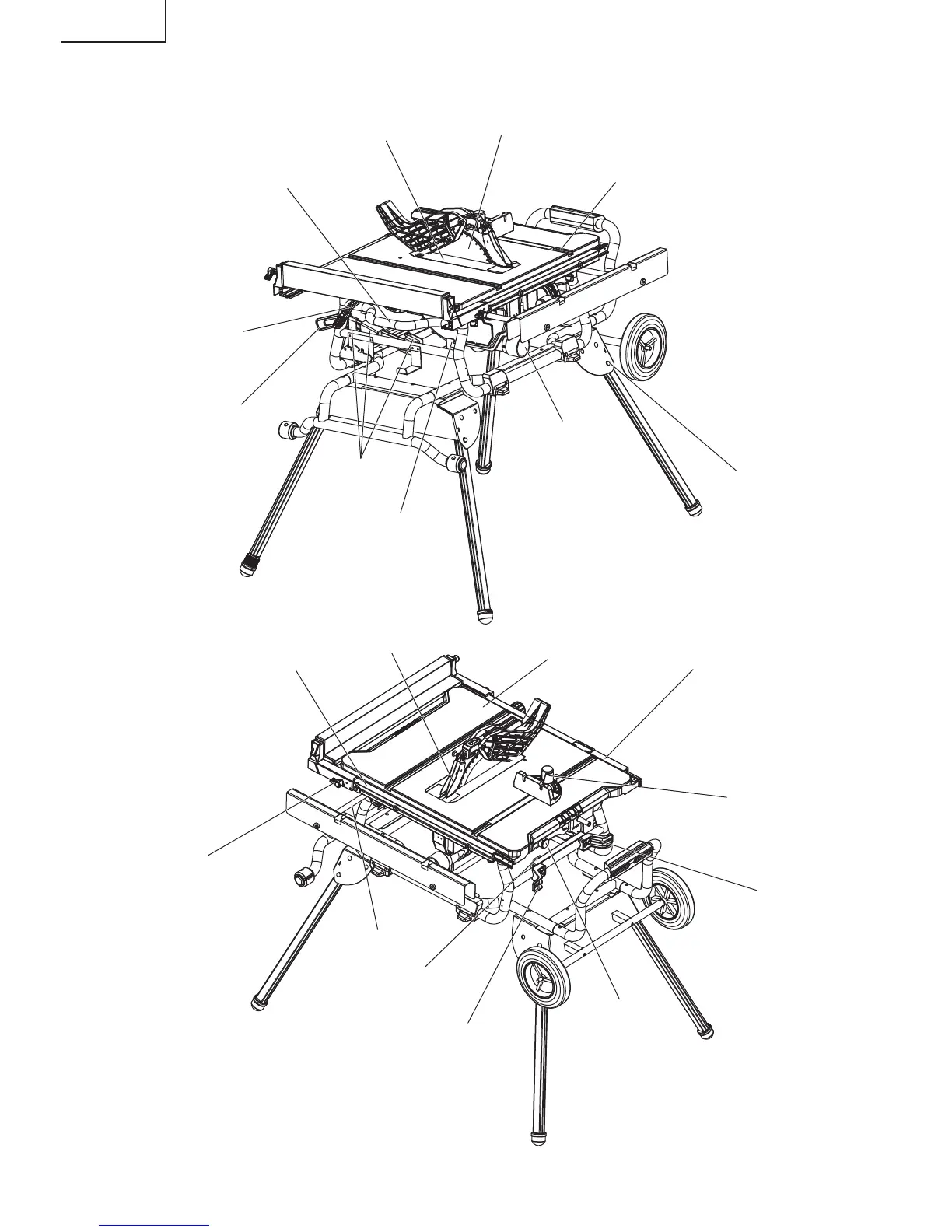

58
Français
Bouton de verrouillage
du guide à onglets
Rail avant
Table de travail
Rangement de la
clé pour lame
Lame de scie
Rainure du guide
à onglets
Levier de verrouillage
du guide latéral
Poussoir
Rangement du
poussoir
Goupille de sécurité
Rangement du
guide à onglets
Rangement du
cordon d’alimentation
Rangement du
cordon d’alimentation
Bouton de verrouillage
du guide longitudinal
Plaque amovible
Tige rallonge
Couteau diviseur
Rail arrière
Poignée II
Orifice d’extraction
de la poussière
Rangement des
griffes anti-recul
57
59
Table of Contents
English
1
Safety Instructions and Instruction Manual
1
Table of Contents
2
Important Safety Information
3
Safety Symbols
3
General Safety Information
4
Proposition 65 Warning
4
Safety Instructions
4
General Safety Rules
5
Specific Safety Rules
7
Double Insulation
9
Electrical Connection
9
Guidelines for Extension Cords
9
Minimum Gage for Cord Sets
10
Glossary of Terms
11
Overview
13
Specifications
15
Loose Parts
16
Assembly
17
Unpacking Your Table Saw
17
Items Not Supplied
17
Items Supplied
17
Assemble the Stand
18
Open the Stand
18
To Secure/Level the Stand
19
To Remove/Replace/Align the Table Insert
20
Driving Knife Installation and Position
20
Removing and Installing the Blade
22
Anti-Kickback Pawls and Blade Guard Installation
22
Blade Guard Installation
23
Outfeed Support Assembly Installation
24
Rip Fence Installation
24
Miter Gauge Installation
25
To Store the Table Saw Accessories
25
Folding the Stand
26
Connect to a Dust Collection System
27
Operation
28
Operating Components
28
Causes of Kickback
28
Precautions of Kickback
29
Switch Assembly
29
Overload Protection
30
Changing Blade Depth
30
Changing Blade Angle (Bevel)
30
Rip Fence
31
Fence Rails Locking Lever
31
Narrow Fence
31
Miter Gauge
32
Outfeed Support
32
Cutting Aids
32
Push Sticks
32
How to Make an Additional Push Stick
33
Featherboards
33
Push Blocks
33
How to Make a Featherboard
34
How to Make a Push Block
34
How to Make an Auxiliary Fence
35
Through Cuts
35
Cutting Tips
36
Making Cuts
36
Types of Cuts
36
Making a Cross Cut
36
Making a Rip Cut
37
Making a Miter Cut
37
Making a Bevel Cross Cut
37
Making a Bevel Rip Cut
37
Making a Compound (Bevel) Miter Cut
38
Making a Large Panel Cut
38
Dados and Oter Non-Through Cuts
38
Making a Non-Through Cut
38
Make a Dado Cut
39
Dust Collection
39
Adjustments
40
Driving Knife and Saw Blade Alignment
40
Aligning Rip Fence to Blade
41
Bevel Adjustment
42
Adjusting Rip Fence Scale Indicator
43
Adjusting Bevel Indicator
43
Maintenance
44
Lubrication
44
Service and Repairs
44
Troubleshooting
45
Parts List
136
French
46
Français
46
Symboles de Sécurité
46
Consignes de Sécurité
47
Glossaire des Termes
55
Vue D'ensemble
57
Caractéristiques Techniques
59
Pièces Détachées
60
Assemblage
61
Fonctionnement
72
Réglages
85
Entretien
89
Guide de Dépannage
90
Liste des Pièces
136
Spanish
91
Español
91
Símbolos de Seguridad
91
Instrucciones de Seguridad
92
Reglas de Seguridad Generales
93
Guarde Estas Instrucciones
99
Glosario de Términos
100
Descripción General
102
Especificaciones
104
Piezas Sueltas
105
Ensamblaje
106
Operación
117
Ajustes
130
Mantenimiento
134
Resolución de Problemas
135
Lista de Piezas
136
