Utility 6-9
□ Updating Firmware/Bootcode
・Windows Server 2003/Windows Server 2008 Environment
The following is firmware/bootcode update procedure by HBAnyware version 4.0a32
1. Select [Batch] on the menu bar and then select [Download HBA Firmware].
2. The "Select Firmware File" dialog box appears. Select a firmware or bootcode file and then click [Open].

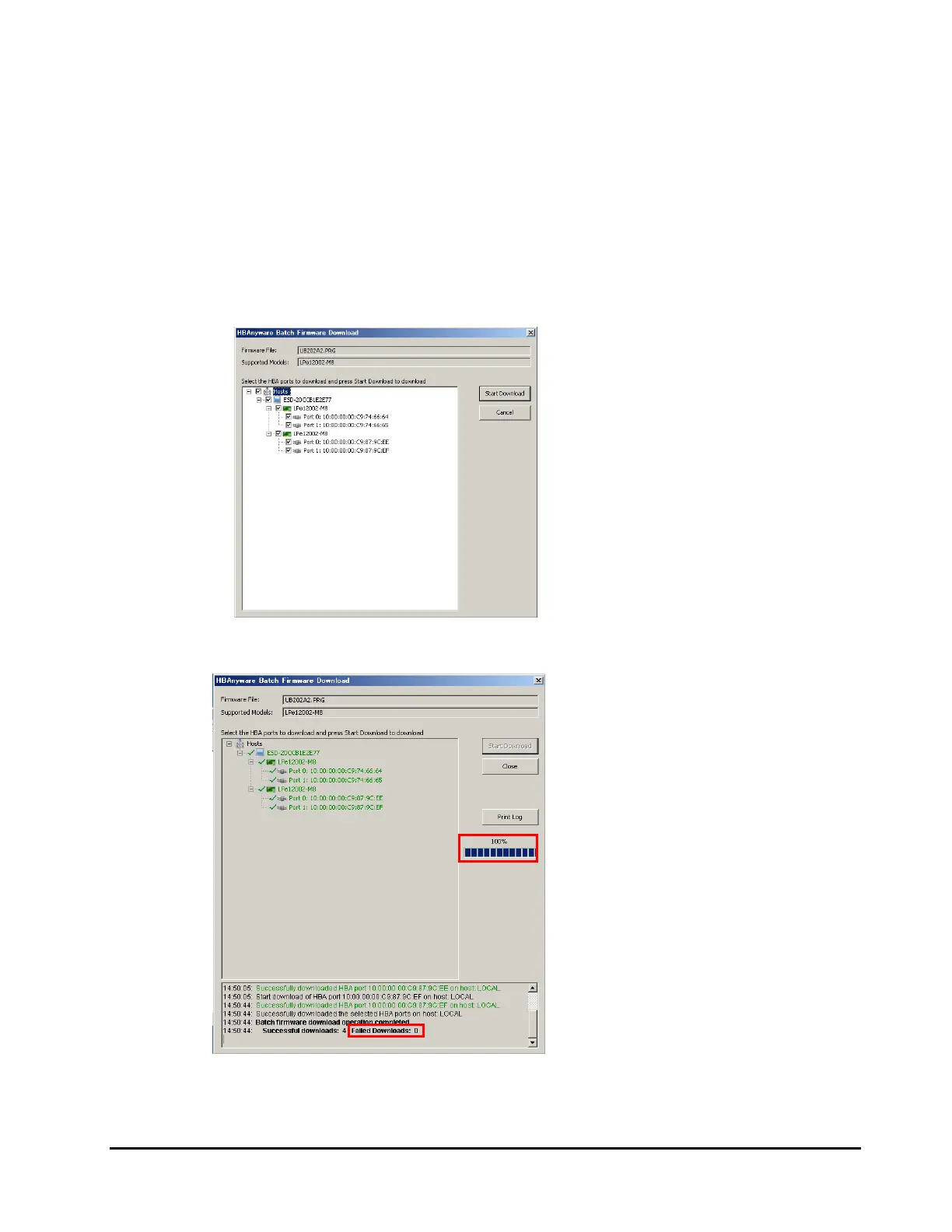

3. The tree appears in the screen as shown below. Select/unselect the checkbox corresponding to the adapter or adapter
port to select the target to be updated.
4. Click [Start Download] to start updating.
5. Check that the process bar indicates "100%" and "Failed Downloads: 0" is indicated. Then click [Close] to exit.
