Setting Up
Arrangement
WARNING • Install the projector in a suitable environment according to
instructions of the “User’s Manual – Safety Guide” and this manual.
• The power outlet should be close to the projector and easily accessible.

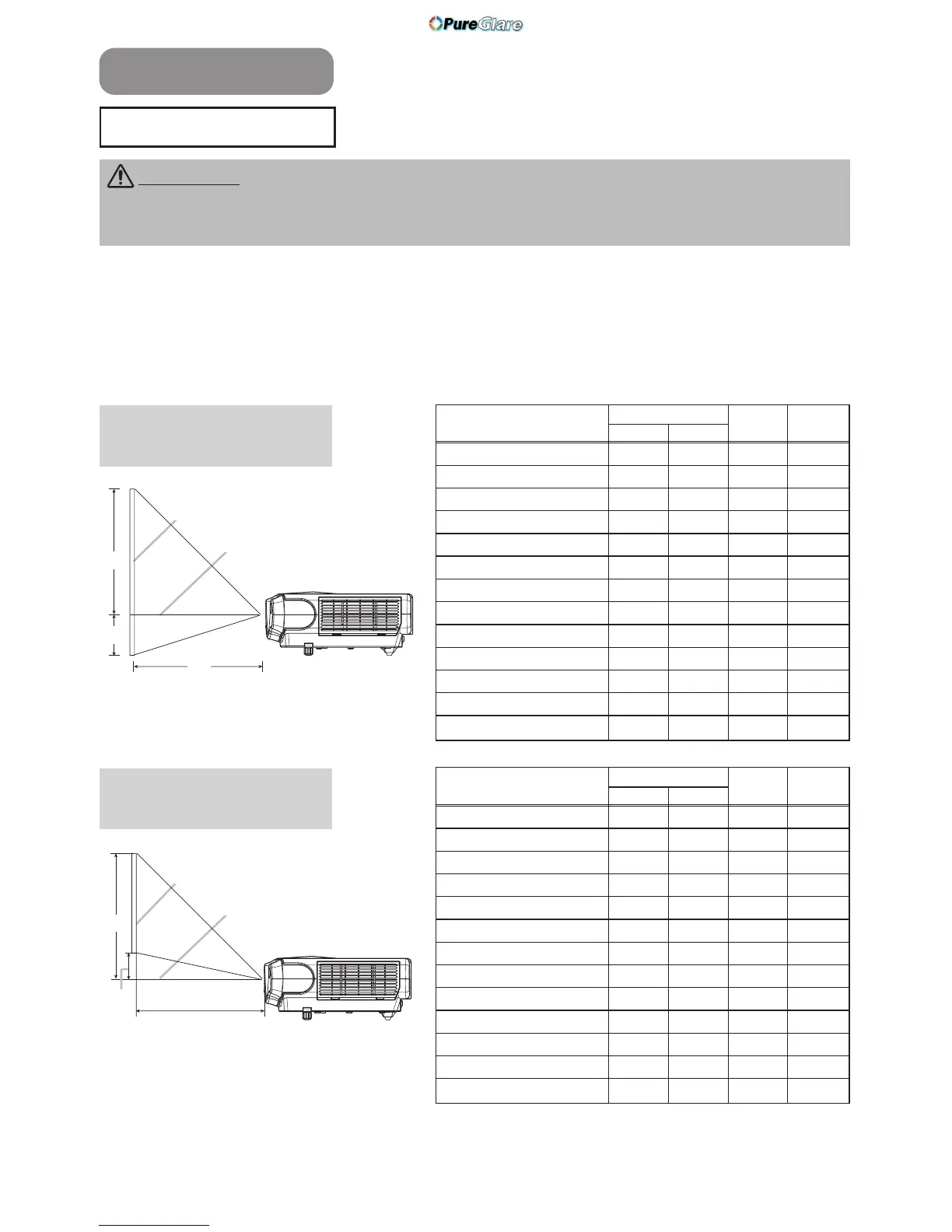

Refer to the illustrations and tables below to determine the screen size and projection
distance.
The values shown in the table are calculated for a full size screen:800×600
(a):Distance from the projector to the screen (±10%)
(b):Distance from the lens center to the bottom of the screen (±10%)
(c):Distance from the lens center to the top of the screen (±10%)
Screen Size [inch (m)]
(a) [inch (m)]
(b)
[inch (cm)]
(c)
[inch (cm)]
Min. Max.
30 (0.8) 35(0.9) 42(1.1) 2(5) 16(41)
40 (1.0) 47(1.2) 56(1.4) 2(6) 22(55)
50 (1.3) 59(1.5) 71(1.8) 3(8) 27(69)
60 (1.5) 71(1.8) 85(2.2) 4(9) 32(82)
70 (1.8) 83(2.1) 99(2.5) 4(11) 38(96)
80 (2.0) 95(2.4) 114(2.9) 5(12) 43(110)
90 (2.3) 107(2.7) 128(3.3) 5(14) 49(123)
100 (2.5) 119(3.0) 143(3.6) 6(15) 54(137)
120 (3.0) 143(3.6) 171(4.4) 7(18) 65(165)
150 (3.8) 179(4.6) 215(5.5) 9(23) 81(206)
200 (5.0) 240(6.1) 287(7.3) 12(30) 108(274)
250 (6.3) 300(7.6) 359(9.1) 15(38) 135(343)
300 (7.5) 360(9.2)
431(10.9)
18(46) 162(411)
(a)
(c)
(b)
Lens center
Screen
Reference for
the 4:3 aspect ratio
Screen Size [inch (m)]
(a) [inch (m)]
(b)
[inch (cm)]
(c)
[inch (cm)]
Min. Max.
30 (0.8) 38(1.0) 46(1.2) 0(1) 15(39)
40 (1.0) 51(1.3) 61(1.6) 1(2) 20(51)
50 (1.3) 64(1.6) 77(2.0) 1(2) 25(64)
60 (1.5) 77(2.0) 93(2.4) 1(2) 30(77)
70 (1.8) 90(2.3)
108(2.8)
1(3) 35(90)
80 (2.0) 104(2.6)
124(3.2)
1(3) 41(103)
90 (2.3) 117(3.0)
140(3.6)
1(4) 46(116)
100 (2.5) 130(3.3)
155(3.9)
2(4) 51(129)
120 (3.0) 156(4.0)
187(4.7)
2(5) 61(154)
150 (3.8) 196(5.0)
234(5.9)
2(6) 76(193)
200 (5.0) 216(6.6)
312(7.9)
3(8) 101(257)
250 (6.3) 327(8.3)
391(9.9)
4(10) 127(322)
300 (7.5)
393(10.0)
469(11.9)
5(12) 152(386)
(a)
(c)
(b)
Lens center
Screen
Reference for
the 16:9 aspect ratio
Side View
Side View
