4
Strap Rivet
Strap
hole

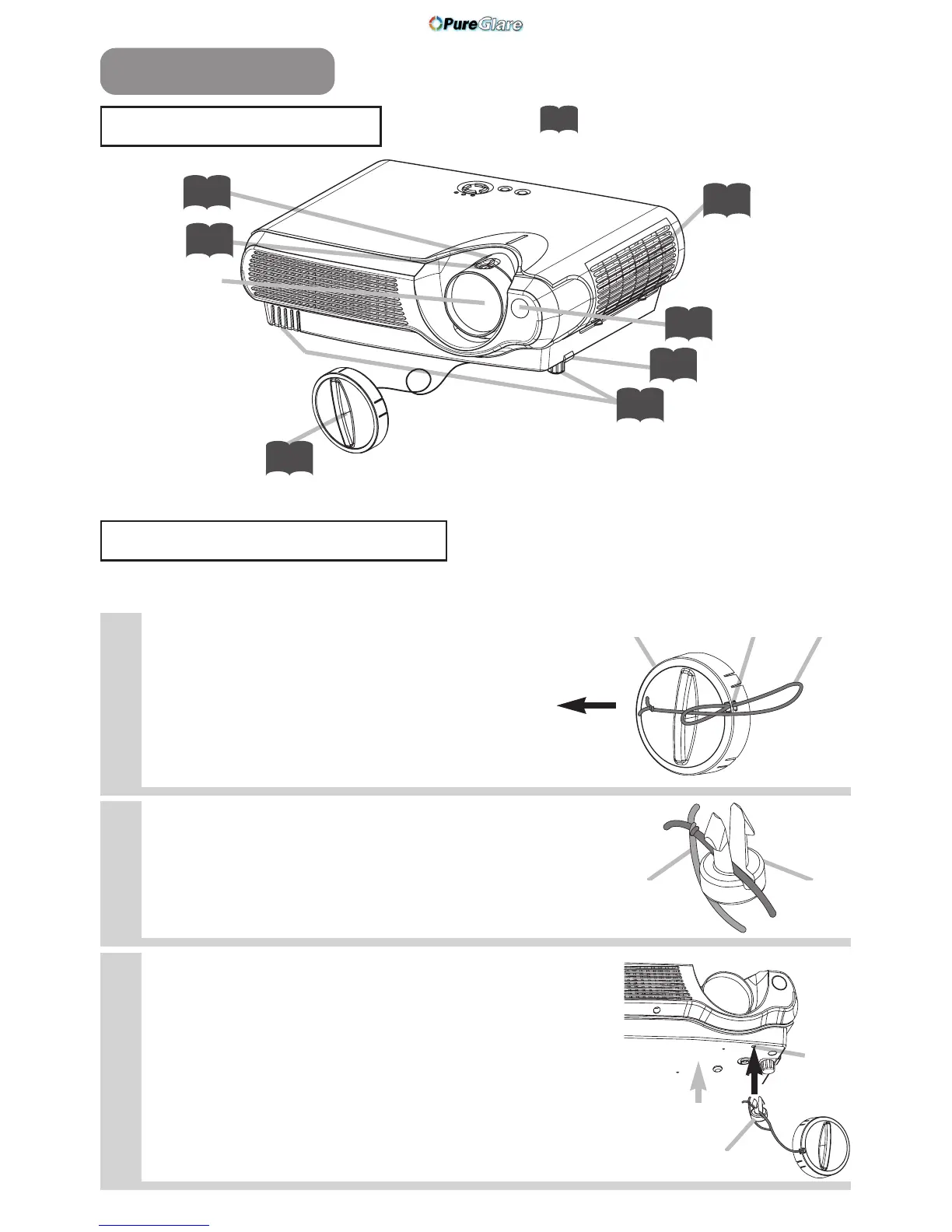

Part Names
The Projector
Zoom ring
15
Focus ring
15
Air filter cover
(An air filter is
inside.)
34
Elevator button
8
Elevator feet
8
Indicates the corresponding
reference page
Lens cap
14
Lens
(The picture is
projected from
here.)
Remote sensor
13
Projector (Front/Right)
Fastening The Lens Cap
To avoid losing, please fasten the lens cap to the projector using the strap.
1
Fix the strap to the strap ring of lens
cap, as the right drawing.
2
Put one piece of the strap into the
groove on rivet, as the right drawing.
3
Push the rivet into the strap hole.
Lens cap Strap ring Strap
Pull
Rivet
Push in
(Bottom side)
To Next Page
