34
CP-WX11000 ( P6WX )
6. Attaching the lens (2)
Support the lens installed in the LCD
projector and move the lock lever on the
projector as far as it will go to the right
(until the lock lever clicks into the locked
position).
Caution:
ŷ To prevent the lens from falling off,
after attaching the lens, check that
it is securely mounted and that the
lock lever does not move.
Ŷ Lens replacement should be performed by a service engineer.
Ŷ When changing the lens, place the LCD projector right way up on a horizontal surface. Do not change the lens with the projector facing upwards or downwards or when
the projector is suspended.

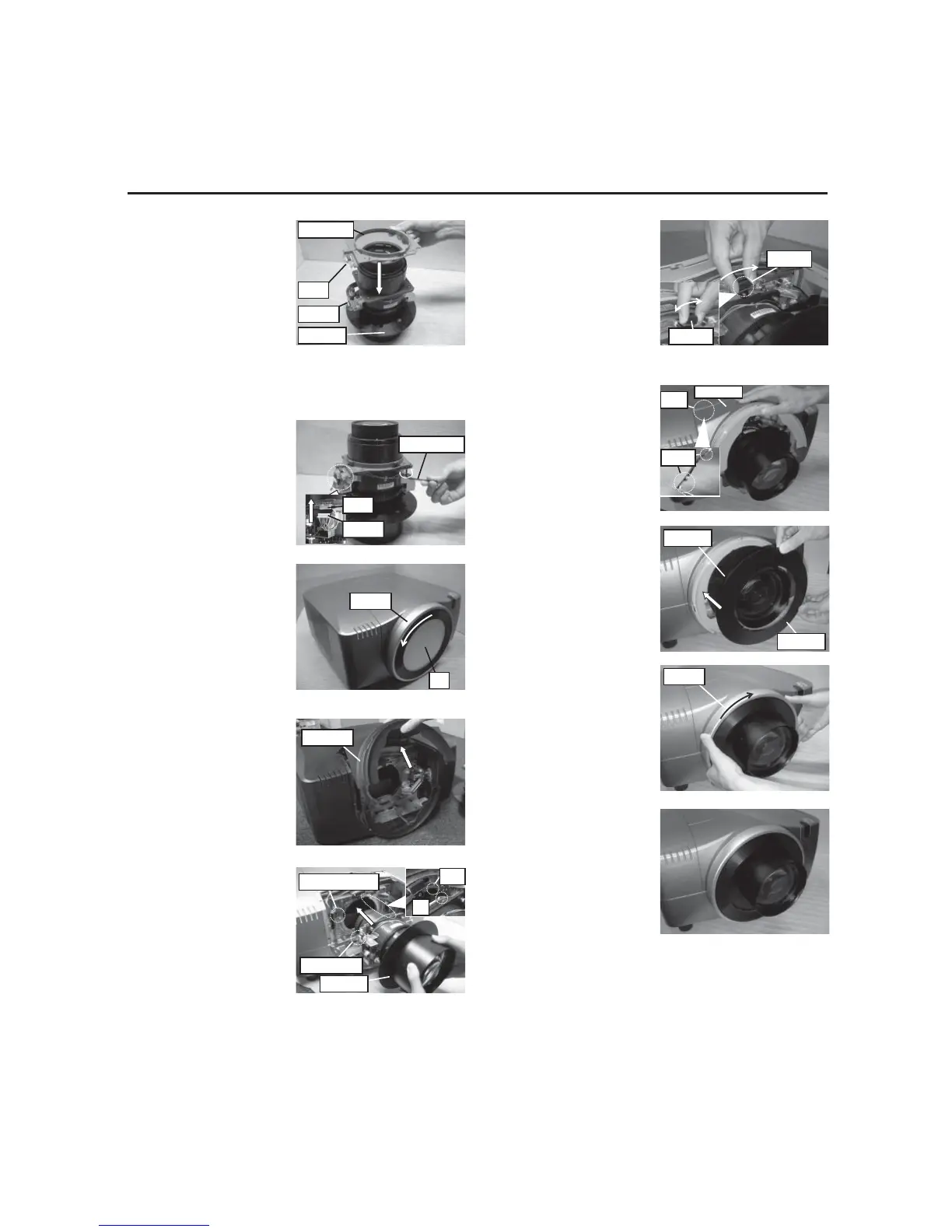

Attaching the SD-804/LL-805/UL-806 Lens When Unpacking the LCD Projector
1. Preparing to attach the lens (1)
Take the lens adapter supplied with the
LCD projector and mount it so that the
connector on the lens is aligned with the
socket of the lens adapter.
Caution:
ŷ Be careful not to touch the surface
of the lens.
ŷ Do not touch the socket of the lens
adapter or subject it to impact as
this may lead to malfunction.
ŷ Do not hold the lens by the lens
shade as this may lead to injury or malfunction.
ŷ Be sure to remove the tape À xing the hexagonal screw on the lens.
ŷ Be sure to remove the lens cap. Installing the lens in the LCD projector with the
lens cap on may lead to malfunction.
2. Preparing to attach the lens (2)
Using the hexagon wrench supplied
with the LCD projector, attach the lens
adapter with the four hexagon screws on
the lens.
Connect the connector on the lens to the
socket of the lens adapter.
3. Preparing to attach the lens (3)
Unscrew the front ring from the LCD
projector and remove the cap.
4. Preparing to attach the lens (4)
Lift off the front cover to remove it.
5. Preparing to attach the lens (1)
Make sure that the terminal on the lens
and the terminal on the LCD projector are
aligned.
Support the lens with the lens adapter
attached and install it in the LCD
projector so that the adapter rib ¿ ts into
the groove of the projector.
Caution:
ŷ Do not hold the lens by the lens
shade as this may lead to injury or
malfunction.
ŷ Take care to avoid hitting the surface of the lens on the LCD projector when
attaching the lens as this may lead to malfunction.
7. Assembling the main unit parts (1)
Insert the two catches on the front cover
into the LCD projector body to attach the
front cover.
8. Assembling the main unit parts (2)
Have the blind sheet supplied with the
lens ready and mount it on the lens
shade.
Mount the blind sheet with its matte side
facing out.
9. Assembling the main unit parts (3)
Screw on the front ring.
Caution:
ŷ Take care not to get the blind sheet
trapped when À tting the front ring
as this may lead to malfunction.
10. Lens attachment is completed.
Socket
Connector
Hexagon wrench
Front cover
Cap
Front ring
Terminal on projector
Terminal on lens
Lens shade
Groove
Rib
Lock lever
Lock lever
Front cover
Catch
Catches
Blind sheet
Lens shade
Front ring
Lens adapter
Socket
Connector
Lens shade
Lens replacement procedure
