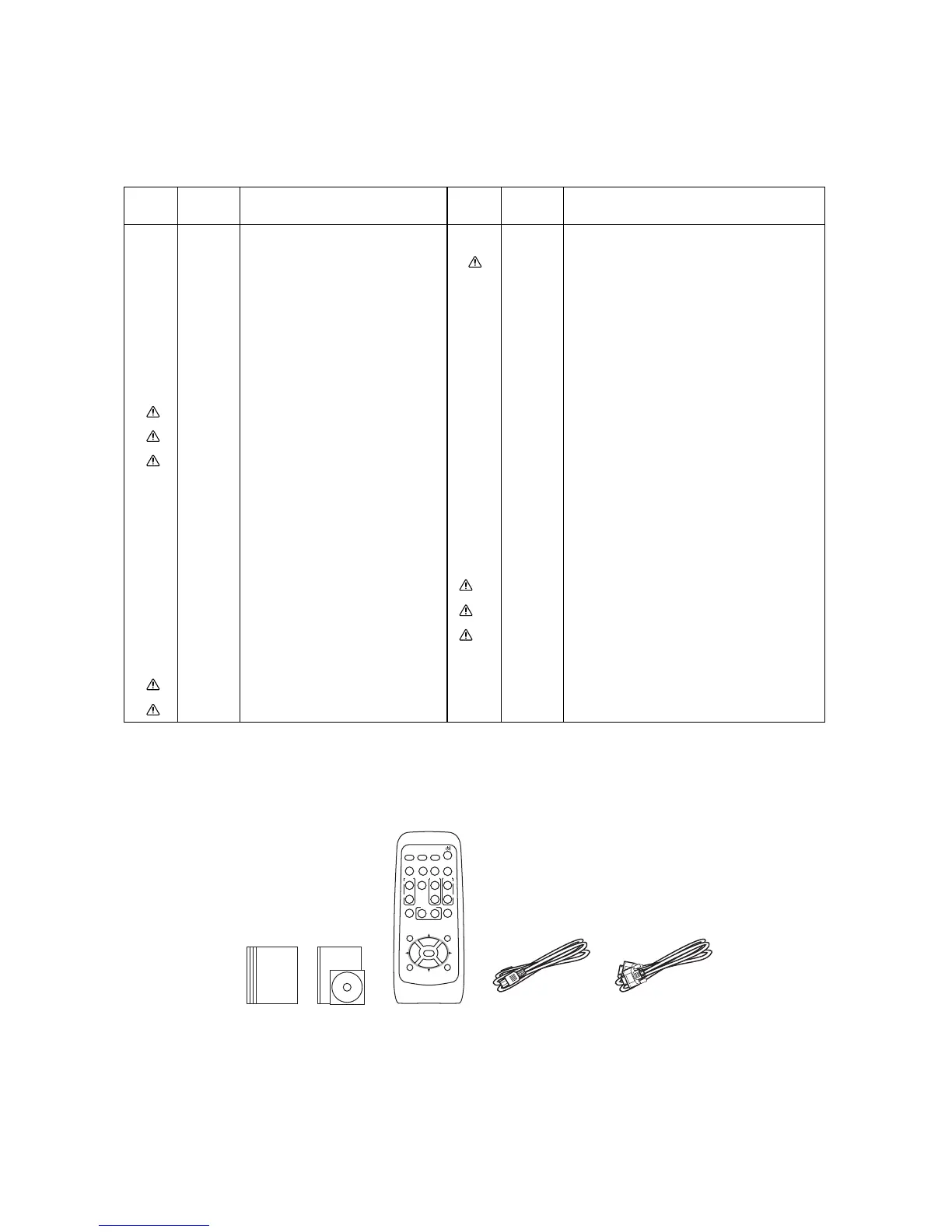

CP-X2511N(C15I-25N2) / CP-X3011N(C15I-30N2) / CP-X4011N(C15I-40N2) / CP-X2011N(C15-20N2) / ED-X45N(C15-20N2)
*1 Be sure to carry out the lamp fan adjustment.
See the chapter 4-2.
[ CP-X3011NU / CP-X3011NE ]
SYMBOL
No.
PARTS
No.
DESCRIPTION
SYMBOL
No.
PARTS
No.
DESCRIPTION
1 QD69521 UPPER CASE ASS'Y C15 21 GK01811 SPEAKER
2 PC07801 CONTROL BUTTON C15 22 FH00442 THERMAL SWITCH ASS'Y
3 QD65971 LAMP DOOR ASS'Y C15 23 QD66031 FILTER COVER C15
4 QD69531 BOTTOM CASE ASS'Y N2 C15 24 MU06481 AIR FILTER S C15
5 QJ05871 ADJUST FOOT ASS'Y C15 25 PH46963 LENS CAP ASS'Y C16
6 MJ02872 D-SUB SCREW 26 UX36311 LCD/PRISM ASS'Y C15I-30Z
7 AZ00253 THERMISTOR A 27 KQ06211 LENS C15C
8 GS01671 DC FAN SF8028H-ZH3P-L341 28 JP69494 PWB ASS'Y BATTERY C15N2
9 GS01341 DC FAN BM6025 29 JP69495 PWB ASS'Y RGB C15N2
10 GS01521 DC FAN T80T12U 30 JP69496 PWB ASS'Y SENSOR-B C15N2
11 UX35862 DICHROIC OPTICS UNIT C15-25 31 DT01021 LAMP UNIT ASS’Y C15-20
*1 12 JP70631 PWB ASS'Y MAIN C15IN2 32 KS23511 IRIS UNIT C15
13 JP69493 PWB ASS'Y REMOTE C15N2 A QT53911 INSTRUCTION MANUAL
14 JP69492 PWB ASS'Y INPUT C15N2 B HL02483 REMOTE CONTROL UNIT C14B 007
15 EA02264R CPC40 CONNECTOR UPPER CONTACT C EV01674 POWER SUPPLY CORD(EUROPE TYPE) W/CORE
16 EA05281R CPC40 CONNECTOR C EV01684 POWER SUPPLY CORD(UK TYPE) W/CORE
17 CK57661R IC THS7327PHPR C EV01664 POWER SUPPLY CORD(USA TYPE) W/CORE
18 CK34401R IC SN74LV14APWR D EW08911 RGB-D CABLE(15PIN MALE TO 15 PIN MALE)
19 HA02852 POWER UNIT(BALLAST) C15 NX32451 COTTON STICK BB-014
20 HA03051 POWER UNIT(CIRCUIT) C15N2 NX05742 COTTON STICK L70
Power Cord
RGB Cable
Remote Control
or
Instruction manual
A
C
D
B
VIDEO
DOC.CAMERA
KEYSTONE
ASPECT SEARCH
BLANK
MUTE
MY BUTTON
POSITION
12
ESC
ENTER
MENU
RESET
COMPUTER
MY SOURCE/
AUTO
MAGNIFY
PAGE
UP
VOLUME
DOWN
ON
OFF
㧗
FREEZE
To Next Page
