60
CP-X2511N(C15I-25N2) / CP-X3011N(C15I-30N2) / CP-X4011N(C15I-40N2) / CP-X2011N(C15-20N2) / ED-X45N(C15-20N2)
SYMBOL
No.
PARTS
No.
DESCRIPTION
SYMBOL
No.
PARTS
No.
DESCRIPTION
1 QD69523 UPPER CASE ASS'Y C15 21 GK01811 SPEAKER
2 PC07801 CONTROL BUTTON C15 22 FH00442 THERMAL SWITCH ASS'Y
3 QD65971 LAMP DOOR ASS'Y C15 23 QD66031 FILTER COVER C15
4 QD69531 BOTTOM CASE ASS'Y N2 C15 24 MU06481 AIR FILTER S C15
5 QJ05871 ADJUST FOOT ASS'Y C15 25 PH46963 LENS CAP ASS'Y C16
6 MJ02872 D-SUB SCREW 26 UX36521 LCD/PRISM ASS'Y C15I-25B
7 AZ00253 THERMISTOR A 27 KQ06211 LENS C15C
8 GS01671 DC FAN SF8028H-ZH3P-L341 28 JP69494 PWB ASS'Y BATTERY C15N2
9 GS01341 DC FAN BM6025 29 JP69495 PWB ASS'Y RGB C15N2
10 GS01521 DC FAN T80T12U 30 JP69496 PWB ASS'Y SENSOR-B C15N2
11 UX35862 DICHROIC OPTICS UNIT C15-25 31 DT01021 LAMP UNIT ASS’Y C15-20
*1 12 JP70791 PWB ASS'Y MAIN C15I-25N2 32 KS23511 IRIS UNIT C15
13 JP69493 PWB ASS'Y REMOTE C15N2 A QT53911 INSTRUCTION MANUAL
14 JP69492 PWB ASS'Y INPUT C15N2 B HL02483 REMOTE CONTROL UNIT C14B 007
15 EA02264R CPC40 CONNECTOR UPPER CONTACT C EV01674 POWER SUPPLY CORD(EUROPE TYPE) W/CORE
16 EA05281R CPC40 CONNECTOR C EV01684 POWER SUPPLY CORD(UK TYPE) W/CORE
17 CK57661R IC THS7327PHPR C EV01664 POWER SUPPLY CORD(USA TYPE) W/CORE
18 CK34401R IC SN74LV14APWR D EW08911 RGB-D CABLE(15PIN MALE TO 15 PIN MALE)
19 HA02852 POWER UNIT(BALLAST) C15 NX32451 COTTON STICK BB-014
20 HA03051 POWER UNIT(CIRCUIT) C15N2 NX05742 COTTON STICK L70

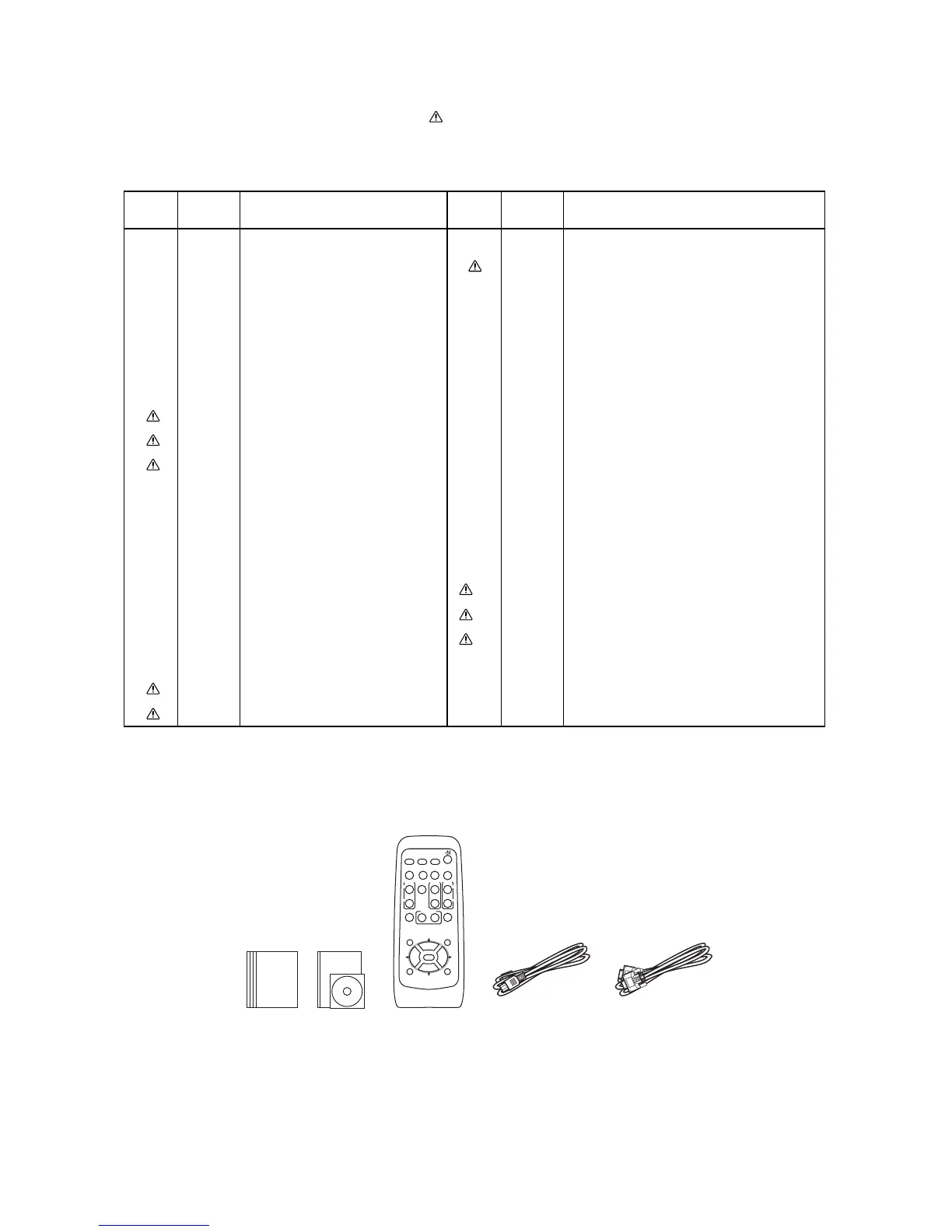

9. Replacement Parts list
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of
there components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don't degrade the safety of the projector
through improper servicing.
Power Cord
RGB Cable
Remote Control
or
Instruction manual
A
C
D
B
VIDEO
DOC.CAMERA
KEYSTONE
ASPECT SEARCH
BLANK
MUTE
MY BUTTON
POSITION
12
ESC
ENTER
MENU
RESET
COMPUTER
MY SOURCE/
AUTO
MAGNIFY
PAGE
UP
VOLUME
DOWN
ON
OFF
㧗
FREEZE
*1 Be sure to carry out the lamp fan adjustment.
See the chapter 4-2.
[ CP-X2511NU / CP-X2511NE ]
