CP-X2511N(C15I-25N2) / CP-X3011N(C15I-30N2) / CP-X4011N(C15I-40N2) / CP-X2011N(C15-20N2) / ED-X45N(C15-20N2)

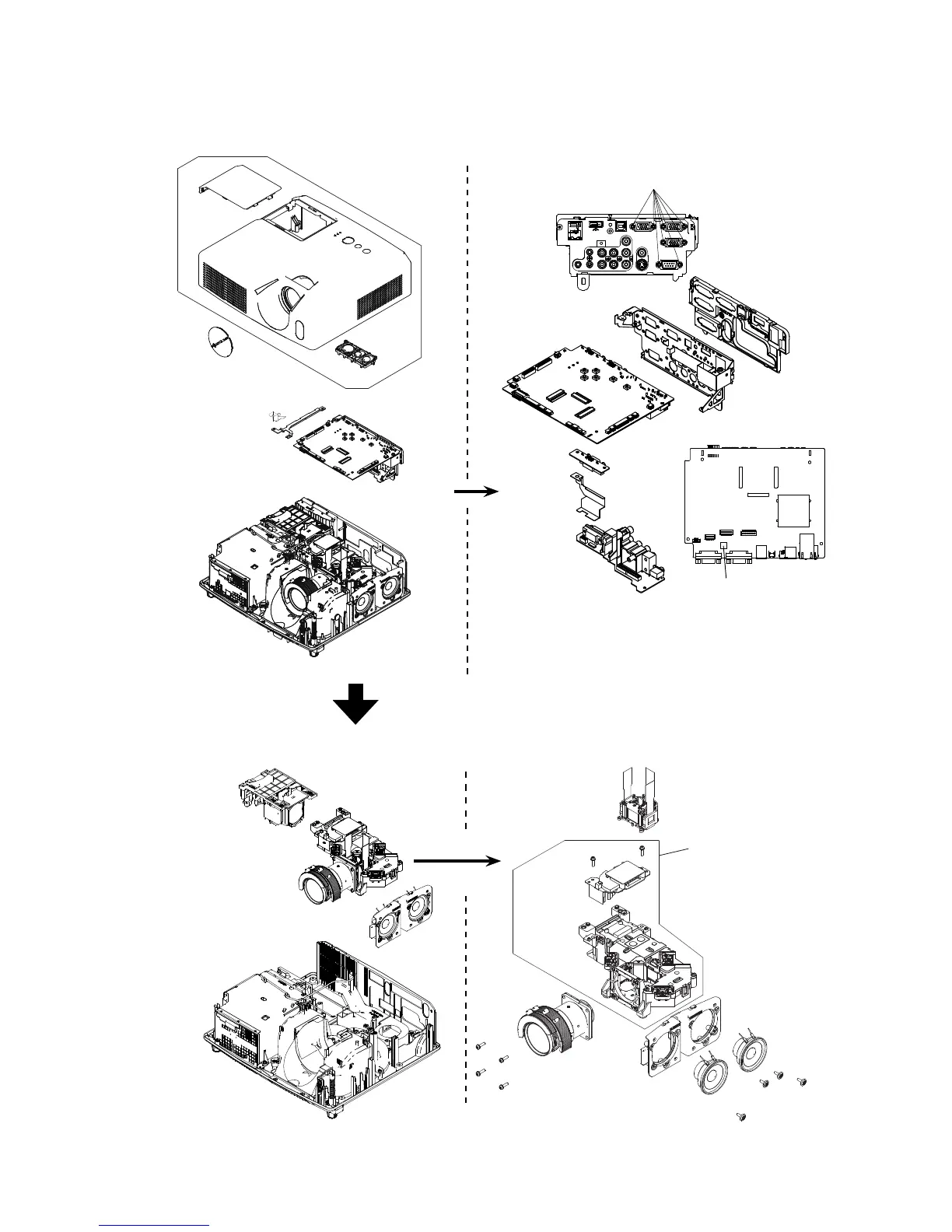

8. Disassembly diagram
PWB assembly MAIN
Terminal
Remove UPPER CASE / PWB assembly MAIN
Remove LAMP / DICHROIC OPTICS UNIT / LENS / SPEAKER
Not necessary to disassemble
the part #11 in repair work for
CP-X2011N and ED-X45N
since the part #32 is not used
in them.
reverse side
Continued on next page
31
27
11
21
21
26
32
25
3
1
2
6

