Service information
Video frame rate setting
The CU-HD500 is switchable for video frame rate between 59.94 Hz and 50 Hz.
The setting method is offered by the dip switch SW6–No.1 on CUH5-MAIN board.
When the dip switch SW6–No.1 is turned ON, the video frame rate can be switched by the dip switch
SW6–No.2.

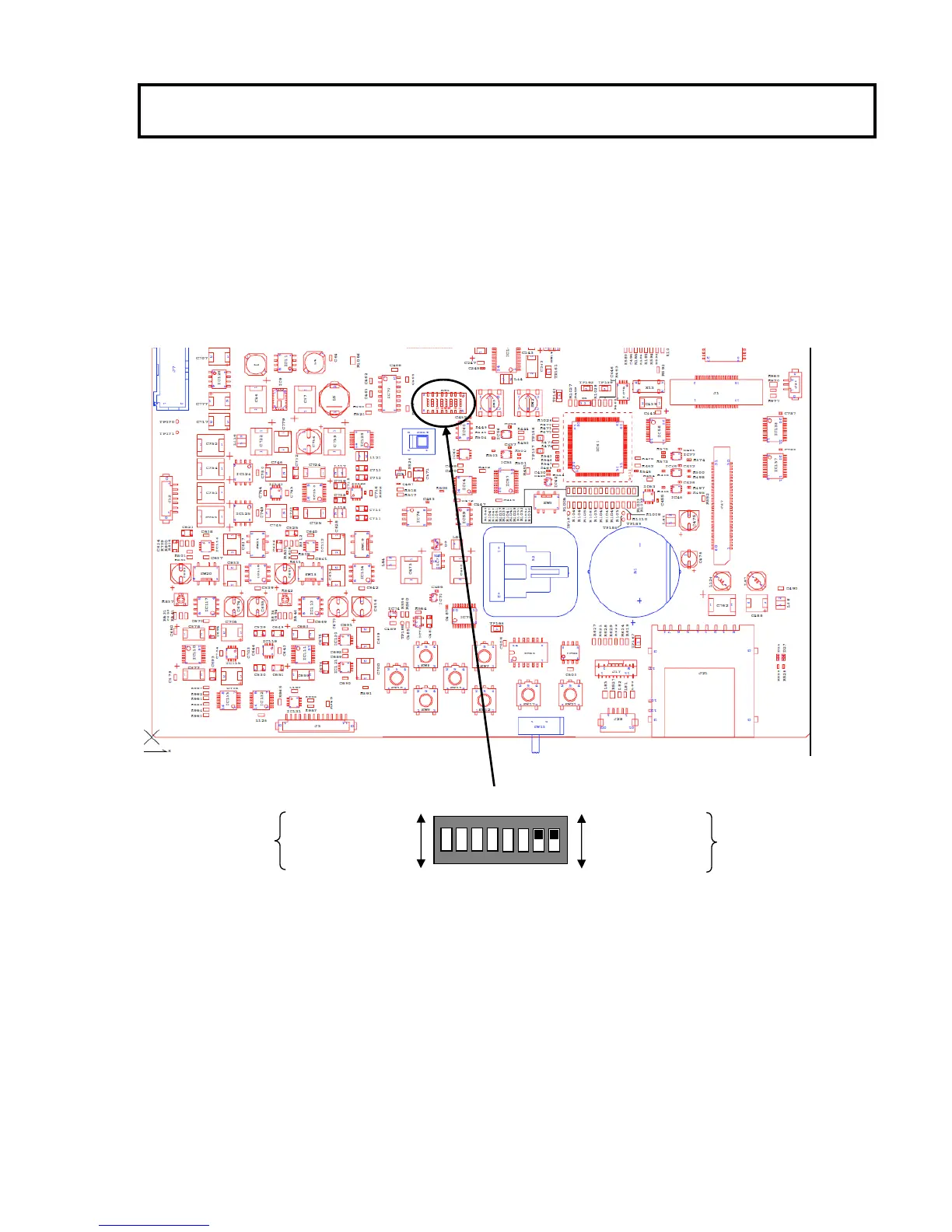

Dip switch setting on CUH5-MAIN Board
N O T IC E
D o not operate the cam era and C C U ,
hen it connects the cam era of the difference video fram e rate.
59.94 Hz
SW6
50 Hz
<SW6–No.2>
Video frame rate
Disable
Enable (default)
<SW6–No.1>
Availability for
SW6-No.2
1
2
3
4
O
N
5
6
7
8
