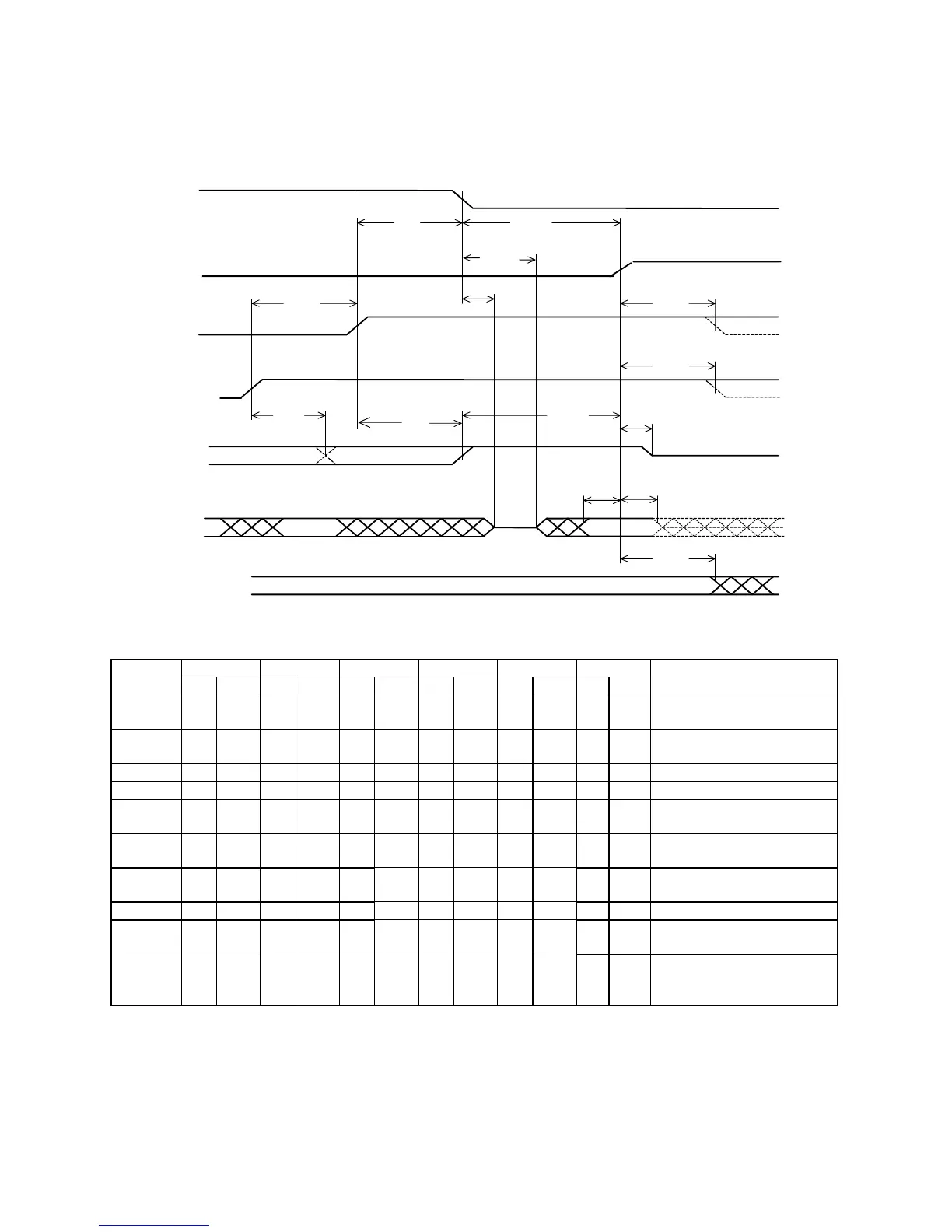

Figure 6-12 Host terminating an Ultra DMA Read
t
CVH
CRC
t
AZ
DMARQ
(device)
DMACK-
(host)
STOP
(host)
HDMARDY-
(host)
DSTROBE
(device)
DD(15:0)
DA0, DA1, DA2,
CS0-, CS1-
t
ACK
t
MLI
t
LI
t
LI
t
IORDYZ
t
ACK
t
ACK
t
ZAH
t
MLI
t
CVS
t
RFS
t
RP
Note: The definitions for the STOP, HDMARDY and DSTROBE signal lines are no longer in effect after
DMARQ and DMACK are negated.
Mode 0(ns) Mode 1(ns) Mode 2(ns) Mode3(ns) Mode4(ns) Mode5(ns) Description
SYMBOL MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX
t
CVS
70 48 31 20 6.7 10 CRC word valid setup time
at sender
t
CVH
6.2 6.2 6.2 6.2 6.2 10 CRC word valid hold time at
sender
t
LI
0 150 0 150 0 150 0 100 0 100 0 75 Limited interlock time
t
MLI
20 20 20 20 20 20 Interlock time with minimum
t
AZ
10 10 10 10 10 10 Maximum time allowed for
output drivers to release
t
ZAH
20 20 20 20 20 20 Minimum delay time for
output drivers turning on
t
RFS
75 70 60 60 60 50 Ready-to-final-STROBE
time
t
RP
160 125 100 100 100 85 Ready-to-pause time
t
IORDYZ
20 20 20 20 20 20 Maximum time before
releasing IORDY
t
ACK
20 20 20 20 20 20 Setup and hold times before
assertion and negation of
DMACK_
