6.2 Physical Interface
6.2.1 Connector
This device has a 2mm pitch interface connector which contains a power line. The connector
location is shown in Figure 6-3.
Table 6.1 Connector Parts List
Name Parts number of recommended type
Interface cable side
Signal Connector
Receptacle
Molex 87259-4413 or equivalent
Cable AWG#28 or equivalent
Drive side
Signal Connector
Plug
Molex 87400-5005 or equivalent

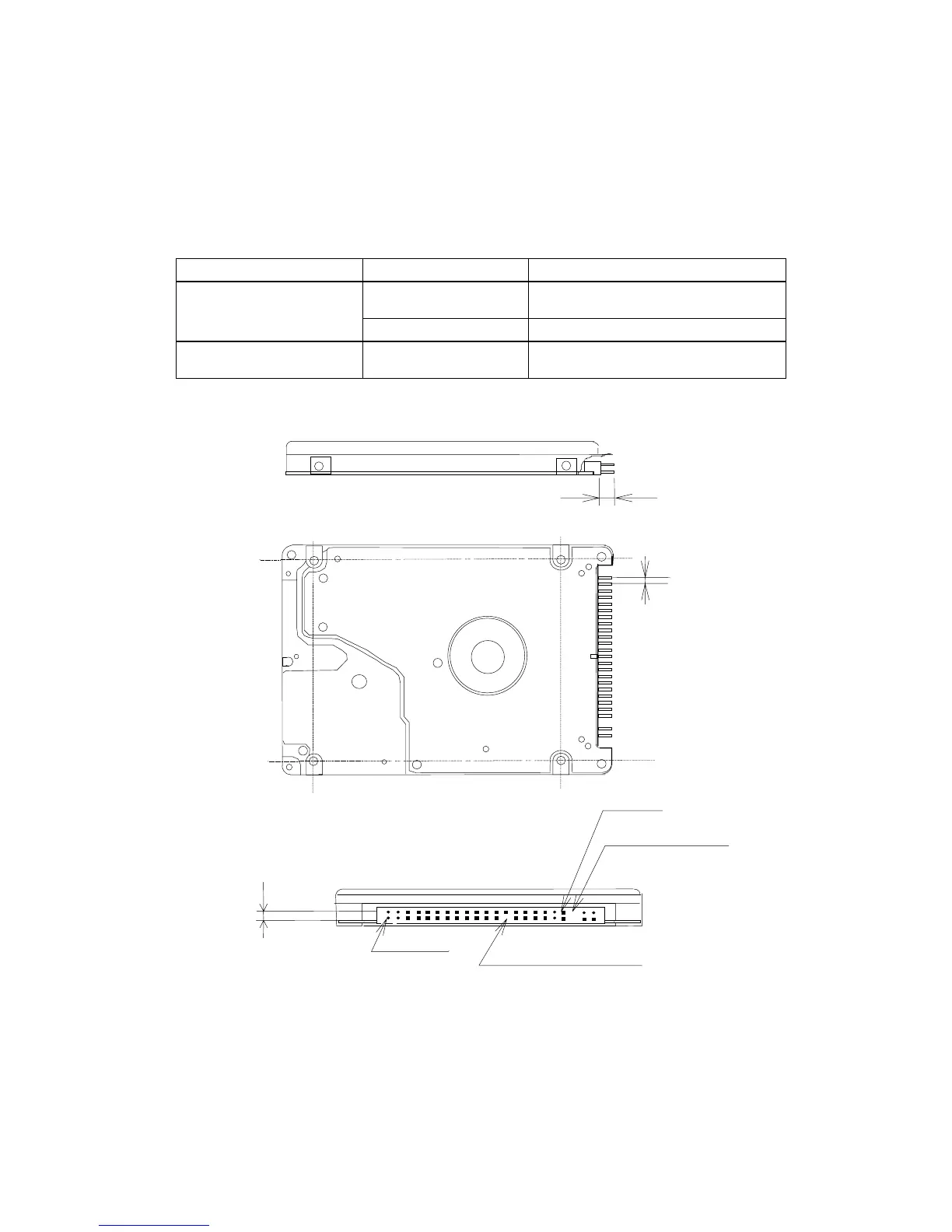

Figure 6-3 Connector Location
2 mm
PIN44
PIN20 REMOVED(KEY)
PINS REMOVED(KEY)
PIN1
3.86 mm
2 mm
