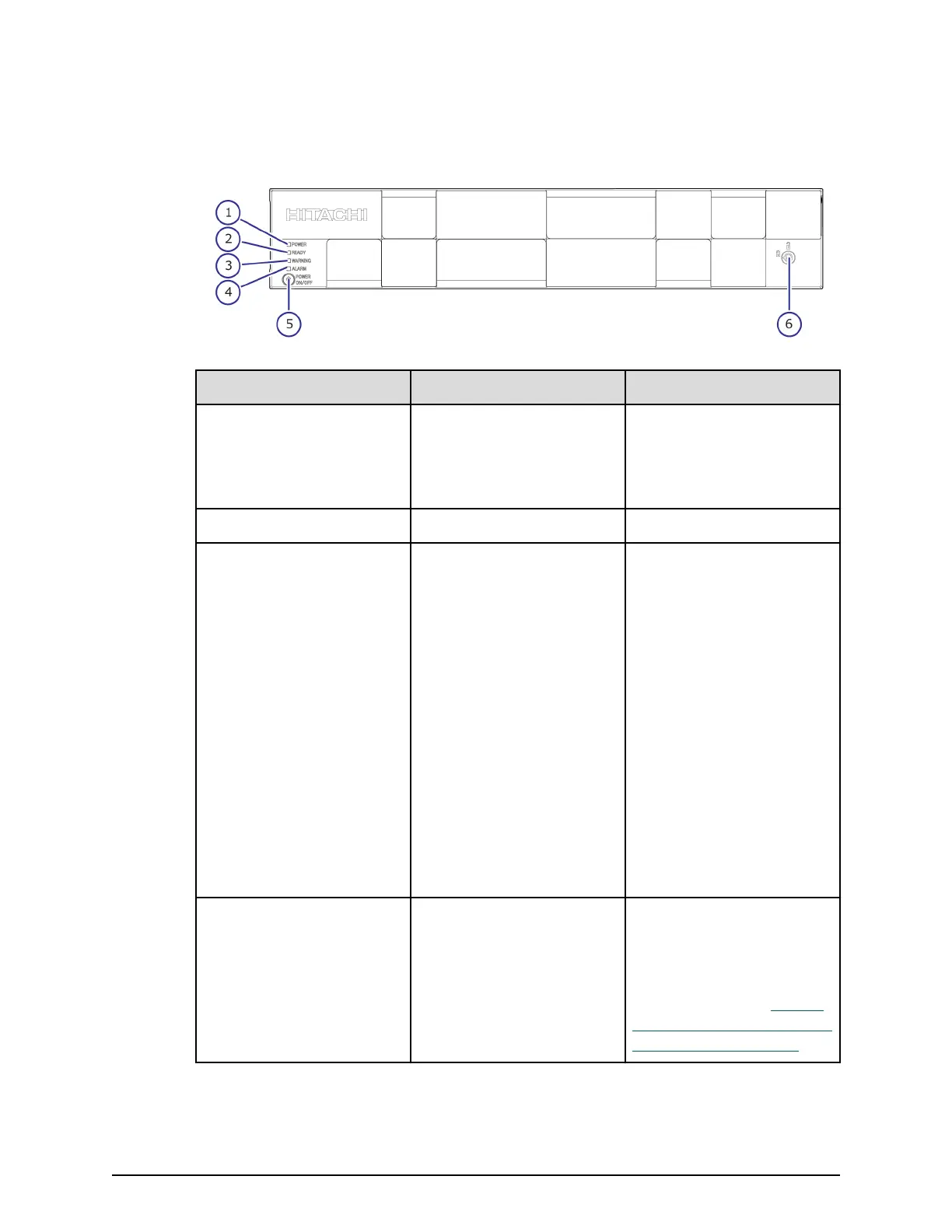

CBSS controller chassis with front panel bezel
The following table lists the denitions of the CBSS controller chassis front panel bezel
LEDs.
Number Item Description
1 POWER LED Green: Storage system is
powered on.
Amber: Storage system is
receiving power.
2 READY LED Green: Normal operation
3 WARNING LED O: Normal operation.
Amber: Component
requires maintenance.
Blink: Failure requires
maintenance.
Note: When System Option
Mode 1097 is set to ON,
the WARNING LED does not
blink, even if the following
failure service information
messages (SIM) are issued:
452xxx, 462xxx, 3077xx,
4100xx, and 410100.
LED might turn o during
user maintenance.
4 ALARM LED O: Normal operation.
Red: Processor failure
(system might be down).
For assistance, contact
customer support: https://
support.hitachivantara.com
/en_us/contact-us.html.
CBSS controller chassis with front panel bezel
Chapter 2: System controllers
Hitachi Virtual Storage Platform F350, F370 Hardware Reference Guide 14
