Chapter 3: Drive trays
The drive tray contains data drives, power supplies, fans, and status LEDs. Each drive tray
provides interfaces for connecting to controllers and other drive trays. The all-ash
storage arrays have various xed storage capacity congurations with ash storage
devices. To deliver consistent low latency host response times and highest IOP
performance across all host connection ports, conventional hard disk drives (HDD) are
not included or congurable with all-ash arrays.
Small form-factor drive tray (DBS/DBSE)
The following describes the physical specications of the small form-factor drive tray.
Name Model name Height
Number of
drive slots Drive type
DBS DW-F800-DBSC 2U (88.2 mm) 24 2.5 inch (SFF)
DBSE DW-F800-DBSE 2U (88.2 mm) 24 2.5 inch (SFF)

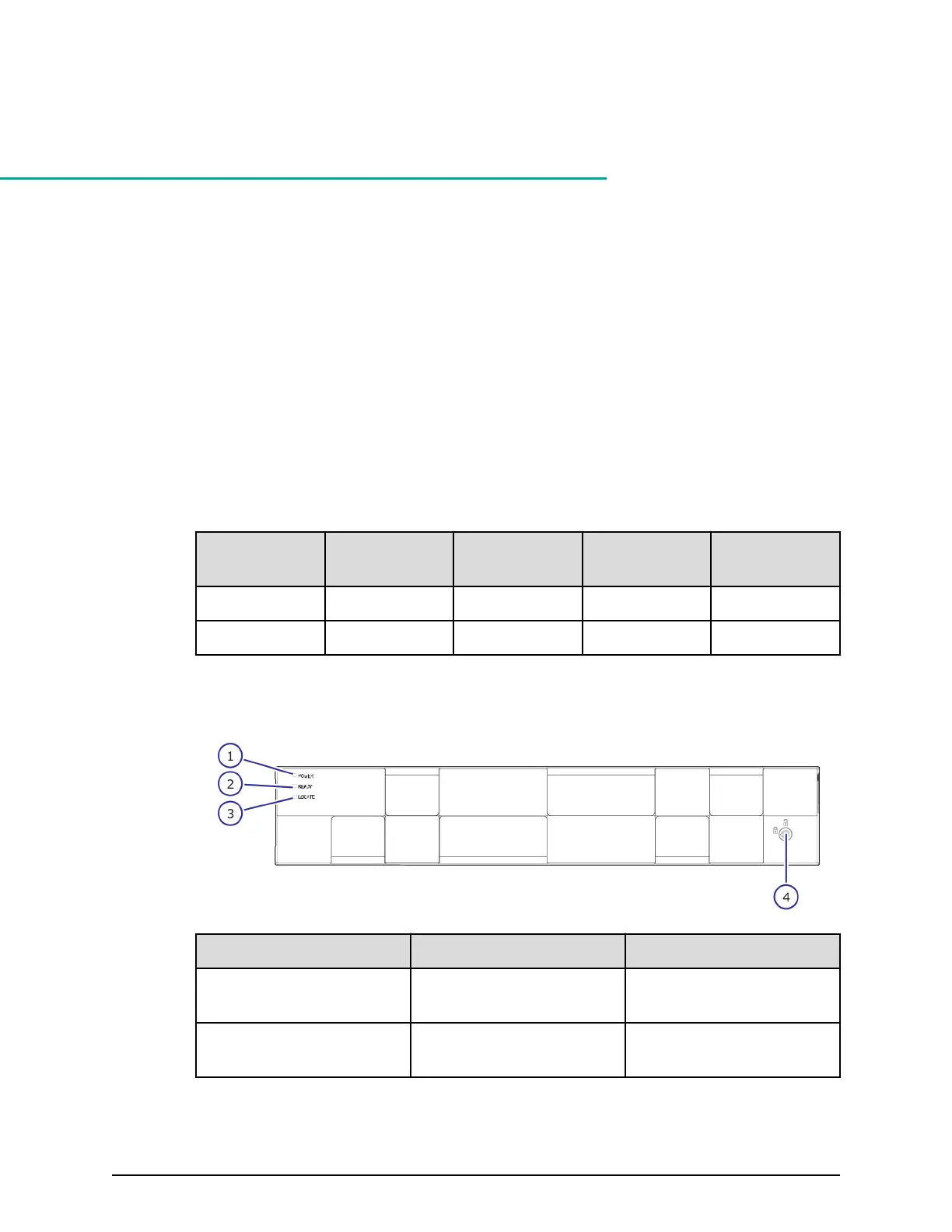

SFF with front panel bezel
Number Item Description
1 POWER LED Green: Drive tray is
powered on.
2 READY LED Green: Drive tray is
operational.
