- 6 -

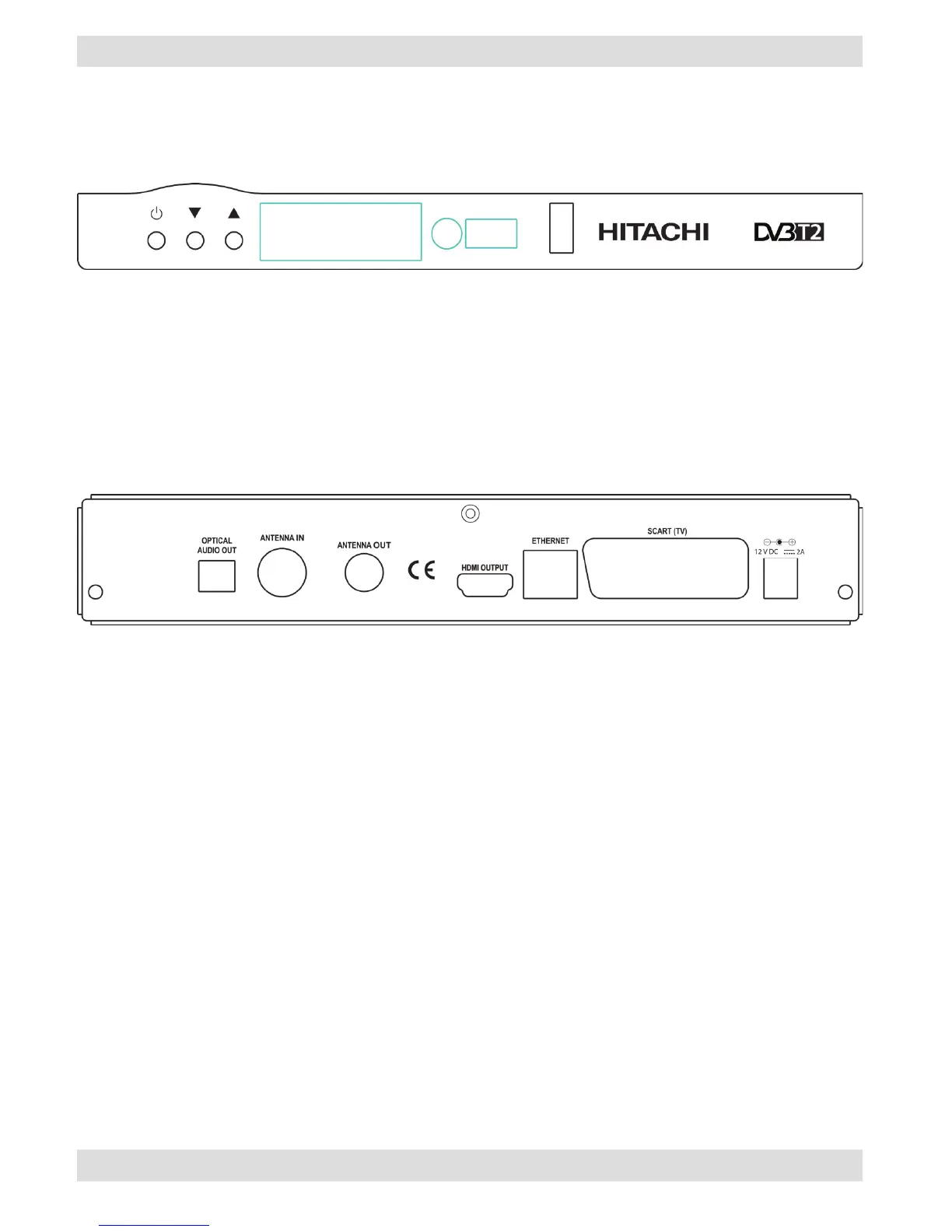

Connections on the Set Top Box
1. OPTICAL AUDIO OUT: You can use this connector to output the digital audio to an external device.
See your audio system instruction book for further information.
2. ANTENNA IN: Aerial input
3. ANTENNA OUT: To watch channels on the TV
4. HDMI IN: HDMI connection
5. LAN: Ethernet Input
6. SCART OUT: If your TV has a scart connector, you can connect the box to your TV using a scart cable
7. POWER CABLE : DC IN (12V)
Make sure that you connect all cables and connections before you plug the unit into the mains supply. After you
connect the unit to the mains supply, the LED light located on the front panel will be red (Standby mode).
For any help concerning set up and use of your STB please call the Customer Helpline: 0845 604 0105
