Hitachi L200 Series Quick Reference Guide

2

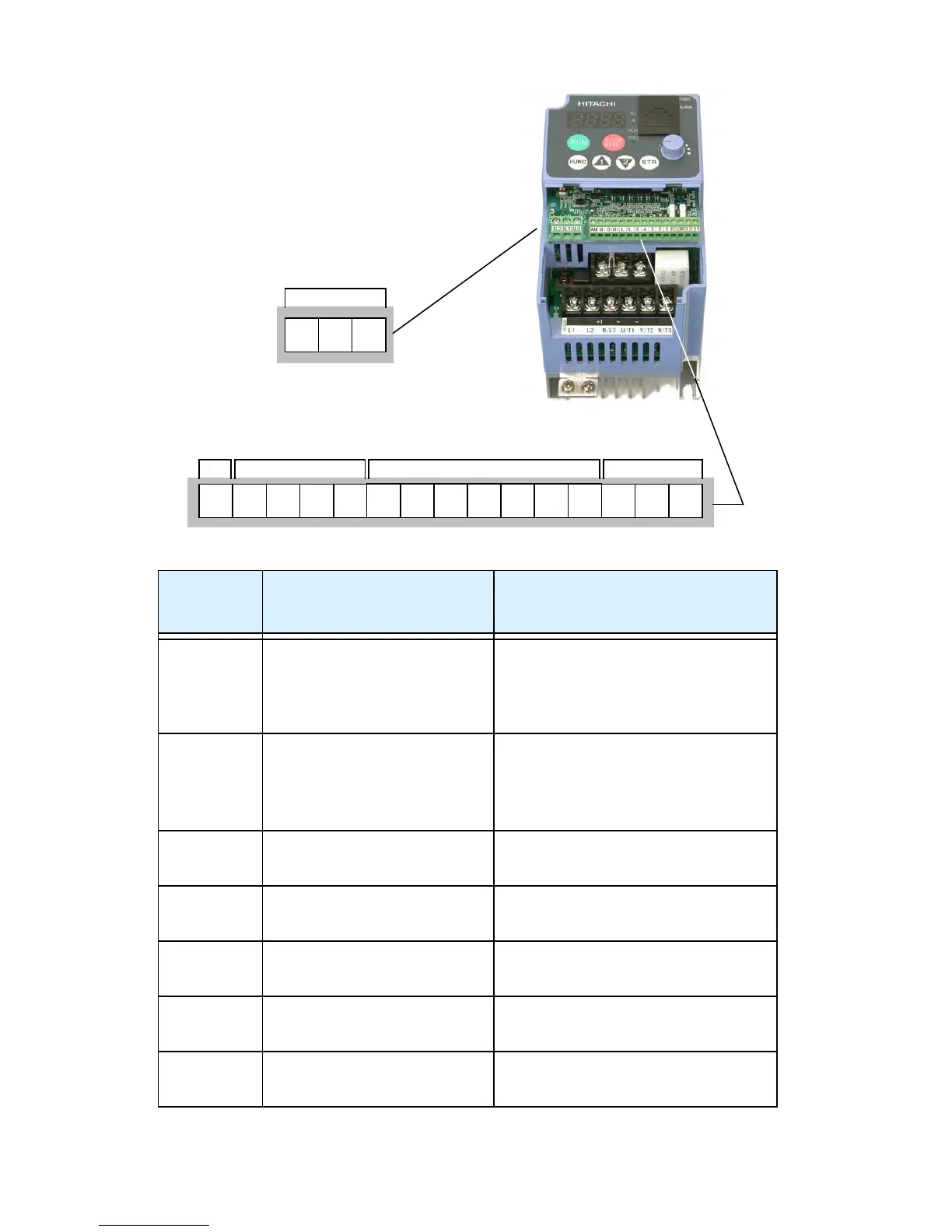

Control Circuit Terminals
Termina l
Name
Description Ratings and Notes
PCS +24V for logic inputs 24VDC supply, 30 mA max.
(Notes: Do not use for network
power
Do not short to terminal L)
1, 2, 3, 4,
5
Intelligent (program-
mable) discrete logic
inputs
27VDC max. (use P24 or an
external supply referenced to
terminal L), 4.7kΩ input
impedance
L (right) GND for logic inputs Sum of input 1 to 5 currents
(Note: Do not ground)
11, 12 Discrete logic outputs 50 mA max. ON current,
27 VDC max. OFF voltage
CM2 GND for logic outputs 100 mA max for sum of
terminals 11 and 12 currents
AM Analog voltage output 0 to 10VDC, 1 mA max., 50%
duty cycle
L (left) GND for analog signals Sum of OI, O, H, and AM
currents (return)
H O OI
PCS L
Analog
inputs
Analog
output
Alarm relay
Logic
outputs
Logic inputs
L
5 4 3 2 1
CM2 12 11
AL2 AL1 AL0
AM

Hitachi L200 Series Specifications

General

Output Frequency	0.1-400Hz
Communication	RS-485 (Modbus RTU)
Frequency Range	0.1-400Hz
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Input Voltage	200-240V
Control Method	V/f control, Sensorless vector control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Output Voltage	3-phase, 0 to input voltage
Cooling Method	Forced air cooling
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000m without derating
Braking Unit	Built-in braking transistor (for models up to 7.5kW), External braking resistor can be connected
