CE–EMC Installation Guidelines
Appendix D
D–4
Some L2002 inverters designed for use in Europe (–xxxLFEF/xxxHFEF models) have
built-in line filters. Inverter models –xxxLFE/xxxHFE do not have built-in line filters. In
the event your application needs additional filtering, the following diagrams show
control panel mounting and wiring examples for different filter types.
L1 L2L3 PE M
3~

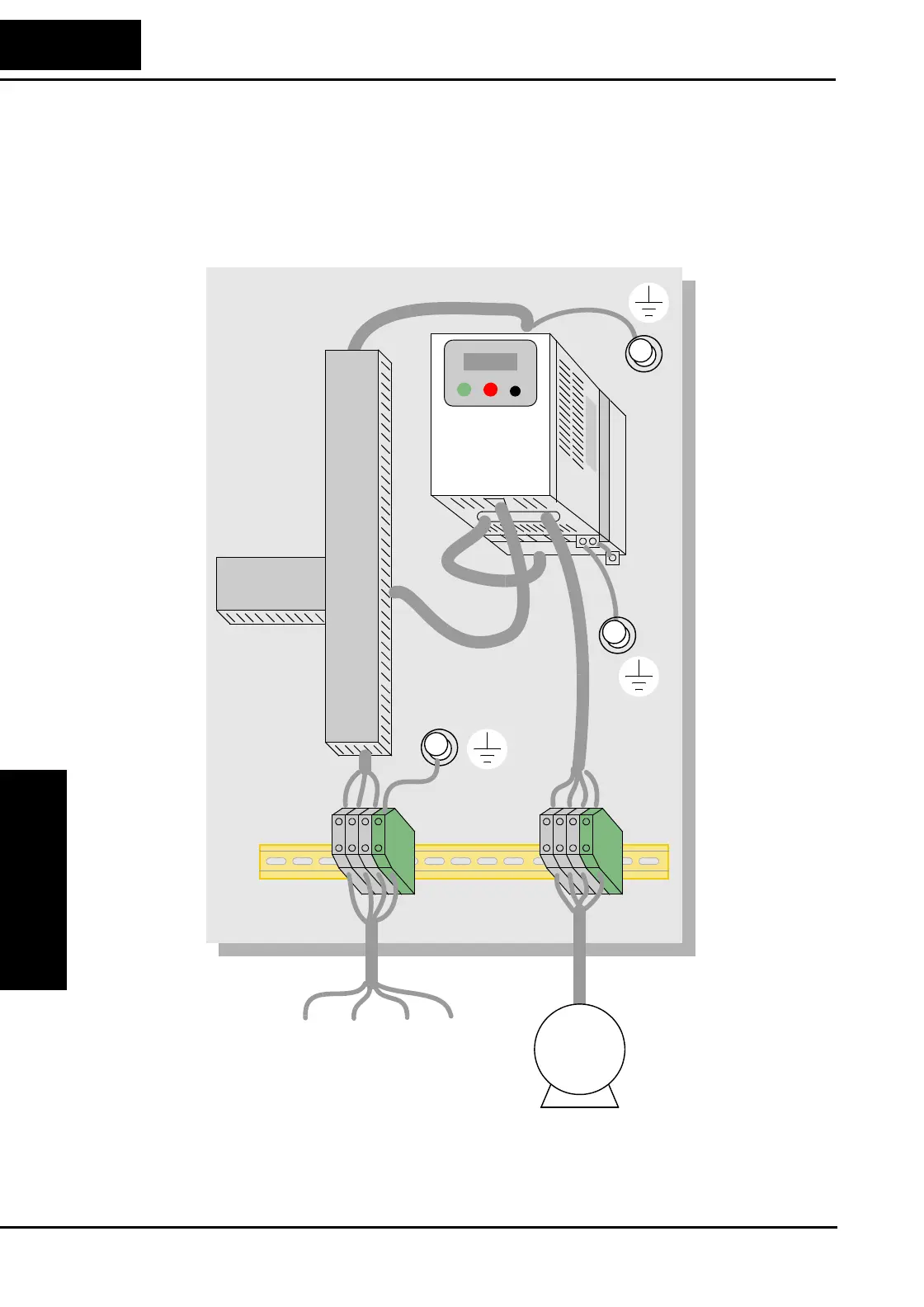

L2002 inverter with footprint-type filter
