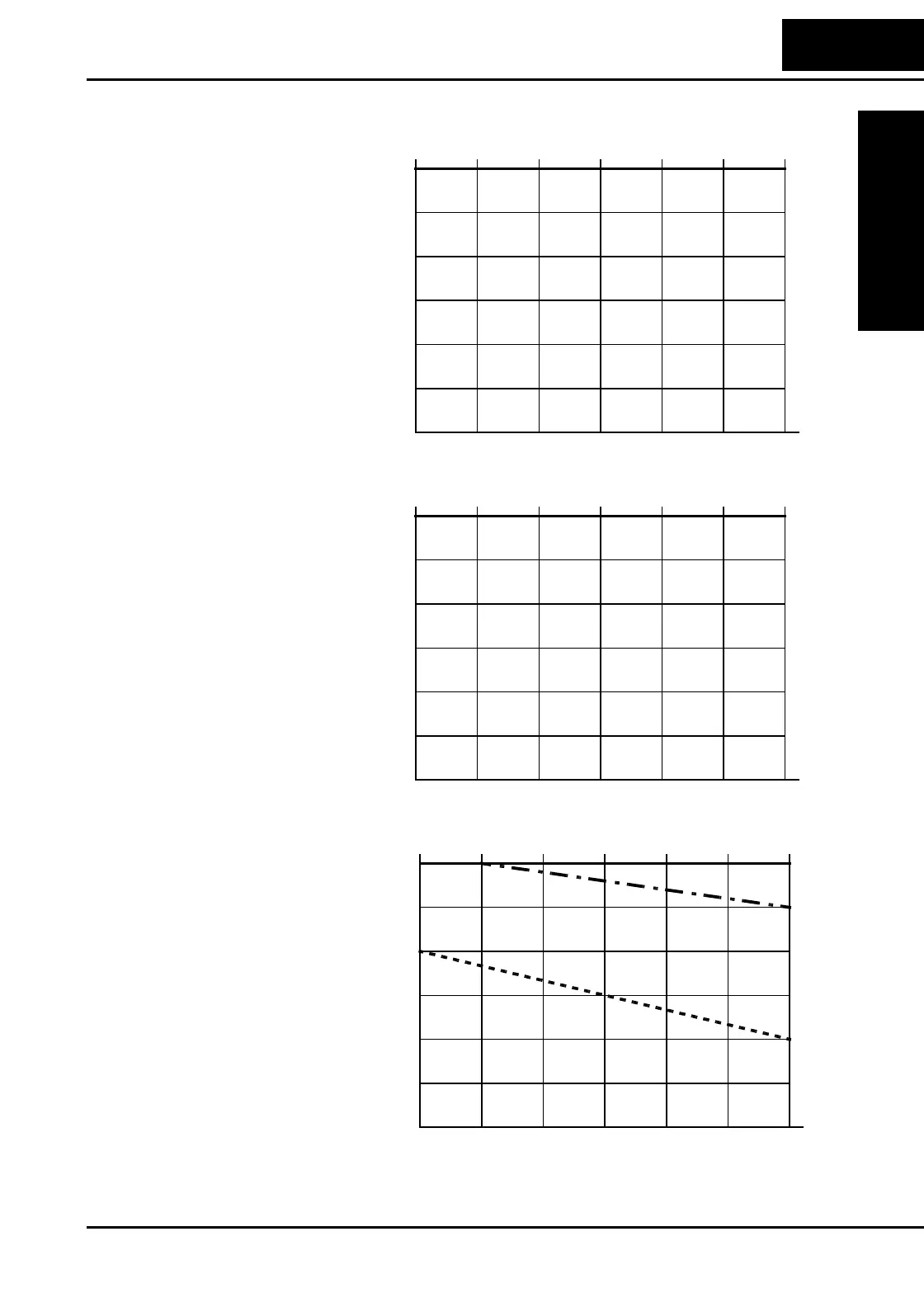

Derating curves:
2468101214
70%
80%
90%
100%
95%
85%
75%
% of rated
output current
Carrier frequency
kHz
L200–002NFE(F)2/NFU2
2468101214
70%
80%
90%
100%
95%
85%
75%
% of rated
output current
Carrier frequency
kHz
L200–004NFE(F)2/
NFU2, –005NFE(F)2
2468101214
40%
60%
80%
100%
90%
70%
50%
% of rated
output current
Carrier frequency
kHz
L200–007NFE(F)2/
NFU2, –011NFE(F)2
