Inverter Mounting
and Installation
2–15

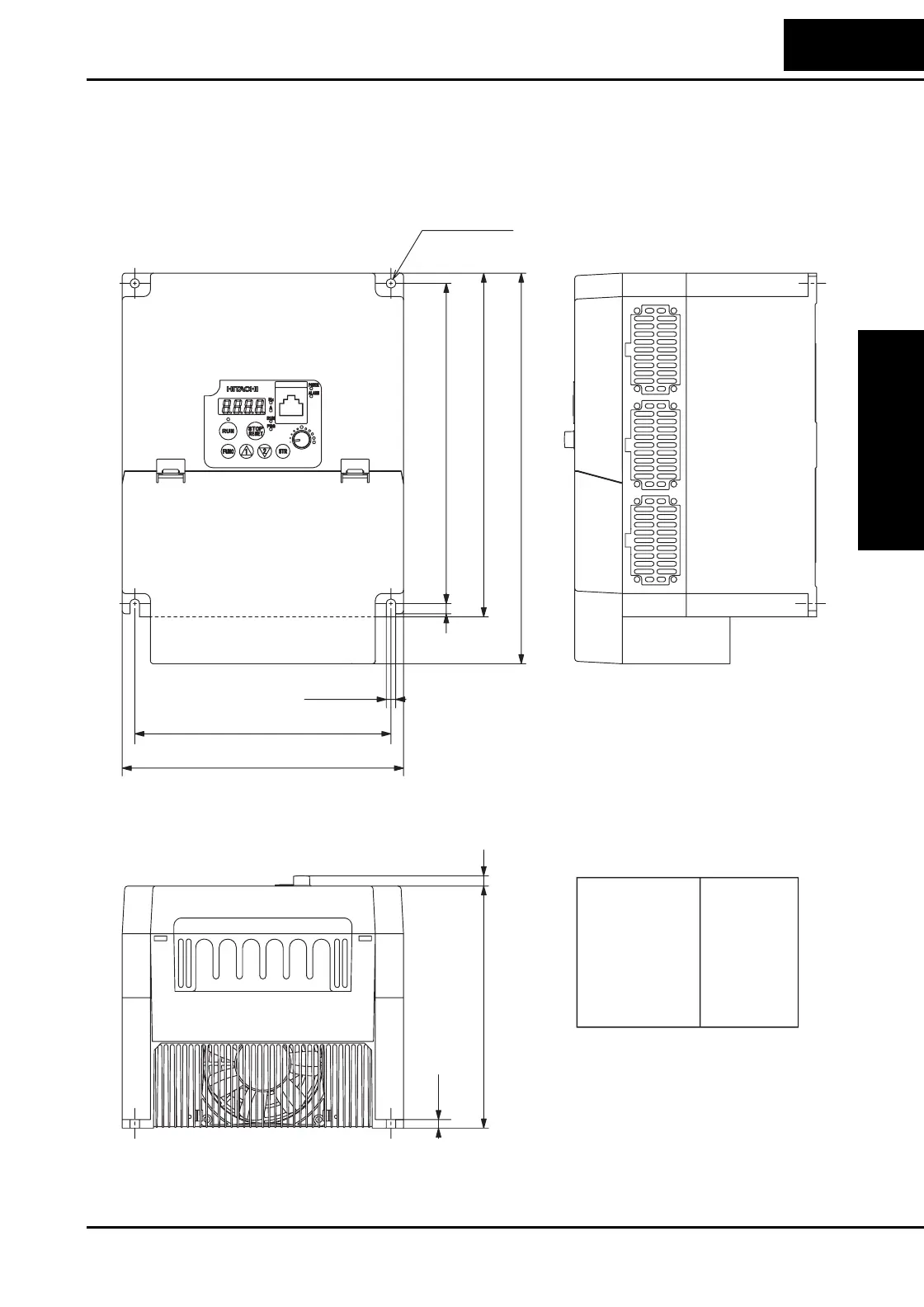

Dimensional drawings, continued...
2-φ5(0.20)
205(8.07) H=220(8.66) H=250(9.84)
205(8.07)
205(8.07)
205(8.07)
205(8.07)
250(9.84)
250(9.84)
-055LFU2
-055HFU2
-075LFU2
-075HFU2
-055HFEF2
-075HFEF2
HModel
164(6.46)
180(7.09)
7(0.16)
6.5(0.25)
6(0.24)
5.5(0.22)
155(6.10)
6(0.24)
L200–055LFU2, –055HFU2, –075LFU2, -075HFU2, –055HFEF2, -075HFEF2
