Trip History and Programming Error Monitoring

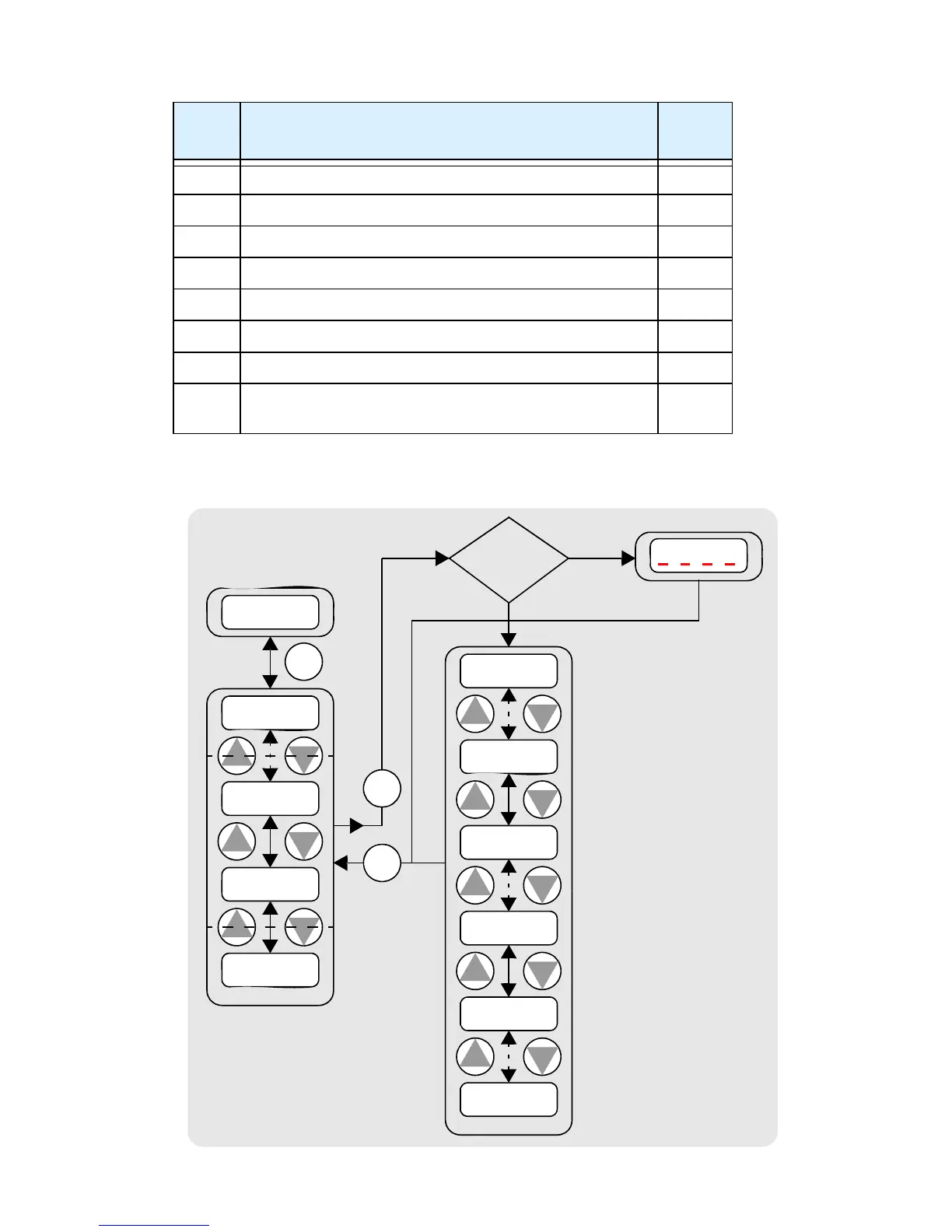

Trip History Navigation Map
Func.
Code
Name / Description Units
D080 Trip count – cumulative number of trip events Events
D081 Trip history – event 1 (newest) — see map below
D082 Trip history – event 2 (2nd newest) — see map below
D083 Trip history – event 3 (3rd newest) — see map below
D084 Trip history – event 4 (4th newest) — see map below
D085 Trip history – event 5 (5th newest) — see map below
D086 Trip history – event 6 (6th newest) — see map below
D090 Programming error monitor, code displayed
(see page 35 for an error code listing)
E07.2
60.00
1
2
4.0 0
270.0
1
2
15
18
1
2
1
2
1
2
d
090
d
086
1
2
0.0 0
Display data
Monitor Mode
1
2
1
2
d
001
d
081
Error
exists?
No
Error code
Output frequency
at trip point
Motor current
at trip point
DC bus voltage
at trip point
Cumulative
inverter operation
time at trip point
Cumulative
power-ON time at
trip point
Ye s
No error
FUNC.
FUNC.
FUNC.
