Hitachi L300P Series Instruction Manual Supplement

L300P Supplement Explanation of functions

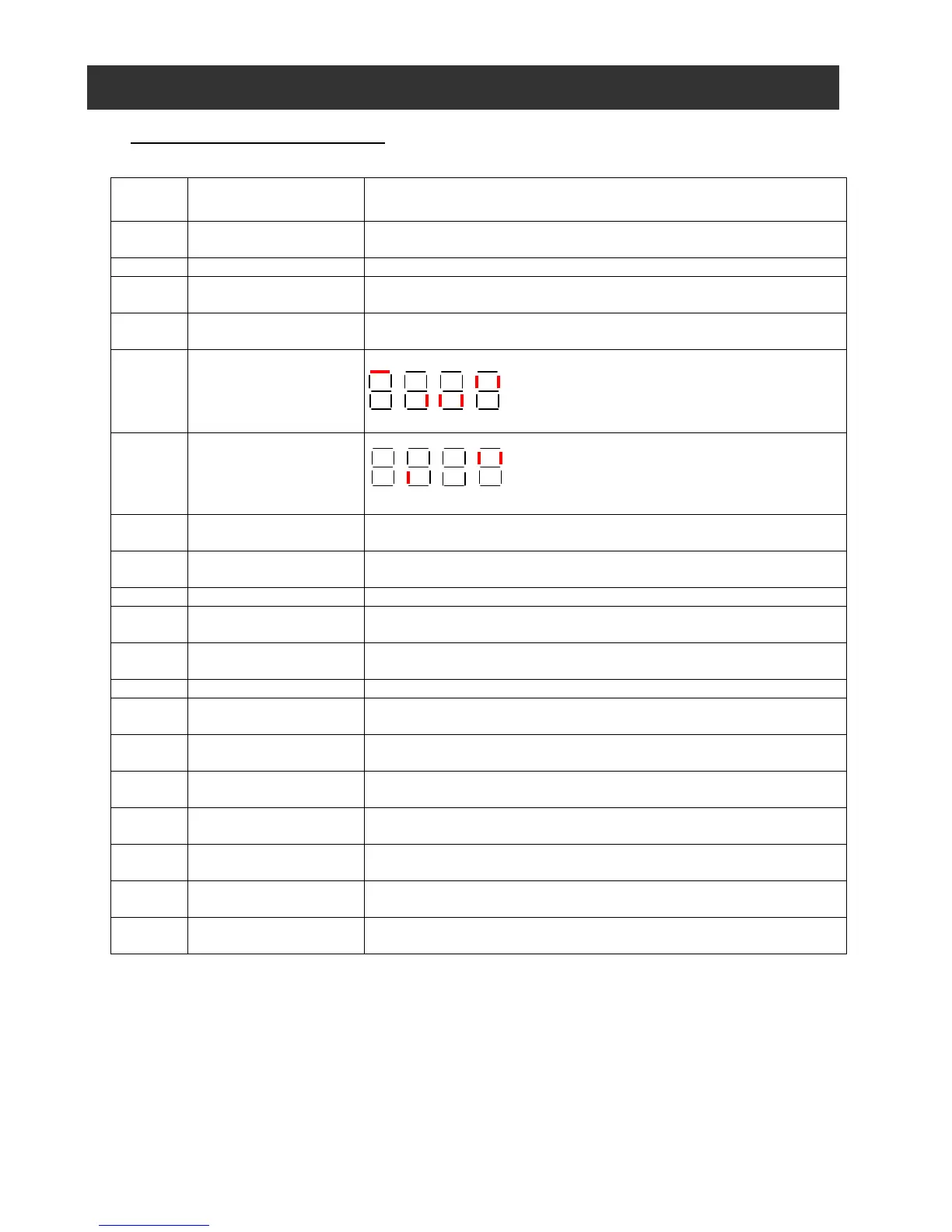

2. Function Parameter list
Monitor mode
Display
code
Function name
Monitor or Data Range
(digital operator)
d001
Output Frequency
Monitor
0.00-99.99/100.0-400.0 (Hz)
d002 Output Current Monitor 0.0-999.9 (A)
d003
Rotation Direction
Monitor
F(forward)/o(stop)/r(reverse)
d004
Process Variable (PV)
PID Feedback Monitor
0.00-99.99/100.0-999.9/1000. -9999. /
1000-9999/{100-{999 (10000-99900)
d005 Input Terminal Status
d006
Intelligent Output
Terminal Status
d007
Scaled Output
Frequency Monitor
0.00-99.99/100.0-999.9/1000. -9999. /
1000-3996
d013
Output Voltage
Monitor
0.0-600.0 (V)
d014 Input Power monitor 0.0-999.9 (kW)
d016
Cumulative operation
RUN time monitor
0.-9999./1000-9999/{100-{999 (hr)
d017
Cumulative Power ON
Time Monitor
0.-9999./1000-9999/{100-{999 (hr)
d080 Trip Counter 0.-9999./1000-6553(10000-65530) (time)
d081 Trip monitor 1
Factor, frequency (Hz), current (A), voltage (V), RUN time (hr),
power ON time (hr)
d082 Trip monitor 2
Factor, frequency (Hz), current (A), voltage (V), RUN time (hr),
power ON time (hr)
d083 Trip monitor 3
Factor, frequency (Hz), current (A), voltage (V), RUN time (hr),
power ON time (hr)
d084 Trip monitor 4
Factor, frequency (Hz), current (A), voltage (V), RUN time (hr),
power ON time (hr)
d085 Trip monitor 5
Factor, frequency (Hz), current (A), voltage (V), RUN time (hr),
power ON time (hr)
d086 Trip monitor 6
Factor, frequency (Hz), current (A), voltage (V), RUN time (hr),
power ON time (hr)
d090
Programming Error
Monitor
Warning code
ON
OFF
FW
5 4 3 2 1
ON
OFF
12 11
A
L
3
