--- 9 ---
The <Bold> numbers in the figure below correspond to the numbers in "8-3. Operation Principle".

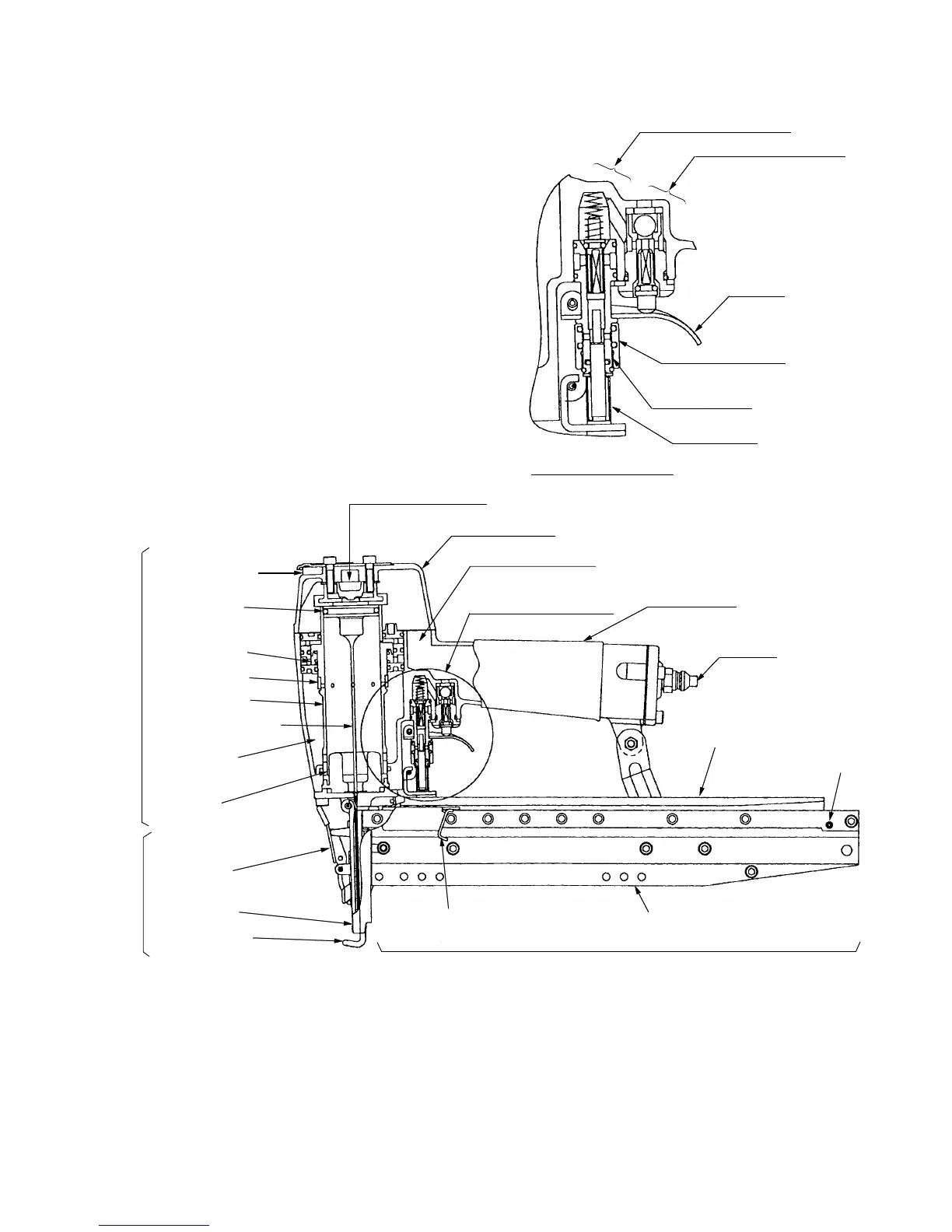

Fig. 3 Construction
Exhaust Vent < 3 >
Return Air
Chamger < 8 >
Driver Blade < 7 >
Cylinder Spring < 5 >
Piston < 4 >
Piston
Bumper < 9 >
Lock lever
Guide plate
Pushing lever
Control valve section
Exhaust cover
Accumulator <1>
Air inlet
Magazine cover
Roll Pin D3 x 16
Magazine assembly
Nail feeder
Magazine section
Grip rubber
Driving section
Output section
Exhaust Valve < 2 >
Trigger
Safety valve portion
Trigger valve portion
Switching device
(Valve sleeve (A))
Valve bushing
Plunger (B)
Control valve section
Cylinder Ring
Cylinder < 6 >
Nose ass'y
