The [Bold] numbers in the figure below correspond to the numbers in "8-2. Operation Principle".

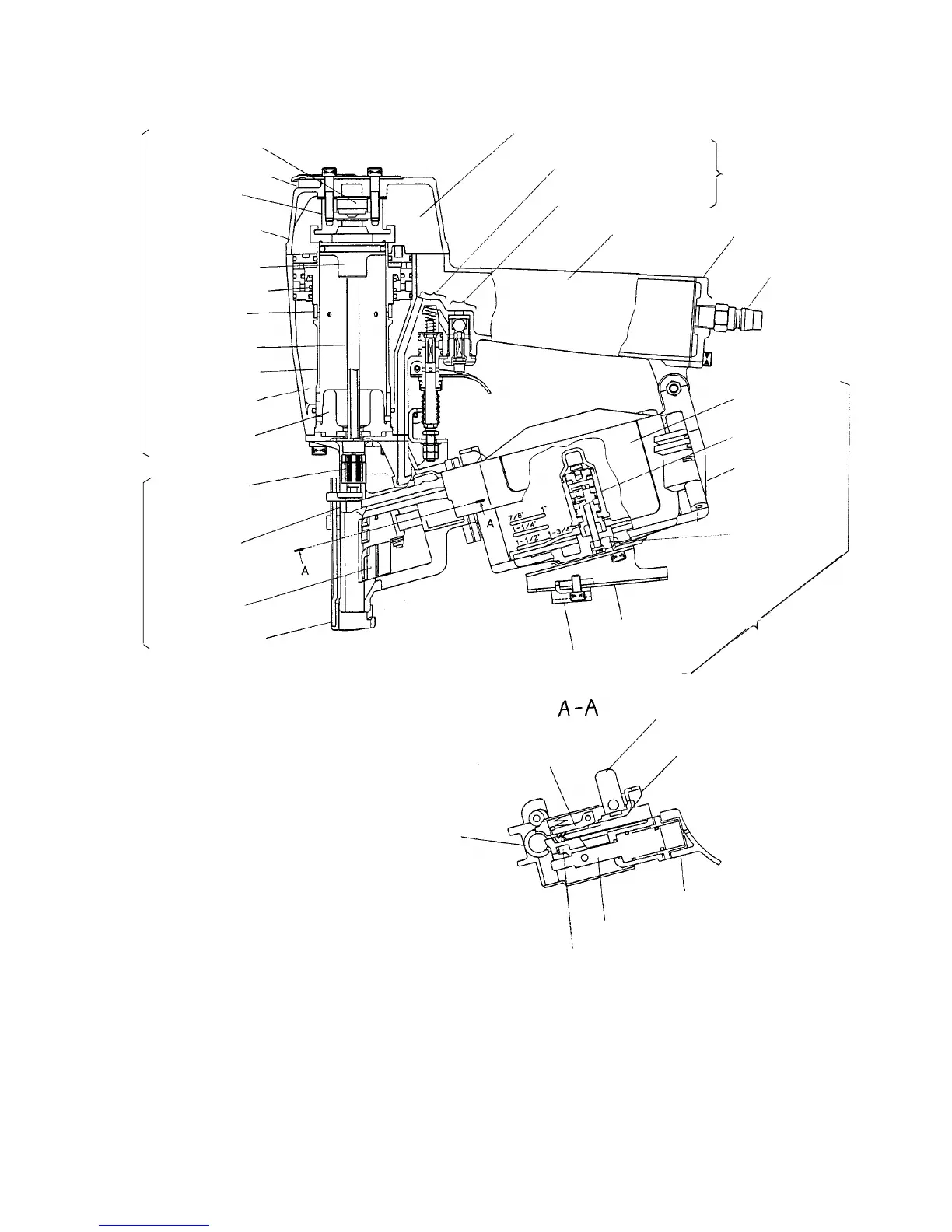

Fig. 3 Construction
Exhaust Valve [4]
Piston [3]
Exhaust cover
Head cap
Exhaust Vent [5]
Cylinder Spring [8]
Driver Blade [9]
Adjuster
Nose
Cap
Control valve
section
Body
Trigger valve portion
Magazine
Nail holder
Magazine
Guard
Shingle guide
Magazine
section
Safety valve portion
Driving section Output section
Accumulator [1]
Cylinder ring
Guide base
Air inlet
Magazine cover
Feeder
Magazine
Feed piston
Nose
Main nail stopper
Guide lock
Nail guide
Cylinder [2]
Return Air
Chamber [6]
Piston Bumper [7]
Pushing lever
Feeder
