Hitachi NV 45AB2 - Page 31

--- 28 ---

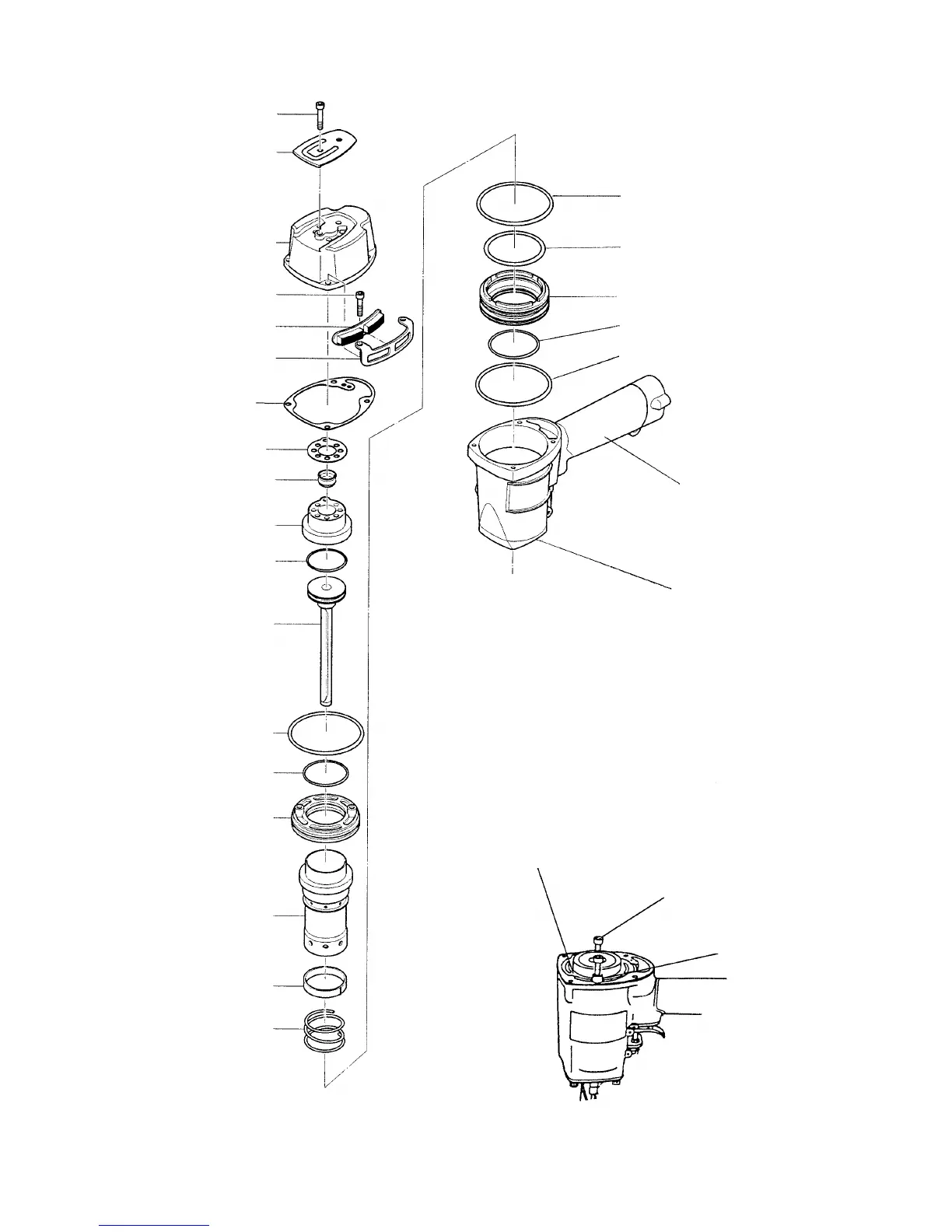

Fig. 12
Head Cap [11]
Exhaust Cover (B) [4]
Hex. Socket Hd.
Bolt M5 x 20 [5]
Top Cover [2]
Hex. Socket Hd.
Bolt M5 x 25 [1]
Exhaust Valve [10]
Gasket (G) [9]
Gasket (F) [8]
Fig. 13
Cylinder Spring [19]
Cylinder O-Ring (D) [15]
O-Ring (S-65) [14]
Piston (H) [13]
Piston O-Ring [12]
Cylinder Ring [18]
Cylinder [17]
Cylinder Plate [16]
Body Ass'y [24]
(including the Grip Rubber [41])
Cylinder Guide [21]
Cylinder O-Ring (A) [20]
O-Ring (S-65) [14]
Grip Rubber [41]
O-Ring (S-65) [14]
Cylinder O-Ring (B) [22]
Threaded hole
for M5 bolts
Hex. Socket Hd. Bolt M5 x 20 [5]
Cylinder Plate [16]
Protector [6]
Body Guard [7]
