Hitachi P42A01 Service Manual

B1-3

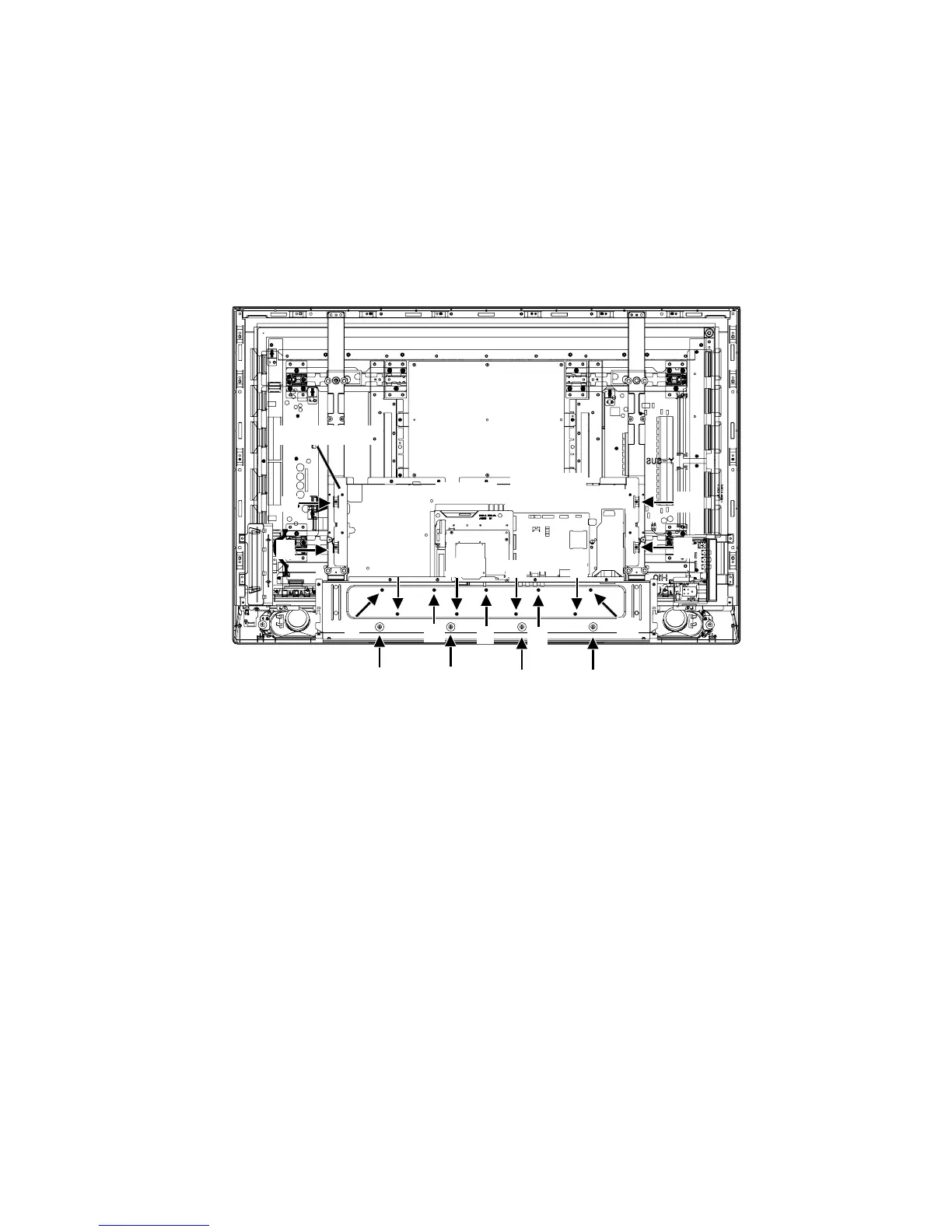

DISASSEMBLY INSTRUCTIONS
Disconnect the following connectors.
AV PCB: CP300, CP301, CP3801, CP3802, CP3808, CP3809, CP4400
Scaler PCB: CP3906, CP3909, CP7200.
Filter PCB: CP501, CD510.
Remove the 4 screws (1).
Remove the 9 screws (2).
Remove the 4 screws (3).
Remove the Chassis Ass'y.
1-3: CHASSIS BLOCK
1.
2.
3.
4.
5.
Chassis Ass'y
Filter PCB
AV PCB
(1)
(1)
(1)
(1)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(3)
(3)
(3)
(3)
(2)
Scaler PCB
