Hitachi P42A01 Service Manual

B1-4
DISASSEMBLY INSTRUCTIONS

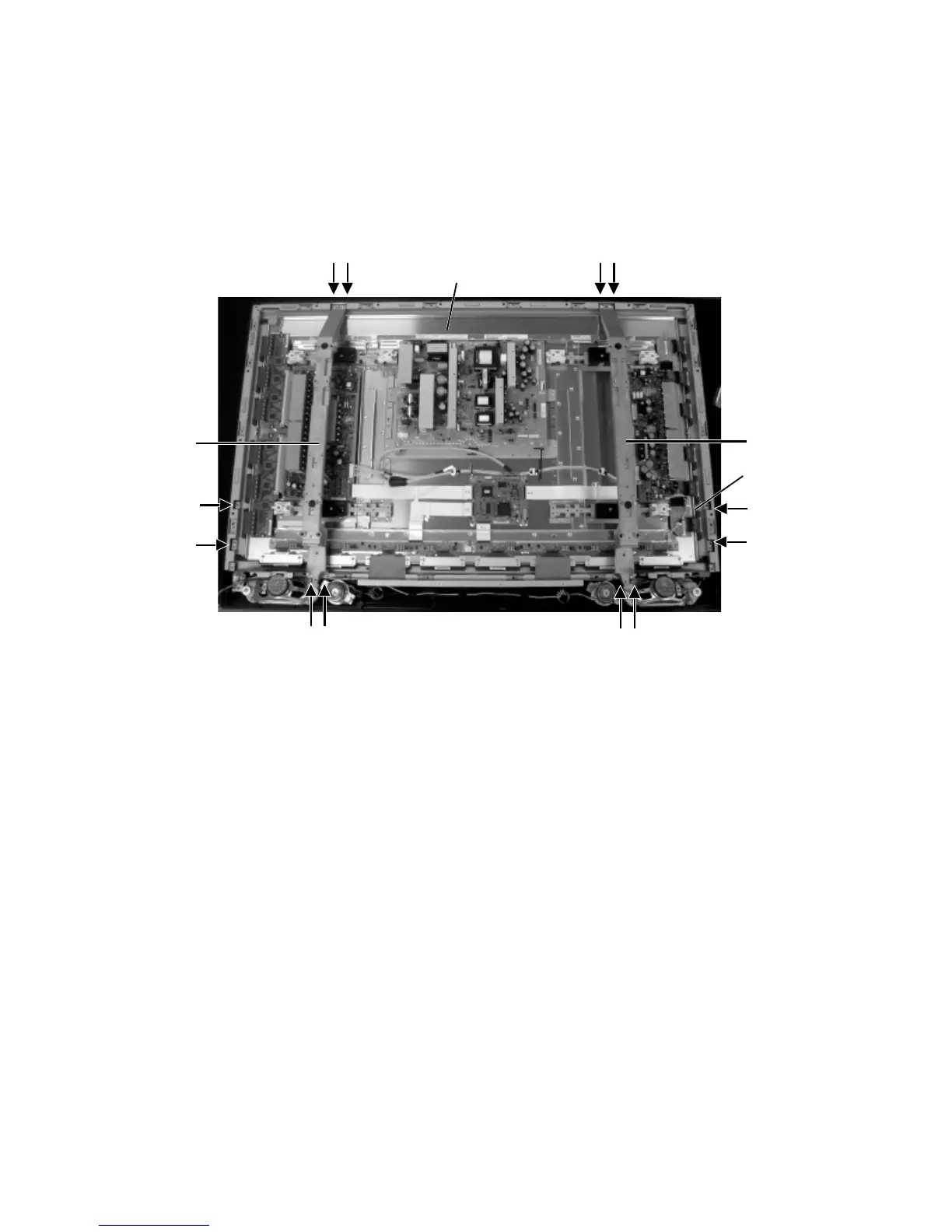

Remove the 8 screws (1).
Remove the 4 screws (2).
Remove the Side Jack.
Hold the Frame Main carefully and remove the PDP Module.
1-4: PDP MODULE
1.
2.
3.
4.
PDP Module
Frame Main
Frame Main
Side Jack
(1) (1)
(1)
(1)
(1)
(1)
(1) (1)
(2)
(2)
(2)
(2)
