Hitachi P50T01EA - Component Names; Main Unit

10

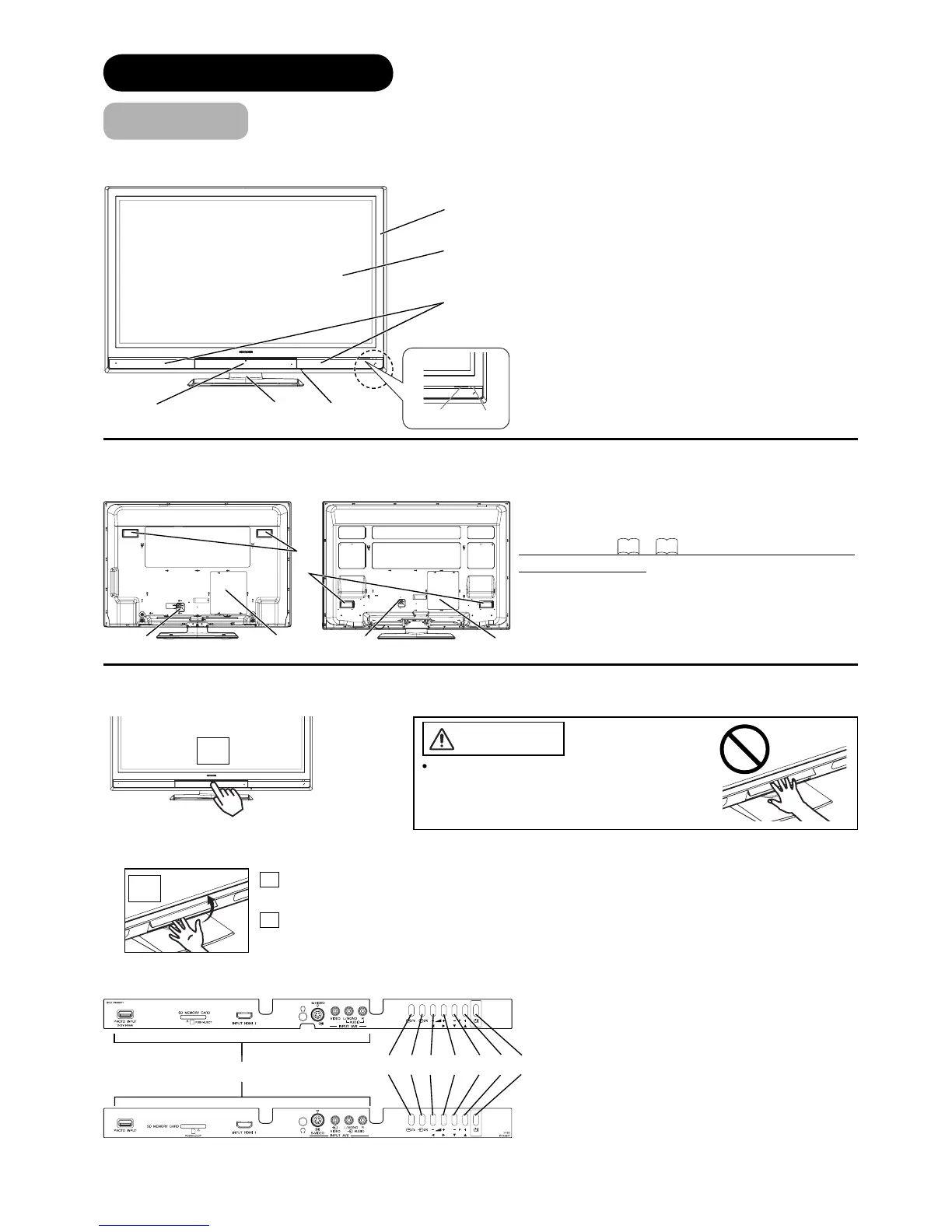

COMPONENT NAMES
Main Unit
Front Panel
Rear Panel
42” models
Control Panel (including front input)
1 Front Input
2 Menu/Return button
3 Input Select/OK button
4 Volume Down/Żbutton
5 Volume Up/Źbutton
6 Channel Down/źbutton
7 Channel Up/Ÿbutton
8 Sub Power button
1 Cabinet
2 Panel
3 Remote Control Receiver
4 Indicating Lamp
5 Main Power Switch (on the bottom surface)
6 Control Panel and Front Input (see below for
details)
7 Desktop Stand
8 Speaker
1 Terminal Board (External Device Connection)
2 Power Cord Socket
3 Handgrips
Please refer to
14
~
20
for the detailed information
for the connections.
CAUTION
Do not place your fi ngers into the gap at
the opened door. If your fi ngers are caught
in the front door, you may be injured.
A Push the bottom center of
the front door to unlock.
B Lift it up from the
underside of the door.
Push here to open the door.
B
A
1
2
56
8
7
43
1
2
1
2
3
50” models
1
2 3 4 5 6 7 8
42” models
50” models
